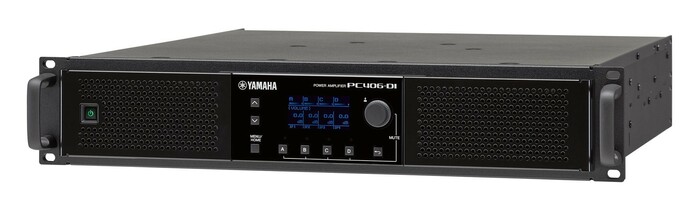

Yamaha PC406-DI

The unrivaled combination of power, flexibility, and signature Yamaha audio quality make the PC406DI an ideal choice for any multi-zone installed audio or live sound application. As the beating heart of your system, the PC406DI delivers 600 watts @ 8 ohms across four speakers and features sixteen channels of Dante I/O for the distribution of pristine 32-bit/96kHz audio across your network. The DI version is also comfortable with driving 70 or 100V distriuted lines, making it an attractive choice for new and retrofit applications. Powerful onboard DSP includes a sixteen-band parametric EQ, crossovers, filters, delay, and limiting, allowing you to create the soundscape for any application. Plus, the PC406DI comes with Yamaha speaker presets to get you up and running in no time. The amp is compatible with the ProVisionaire series control and monitoring software (sold separately) which affords complete control over an entire networked system that includes mixers, amplifiers, processors, and speakers (all sold separately).

Yamaha PC406-DI Includes:

• Owner's Manual x 1
• Power Cable (2.0m) x 1
• GPIO Mini Euroblock plug 3.5mm 8p x 2
• Audio Input Euroblock plug 5.08mm 3p x 4
• Cable tie x 4
• Speaker Euroblock plug 7.62mm 8p x 1
• Air filter (L x 1, R x 1)
• Grill (L x 1, R x 1)
• Handle x 2
• Screw x 4

Yamaha PC406-DI Features:

• 4 x 600W at 8Ω, 4 x 600W at 100V/70V
• 20 x 8 powerful input matrix function
• Sampling frequency is up to 96k
• 16ch Dante input/output
• Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
• Yamaha speaker presets
• Remote control via ProVisionaire Touch/Control

Yamaha PC406-DI Specifications:

• Output Power; 1kHz, Non-clip, 20msec Burst, All channels driven
  • 16Ω: 300W x 4
  • 8Ω: 600W x 4
  • 4Ω: 900W x 4
  • 2Ω: 1300W x 4
  • 8Ω (BRIDGE mode): 1800W x 2
  • 4Ω (BRIDGE mode): 2600W x 2
  • Hi-Z (70V mode): 600W x 4
  • Hi-Z (100V mode): 600W x 4
• Amplifier class: Class D, Single ended output
• Total harmonic distortion: 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven), 0.01% (100V/70V, 1kHz, 10W, All channels driven), 0.1% (100V/70V, 1kHz, Half power, All channels driven)
• Frequency response: +0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru)
• Crosstalk: ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)
• S/N ratio: 109dB (8Ω, Gain setting = 32dB, A-weighted)
• Voltage Gain/Sensitivity32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu)
• 8Ω Volume max: 32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu)
• Hi-Z 100V mode, Volume max: 32.0dB/+10.2dBu (Gain setting: 32dB), 26.0dB/+16.2dBu (Gain setting: 26dB), 38.2dB/+4.0dBu (Gain setting: +4dBu), 28.2dB/+14.0dBu (Gain setting: +14.0dBu)
• Hi-Z 70V mode, Volume max: 32.0dB/+7.2dBu (Gain setting: 32dB), 26.0dB/+13.2dBu (Gain setting: 26dB), 35.2dB/+4.0dBu (Gain setting: +4dBu), 25.2dB/+14.0dBu (Gain setting: +14.0dBu)
• Protection circuit
  • Load protection: POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically)
  • Amplifier protection: Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically)
  • Power supply protection: Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown
• Cooling: 7 step variable speed fan x 3, front to rear airflow
• Maximum input voltage: +28dBu
• Input impedance: 20kΩ (balanced)
• Sampling frequency rate: 96kHz
• A/D D/A Converters: AD: 24-bit linear; DA: 24-bit linear
• Dante Interface
  • Channel count: 16 IN with Dante Redundancy, 16 OUT
  • Sampling frequency: 96/88.2/48/44.1kHz
  • Dante latency: 0.25/0.5/1/2/5ms
  • Bit depth: 32/24bit
• Processors: 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter
• Latency: Analog Input to Speakers: 1.5msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.8msec (fs=96kHz), 1.9msec (fs=88.2kHz), 2.5msec (fs=48kHz), 2.7msec (fs=44.1kHz)

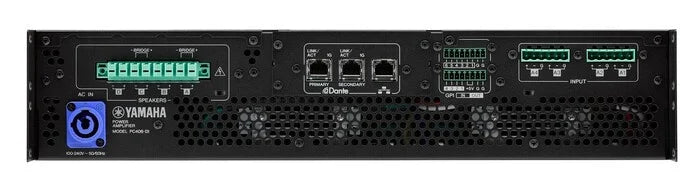

• I/O Connectors
  • Analog Input: Euro block 6pin x 2 (4ch balanced input)
  • Digital I/O: Dante Interface: RJ45 x 2 (Redundant/Daisy Chain)
  • Speaker Output: 7.62mm Euro block 8pin x 1
  • Control ports: RJ45 x 1
  • AC: AC inlet (powerCON 20A) x 1
  • Others: Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)
• Indicators: Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED)
• Power requirements: 100V - 240V 50Hz/60Hz **
• Power consumption: 1100W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 100W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V)
• Operating temperature: 0°C to +40°C
• Storage temperature: -20°C to +60°C
• Dimensions
  • W: 480mm (18.90 inch)
  • H: 88mm (3.46 inch): 2U
  • D: 528mm (20.79 inch)
  • Net weight: 15.9 kg (35.1 lbs)
