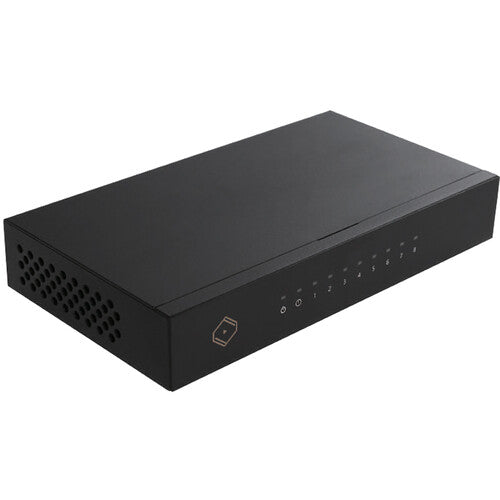

• Silent Angel Bonn N8 8-Port Network Switch- front view

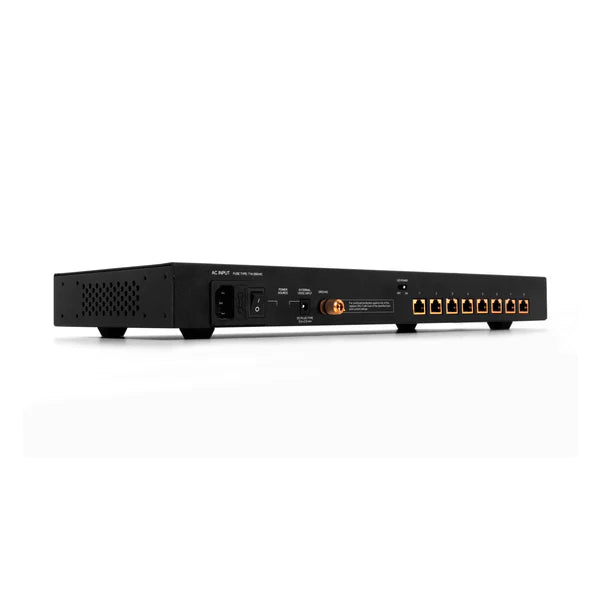

  • Silent Angel Bonn N8 8-Port Network Switch- rear view
1 3

Silent Angel Bonn N8 8-Port Network Switch

PRICE:
$599.00 USD
$599.00 USD $599.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION:

description

Silent Angel Bonn N8 8-Port Network Switch

The Audiophile Grade Audio Network Switch That Optimizes Digital Music for a Superior HiFi Experience

Bonn N8 Pro was created for music lovers who want to build a dedicated “HiFi Ecosystem” and achieve the best possible audio quality. Silent Angel’s rigorous approach preserves the integrity of the source and delivers a high-purity signal to connected components, for a performance unattainable with typical Network Switches. Purpose-engineered for High Resolution Streaming Networks, Bonn N8 Pro provides the ideal foundation for sonic excellence.

Two available N8 Pro models: One (N8 PRO-CLK) with an 10MHz external Word Clock input, and one (N8 PRO) without.


Unique and Advanced Designs

  • Eight gold-plated Gigabit Ethernet Ports with spaced out ports to physically reduce possible signal interference.
  • Class-leading Radar-Grade internal switching power supply module, which is exclusive to noise-sensitive acoustic equipment.
  • Perfectly timed data transmission.
  • TCXO (Temperature Compensation Crystal Oscillator) greatly lowers network latency issues and jitter effects.

Advanced Options for Audiophiles

  • An auxiliary DC power jack (12V) enables users to bypass the internal switching power module and connect an external linear power supply for performance upgrade.
  • A gold-plated grounding terminal for dedicated connection to ground further lowers power noise.
  • LED light switch which enables users to turn the port status indicator on/off.
  • Class-leading clock receiving module accommodates an external clock input. (* Optional, this available on N8 PRO-CLK model only)
  • Two available N8 Pro models:
    • N8 Pro without external word clock input
    • N8 PRO-CLK with an 10MHz external word clock input

Radar Grade Switching Power

Class-leading internal Power Module supports highly accurate system function


Noise Reduction

Our highly permeable EMI absorber eliminates electrical noise


Gilded LAN Ports

Deliver the purest and most stable signal to your devices with richly gold-plated RJ45 connectors


Gold Plated Grounding Terminal

Offers dedicated connection to ground for power noise reduction


Switchable LED Lights

User-selectable switch to keep port status lights on or off while enjoying your music


TCXO - Clock Signal

Highly accurate clock reduces network latency issues and jitter

System Structure

  1. TCXO clock (10MHz):
    Eliminate irrelevant frequencies and generate pure clock. High precision, ultra low phase-noise signal output as the clock source for the Ethernet switch system.
  2. Power source circuit for TCXO clock:
    Power filter technology, it filtering out crosstalk and noises. Feeding the purified power to the TCXO module.
  3. Power source circuit for switch system:
    Low-noise voltage regulator circuit, capable of processing wide dynamic range power. Features highly-efficient circuit design and fast response time.
  1. Exclusive, customized Silent Angel power module:
    Wide dynamic range AC to DC power module. Stable, low-ripple noise, secure protection circuit, well-covered by an alumni heat sink.
  2. AC power filter circuit:
    High isolation common mode choke circuit for AC power input to prevent the noises pollution from AC power sources from other device or power system.
  3. Connect to the optional linear power supply.
    DC Jack for external 12V DC.
  4. Receiving the external clock input port* (gold-plated, at 10MHz).
    * Optional, this available on N8 PRO-CLK model only.
  5. Internal/external clock selector switch.* Ultra-low-noise clock synthesizer (PLL clock generator).
    * Optional, this available on N8 PRO-CLK model only.
