Efficient High Power

More power, more efficient, more robust…just more. For nearly 50 years Russound has been designing equipment to fit an installer’s needs. When we went to redesign the next generation of our ubiquitous multi-channel amplifier line, we approached it from the ground-up. The result is the D-Series, a completely custom-built solution that has all the great features of our historically popular multi-channel amps in a much more refined platform.

The Russound D1650 digital multi-channel amplifier offers the features custom installation professionals demand while offering a lighter weight, smaller chassis and more efficient Class D power. The feature-rich design of the D1650 is ideal for the demands of distributed audio systems and is also compatible with our Russound volume controls. The D1650’s 16 channels are arranged in stereo pairs to provide discreet amplification and custom configurations for each of 8 zones.

Sound Quality

The D-Series amplifiers all have the same legendary Russound sound quality and installer-friendly features customers have come to expect. Ultra-low distortion output (relatively unheard of in other multi-zone amplifiers) allows for clean, undistorted audio even at high listening volumes. A robust protection circuit provides efficient, safe and reliable operation under extreme conditions and protects each amplifier output channel.

Home Theater

The D-Series amps are even up to the rigorous demands of home theater applications, easily transforming into a powerful 160 watt X 8 channel monster (in bridged mode). You can also choose to individually un-bridge pairs for lower power applications such as Dolby Atmos® or surround speakers. As an example you could run a Dolby Atmos 7.1.2 system at 7 channels @ 160W and 2 channels @ 50W. That’s Russound versatility!

Say “no” to the hum

Advanced triggering options allow the amps to operate on demand. Apart from the obvious energy efficiency, there is no amplifier hum on your speakers when the system isn’t in use.

• 16-channel amplifier with 8 independent playback zones
• power output:
  • 50 watts RMS per channel at 8 ohms (1 kHz, two channels driven)
  • 80 watts RMS per channel at 4 ohms (1 kHz, two channels driven)
  • each pair of channels can be bridged to 160 watts mono into 8 ohms
• high-efficiency, cool running Class D amplification
• frequency response: 20-20,00 Hz (+1.7/-1dB at 1 watt output into 8 ohms)
• signal-to-noise ratio: greater than 90 dB

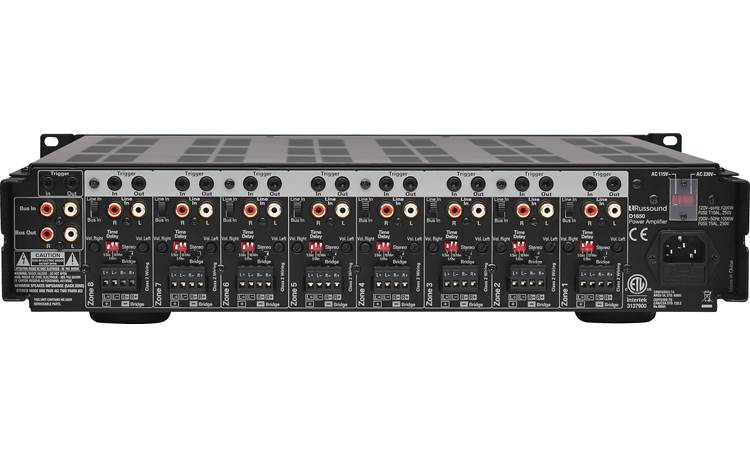

• 8 stereo RCA audio inputs, one for each zone
• stereo RCA global bus input for distributing a single audio source among multiple amplifier channels of your choice
• Independent trigger input/output for each zone
• audio signal sensing with auto-switching delay settings per zone
• global trigger input/output
• cascade bus input/output for "daisy-chaining" additional amplifiers
• independent gain adjustment for each channel allows volume fine tuning and maximum volume level settings for each zone
• protection circuit provides safe and reliable operation for each amplifier output channel under extreme conditions
• detachable speaker terminals support up to 14-gauge wire
• removable AC power cord
• rack mountable chassis (rack mount ears included)
• weight: 19 lbs.
• 16-7/8"W x 3-1/2"H x 16-3/16"D
