Rotel RC-1590MKII Stereo Preamplifier

PRICE:
Regular price $2,699.00 USD
Regular price $2,699.00 USD Sale price $2,699.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

Color

description

Rotel RC-1590MKII Stereo Preamplifier

Silver

Reference audio systems deserve reference audio equipment. Rotel’s RC-1590MKII reference preamplifier renders audio with natural expression, an open sound stage and dynamic clarity. Analog, Digital, Bluetooth and Turntable sources are supported by a bespoke acoustic tuning process inviting you to bring your favorite music allowing the RC-1590MKII to immerse you.

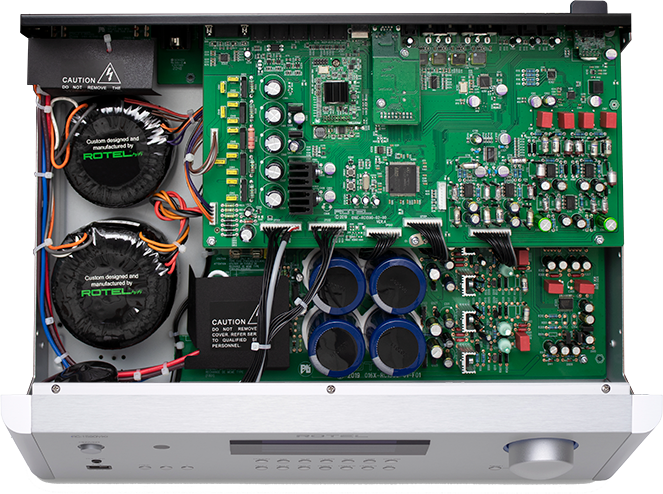

The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufacture toroidal transformers. The transformers are physically and electrically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.

Digital source inputs are processed utilizing an audiophile grade Texas Instruments 32-bit/384kHz Digital to Audio Converter (DAC) with custom engineered, proprietary acoustically tuned external output filter circuits rendering even the finest details with exceptional clarity and exact positing.

Analog signal paths feature DIRECT-PATH bypass modes eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.

The RC-1590MKII supports a full array of inputs ensuring connection to your favorite sources including a Moving Magnet Phono input for vinyl lovers, Analog, Digital, XLR Balanced, high quality aptXTM and AAC wireless Bluetooth, and PC-USB (32-bit/384kHz) supporting MQA unfolding and rendering as well as certified Roon Tested.

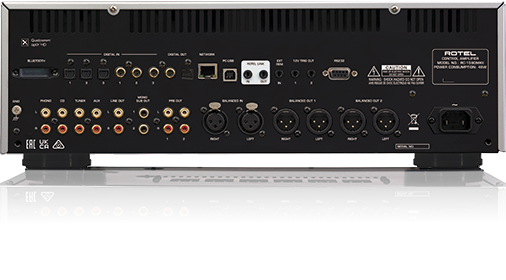

Dual RCA and XLR output connection provide the ultimate flexibility including bi-amplification installations. A subwoofer output is also included.

The RC-1590MKII proudly continues Rotel’s 60-year legacy and heritage with our ongoing promises of performance, value, and unwavering commitment to quality. Authentic, engaging, and spacious – the RC-1590MKII proudly represents this iconic brand.

General Specifications

Color
Silver
Bluetooth Enabled
Yes
Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.002%
Frequency Response
Line Level Inputs: 10Hz - 100kHz (+0dB, +0.1dB), Digital Inputs: 20Hz - 20kHz (0±0.5dB, Max), Phono Input: 20Hz - 20kHz (+0.3dB, -0.2dB)
S/N Ratio (IHF "A" Weighted)
Line Level Inputs (RCA): 117dB, Line Level Inputs (XLR): 115dB, Digital Inputs: 108dB, Phono Input: 80dB
Intermodulation Distortion (IM)
(60Hz:7kHz, 4:1): <0.002%
Input Sensitivity
Line Level Inputs (RCA): 150mV, Line Level Inputs (XLR): 250mV, Digital Inputs: 0dBFs, Phono Input (MM): 2.5mV
Input Impedance
Line Level Inputs (RCA): 100k Ohms, Line Level Inputs (XLR): 100k Ohms, Digital Inputs: 75 Ohms, Phono Input (MM): 47k Ohms
Input Overload
Line Level Inputs (RCA): 4V, Line Level Inputs (XLR): 5.5V, Phono Input: 64mV
Output Level
Unbalanced (RCA): 1V, Balanced (XLR): 2V
Channel Separation
Line Level Inputs (RCA): >85dB, Line Level Inputs (XLR): >75dB, Phono Input: >85dB
Tone Controls
+10dB at 100Hz / 10kHz, Preout Level: 1.65 V (at - 20 dB)
Preamplifier Output Level
1.44 V (at - 20 dB)
Coax/Optical Digital Input Signals
LPCM (Up to 24-bit/192kHz)
PC-USB
USB Audio Class 1 (up to 24-bit/96kHz), USB Audio Class 2 (up to 32-bit/384kHz)* *Driver Installation Required, MQA and MQA Studio (up to 24-bit/384kHz), Roon Tested
Power Requirements
120V, 60Hz
Standby Power Consumption
<0.5W
BTU
78 BTU/h


Approximate Dimensions

Height (in)
5.7
Width (in)
17
Depth (in)
13.9
Front Panel Height (in)
5.25
Package Size HxWxL (in)
11 x 18 x 22


Warranty Information

Parts Warranty
5 Years Limited
Labor Warranty
5 Years Limited


Approximate Weight

Unit Weight (lbs.)
22.27
Package Weight (lbs)
28
