Rotel Michi M8 Monoblock Power Amplifier (each)

Call For Details 317-255-4434

PRICE:
Regular price $9,499.00 USD
Regular price $9,499.00 USD Sale price $9,499.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

description

Rotel Michi M8 Monoblock Power Amplifier

Call us today! 317-255-4434



Front

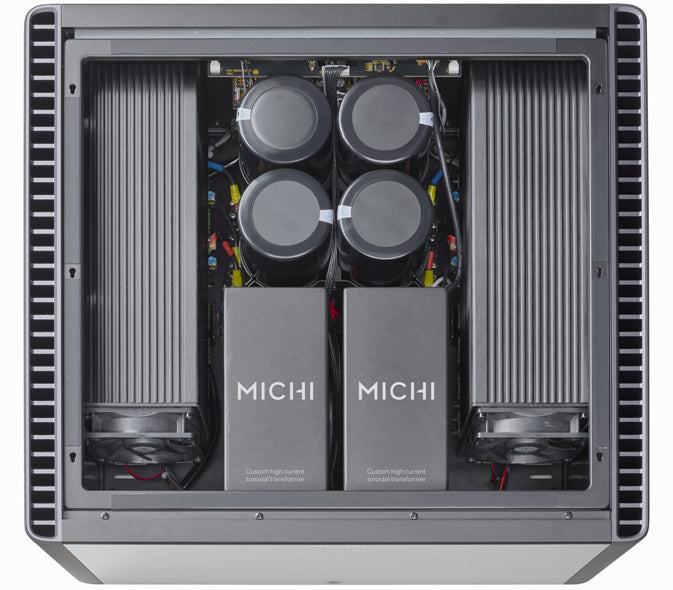

The stunning control and authoritative power of the Michi M8 Monoblock Amplifier is the result of a perfect balance of science meets art delivering 1,080 watts of Class AB power into 8 ohms and an astounding 1,800 watts to the most demanding 4 ohm loudspeakers. The M8 is powered by a pair of custom engineered, low noise, in-house manufactured toroidal transformers supported by 4 British patented slit foil, high efficiency, low ESR bulk storage capacitors for impactful bass with exceptional control under extreme loading conditions.

To achieve accuracy and its unsurpassed performance, the M8 is equipped with an array of 32 high current output transistors thus reducing the load on individual components and maintaining the crucial energy, rhythm and timing throughout the amplification stages. Musical expression and detailed refinement were further accomplished through acoustic tuning of all critical components and a balanced circuit design.

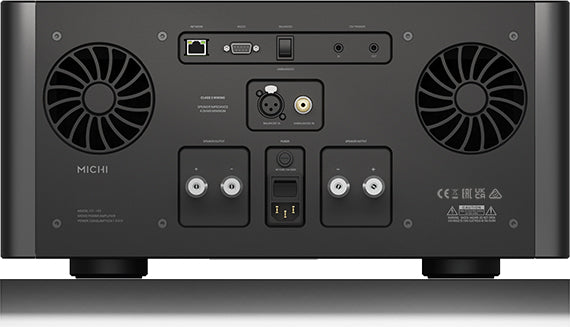

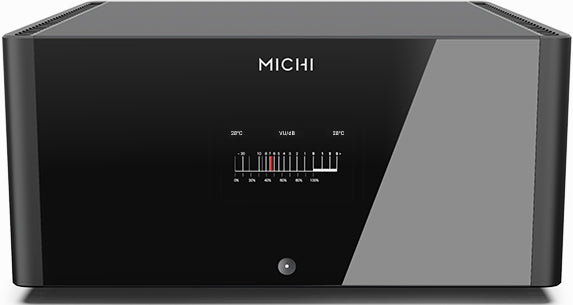

A high resolution display adorns the front panel supporting a peak power meter or spectrum analyzer. With XLR and RCA inputs, 2 sets of custom Michi speaker binding posts, remote control and fully featured RS232 and Ethernet connections the M8 provides ultimate installation flexibility. Power amplification at its best in the most elegant of industrial designs.

General Specifications

Color
Black
Type
Power Amplifier
Total Harmonic Distortion (THD)
<0.018%
Power Requirements
120V, 60Hz
Power Consumption
1200W
Standby Power Consumption
0.5 W
BTU Rating
3200
Frequency Response
20Hz - 20kHz (+0dB, -0.15dB)
Intermodulation Distortion (IM)
<0.03%
Damping Factor
200
Input Sensitivity
Unbalanced (RCA): 1.85V, Balanced (XLR): 3V
Input Impedance
Unbalanced (RCA): 12.5k Ohms, Balanced (XLR): 100k Ohms
Total Gain
Unbalance (RCA): 34dB, Balance (XLR): 30dB


Warranty Information

Parts Warranty
5 Years
Labor Warranty
5 Years


Approximate Weight

Unit Weight (lbs.)
130.3
Package Weight (lbs)
146


Approximate Dimensions

Height (in)
9.38
Width (in)
19
Depth (in)
18.25
Package Size HxWxL (in)
16 x 27 x 27
