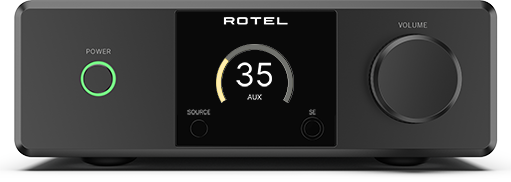

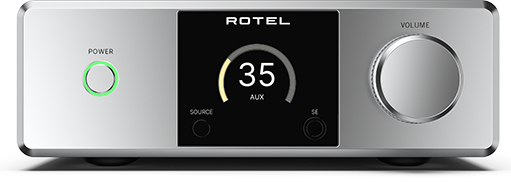

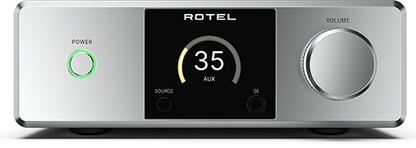

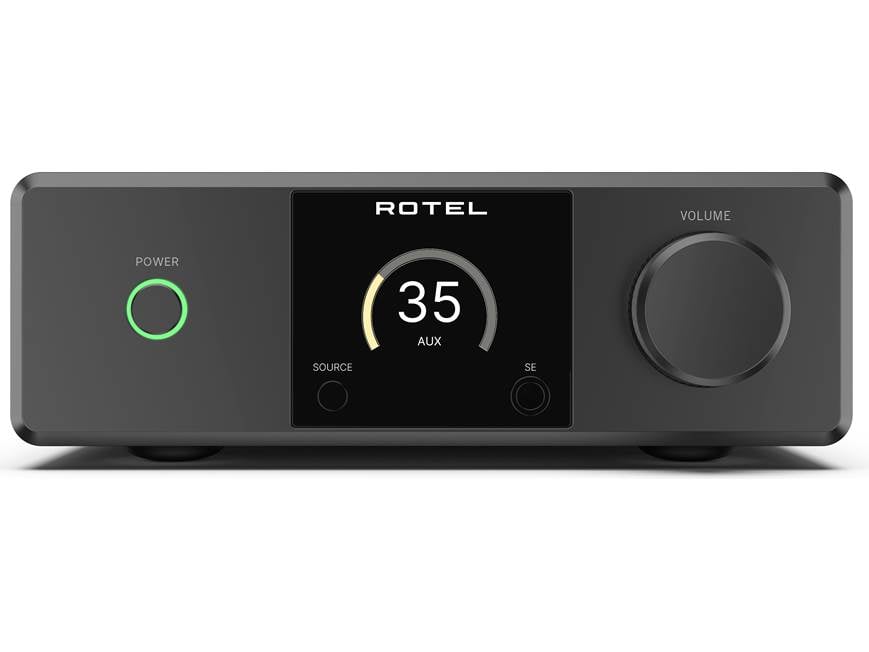

Rotel DX-5 Desktop integrated amplifier

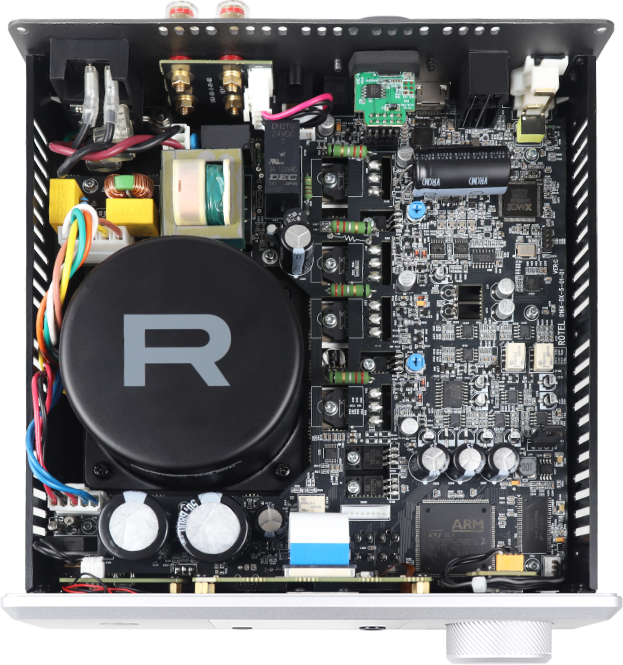

The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).

The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output.

The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.

Product info:

• 25 watts x 2 channels into 8 ohms (20-20,000 Hz) at <0.03% THD
• 33 watts x 2 channels into 4 ohms
• Class AB amplification with custom-designed, high-current toroidal transformer
• ESS SABRE ES9039Q2M digital-to-analog converter offers superb sound with digital music files
• Bluetooth with aptX™ HD and AAC
• frequency response: 20-20,000 Hz
• signal-to-noise ratio: >100 dB
• front panel features large volume knob, source selection button, and full-color TFT display
• IR remote control

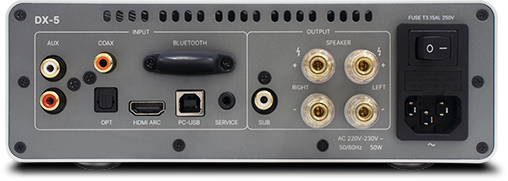

Connections:

• analog stereo RCA input
• coaxial digital input (up to 24-bit/192kHz resolution)
• optical digital input (up to 24-bit/192kHz resolution)
• HDMI ARC input for connecting a TV
• USB Type-B input for connecting a computer (up to 32-bit/384kHz resolution)
• 3.5mm service port
• one pair of binding post speaker outputs
• mono RCA output for a powered subwoofer
• front-panel full-sized 1/4" headphone jack
• detachable 3-prong IEC power cord

Other info:

• 8-1/2"W x 2-7/8"H x 11-1/8"D
• weight: 9.1 lbs.
• warranty: 5 years
