Rotel A14MKII Integrated Amplifier

PRICE:
Regular price $1,899.00 USD
Regular price $1,899.00 USD Sale price $1,899.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

Color

description

Rotel A14MKII Integrated Amplifier

Silver

The A14 MKII Integrated Amplifier delivers Class AB amplification from your favorite sources including analog, digital, PC-USB with MQA, wireless aptXTM and AAC Bluetooth and Moving Magnet Phono stage. Critically tuned power supply, DAC and amplifier circuits ensure the A14MKII will deliver countless hours of entertainment.

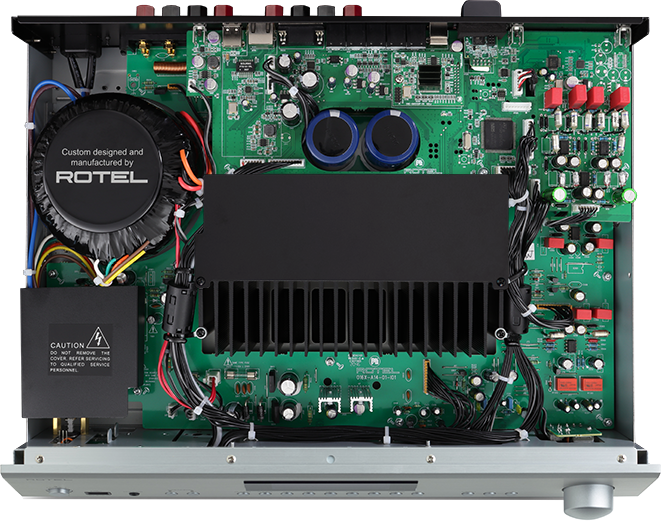

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.

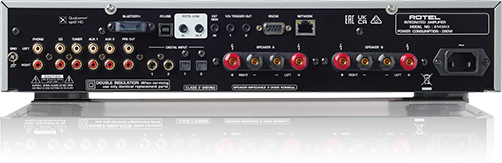

The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections.

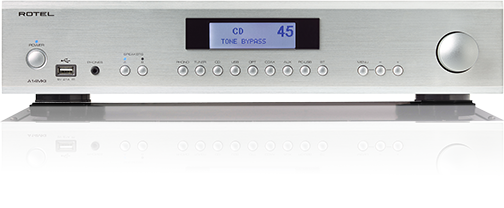

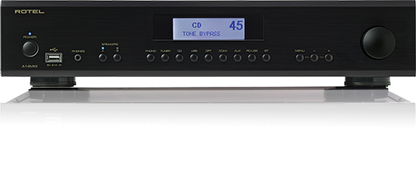

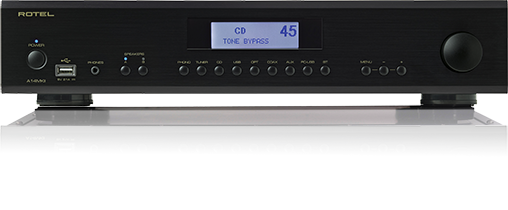

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

General Specifications

Color
Black
Type
Stereo Amplifier
Watts Per Channel (RMS)
150W
Bluetooth
Yes
Number Of Audio Zones
2
Total Harmonic Distortion (THD)
<0.018%
Signal to Noise Ratio
Line Level Inputs: 100dB, Digital Inputs: 103dB, Phono Input: 90dB
Inputs
1 x MM Phono Stage, 4 x RCA Analog, 2 x Optical, 1 x PC-USB
Maximum Output Power
150W/Ch (4 Ohms)
Ethernet Port(s)
No
Wireless Multi-Room Technology
No
Works With
No
Power Requirements
120V, 60Hz
Power Consumption
280W
Standby Power Consumption
<0.5W
BTU Rating
632 BTU/h
Frequency Response
Line Level Inputs: 10Hz - 100kHz, +0.5dB, Digital Inputs: 10Hz - 90kHz +2dB, Max, Phono Input: 20Hz - 15kHz +0.5dB
Intermodulation Distortion (IM)
(60Hz:7kHz, 4:1): <0.03%
Damping Factor
270
Input Sensitivity
Line Level Inputs (RCA): 230mV, Digital Inputs: 0 dBFs, Phono Input (MM): 3.4mV
Input Impedance
Line Level Inputs: 24k Ohms, Digital Inputs: 75 Ohms, Phono Input (MM): 47k Ohms
Input Overload
Line Level Inputs: 4V, Phono Input: 50mV
Preout Level
1.2V
Output Impedance
470 Ohm
Tone Controls
+10dB at 100Hz / 10kHz
Headphone Output
Yes
Coax/Optical Digital Input Signals
SPDIF LPCM (Up to 24-bit/192kHz)
Remote Control Included
Yes


Approximate Dimensions

Height (in)
3.6
Width (in)
17
Depth (in)
13.5
Front Panel Height (in)
3.15
Package Size HxWxL (in)
18 x 8 x 21


Warranty Information

Parts Warranty
5 Years Limited
Labor Warranty
5 Years Limited


Approximate Weight

Unit Weight (lbs.)
19.71
Package Weight (lbs)
23
