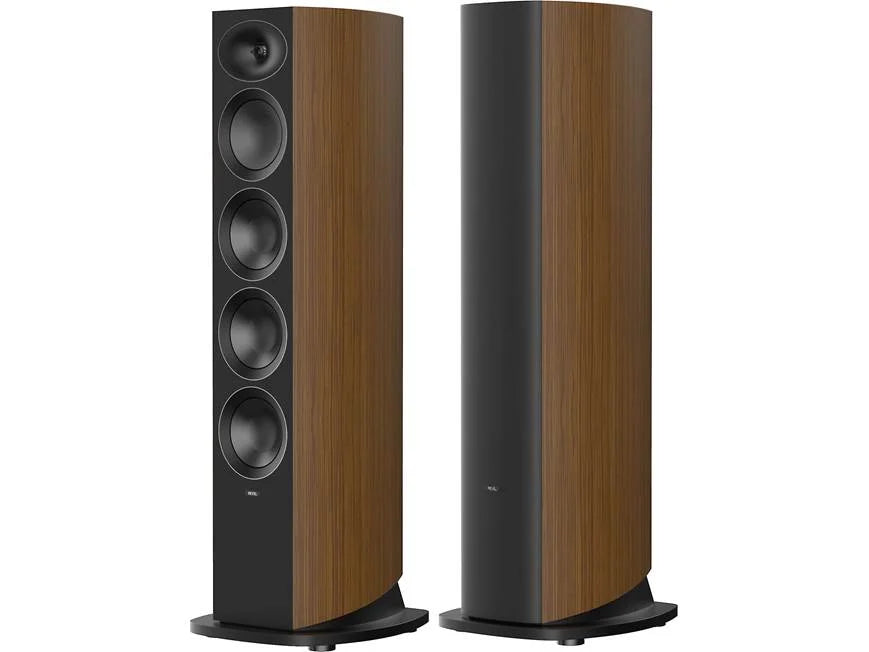

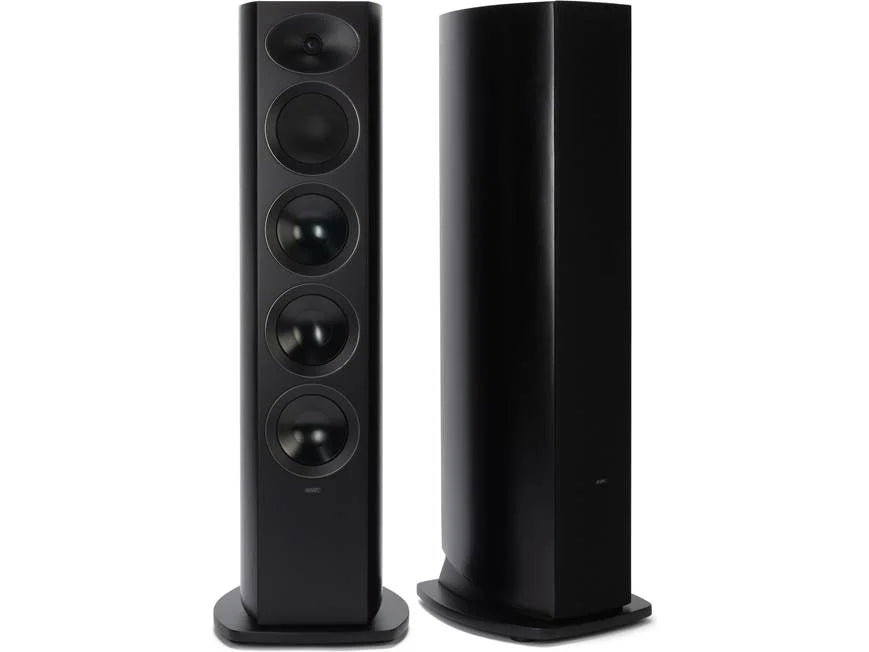

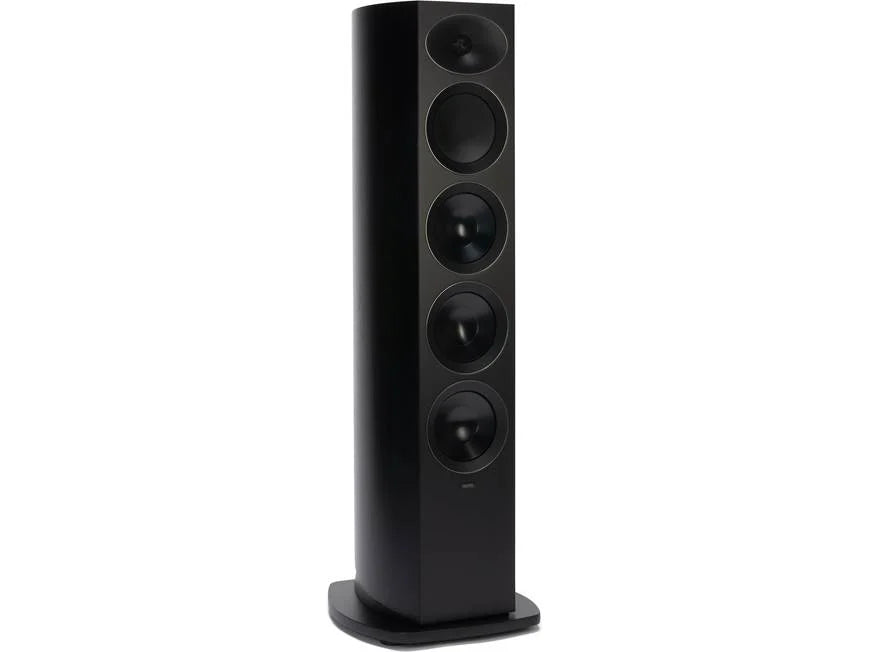

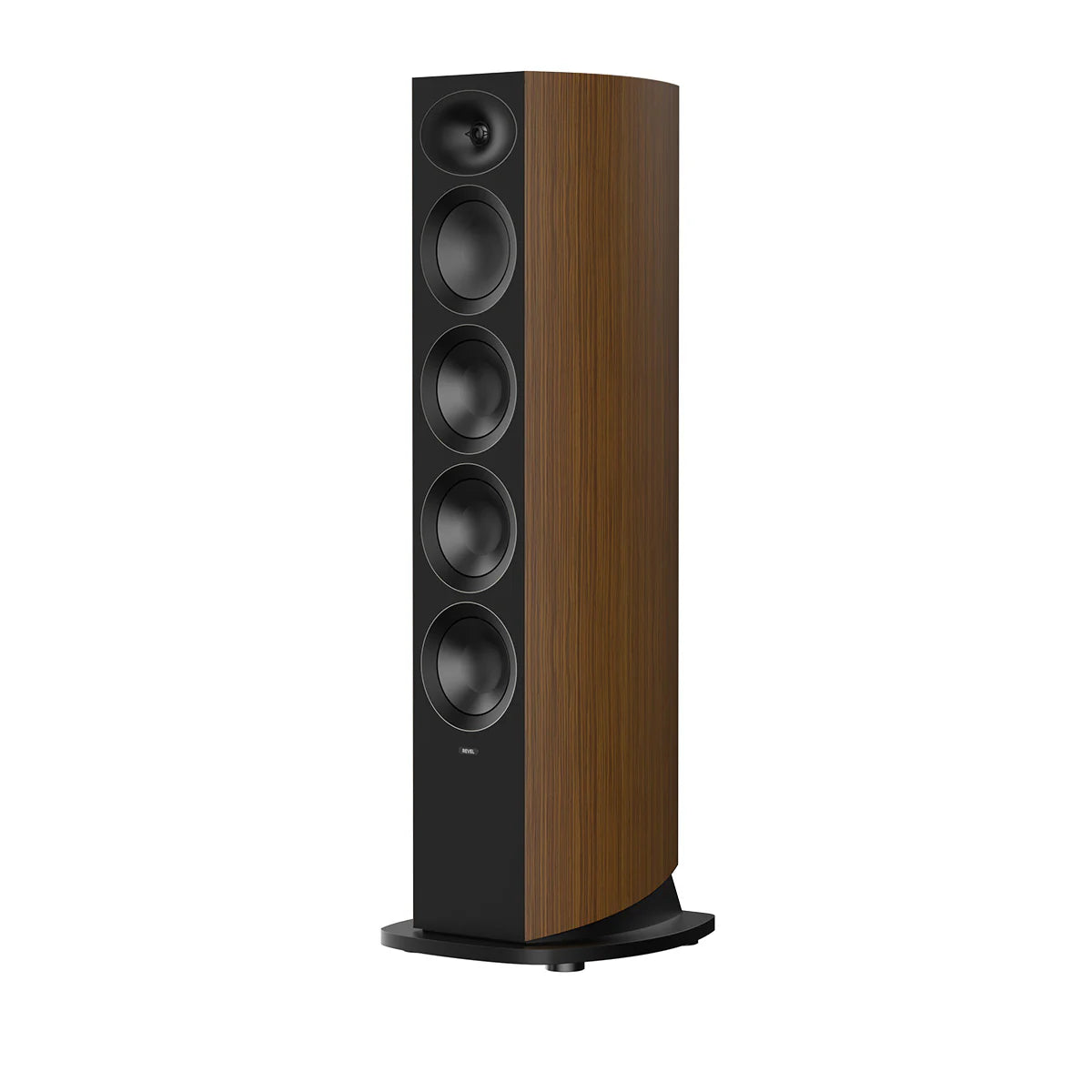

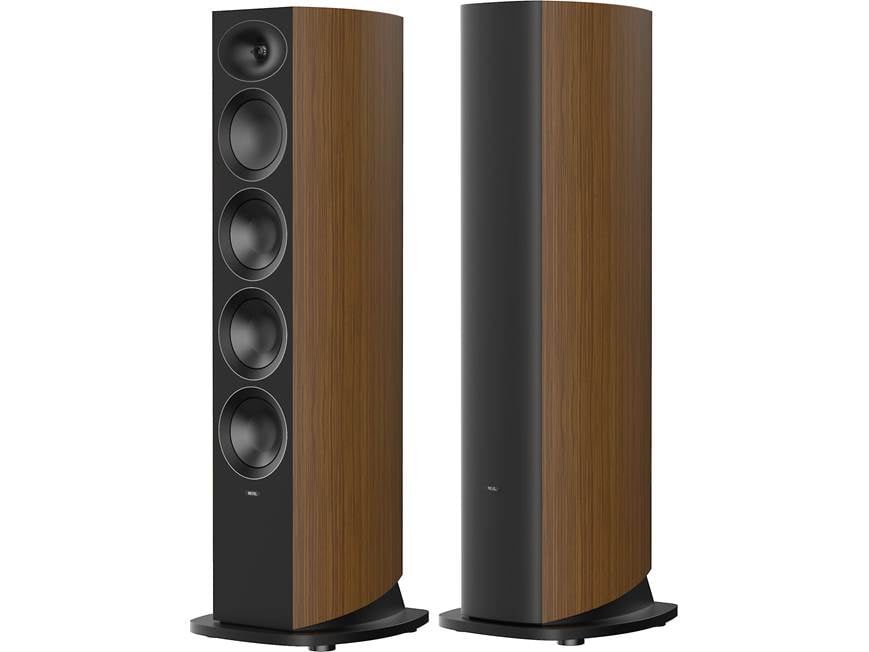

Born from decades of world-class loudspeaker innovation, the Revel F346 stands as the flagship floorstanding model in the Performa4 series. It features three 6.5-inch (165mm) Micro Ceramic Composite (MCC) cone woofers, a 6.5-inch (165mm) Deep Ceramic Composite (DCC) cone midrange and a 1-inch (25mm) DCC dome tweeter mounted in a 7th-generation Acoustic Lens waveguide. These advanced components work in harmony with a precision crossover network and a bass-reflex tuned port enclosure to achieve unmatched audio accuracy. With the F346, it’s just you and the pure beauty of your music.
The F346 features three 6.5-inch (165mm) Micro Ceramic Composite (MCC) cone woofers and a 6.5-inch (165mm) Deep Ceramic Composite (DCC) cone midrange driver all with inverted surrounds. This design incorporates a hidden flange and integrated trim ring, concealing all hardware and emphasizing the sleek aesthetics of the front panel. Both the woofer and midrange utilize a newly patented cast frame engineered to optimize airflow for maximum cooling, reduced weight, increased rigidity, and improved resonance performance.
The F346’s 1-inch (25mm) DCC dome tweeter is mounted in a 7th-generation Acoustic Lens waveguide, setting a new performance standard for its class. This advanced design delivers seamless integration with the midrange driver for superior directivity control, resulting in greater efficiency, improved dynamic range, and reduced distortion. Developed using advanced modeling software, the tweeter provides exceptionally smooth sound even far off-axis, an important contributor to overall sound quality, ensuring consistent performance across a wide listening area. The waveguide even increases dispersion at higher frequencies, creating a more immersive and natural sound experience.

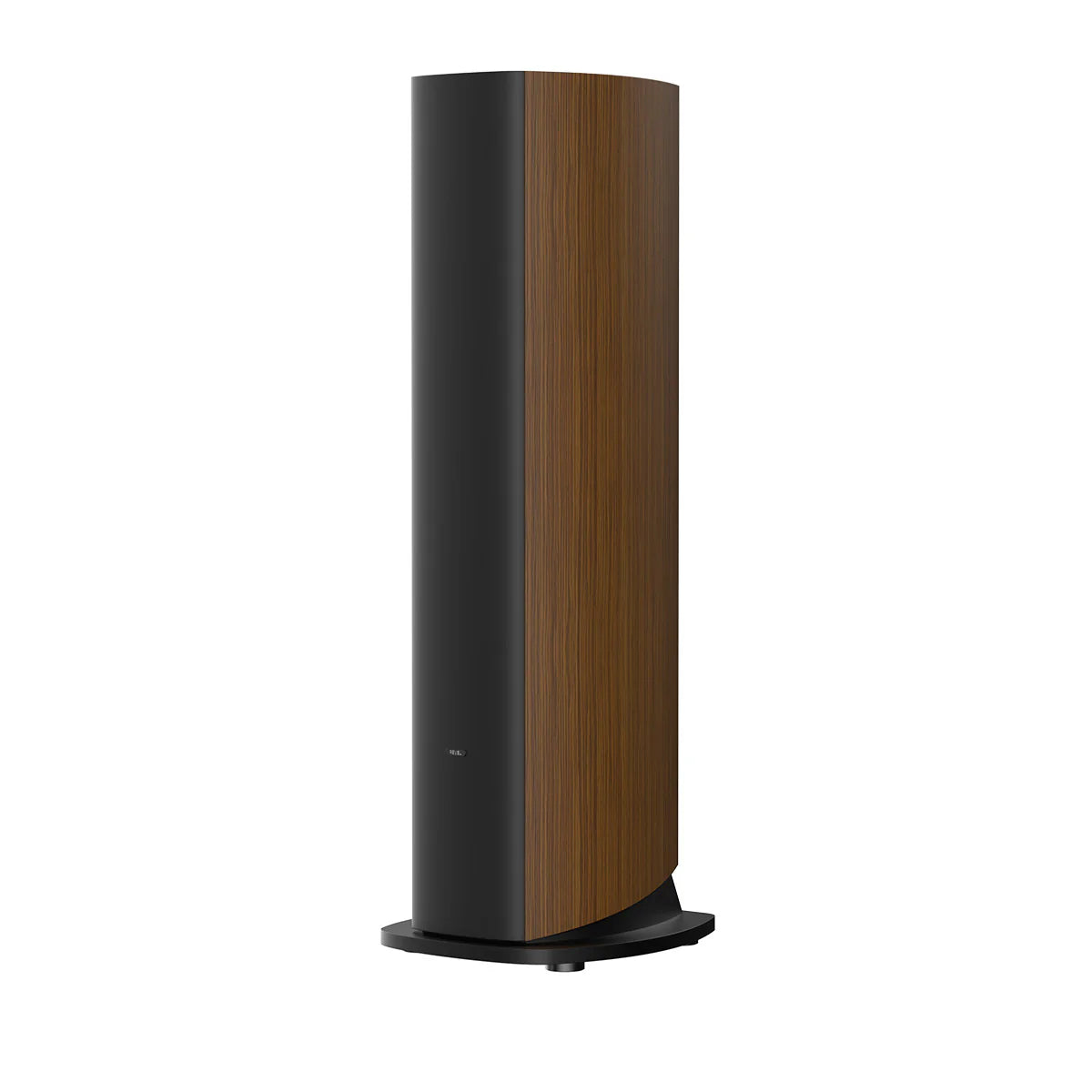

The F346 embodies luxury craftsmanship and decades of loudspeaker expertise, featuring magnetically attached grilles for a clean, seamless look with no visible fasteners. Hidden hardware and integrated trim rings add a refined touch, while a polished black accent complements the rigid, cross-braced cabinet. Solid aluminum feet with optional spikes and floor protectors ensure optimal positioning and isolation. Gently curved cabinet sides are finished in premium wood veneers, available in natural walnut or black walnut. Every detail is designed to please the eye as much as the ear.
The F346 employs a precision 3-way crossover network featuring premium components, including air-core inductors in the midrange and tweeter circuits. These high-quality elements preserve subtle musical details that would otherwise be lost. Revel’s world-class engineering team utilizes high-order crossover slopes and a proprietary 7th-generation Acoustic Lens waveguide geometry to achieve seamless transducer integration, delivering exceptional accuracy and natural sound reproduction.

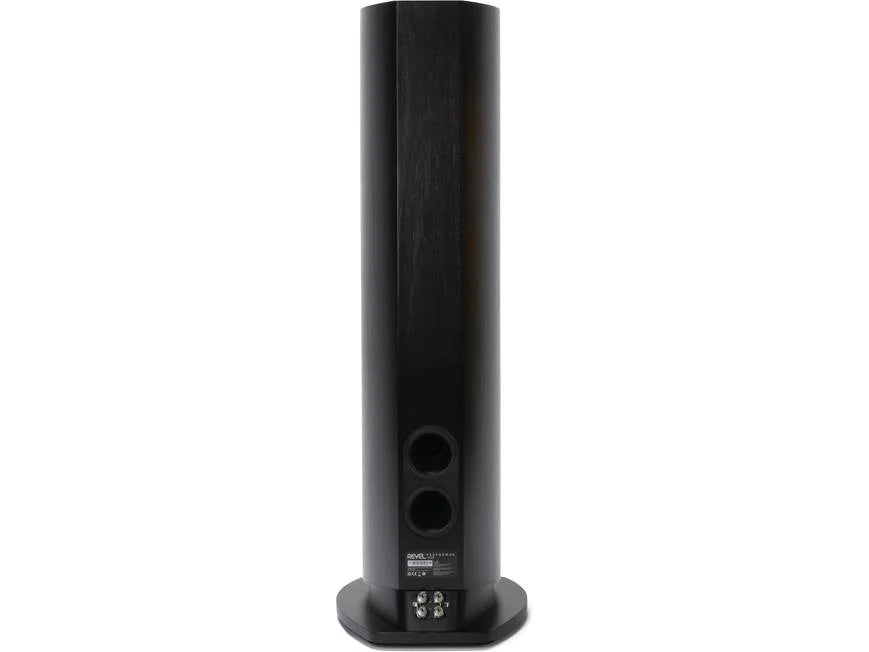

Dual 5-way binding posts provide listeners with flexible, high-quality connection options, including banana plugs, spade lugs, pin connectors, or bare wire. Two sets of terminals are provided to support bi-wiring, bi-amping, or single-wire configurations.
| Model | Revel F346 |
|---|---|
| Description: | 3-way Triple 6.5" Floorstanding |
| Type: | Floorstanding |
| Crossover Type: | High Order 3-Way with Film Capacitors and Air Core Inductors |
| Low-frequency Transducer Size: | 3 x 6.5" (165 mm) |
| Low-frequency Transducer Quantity: | 3 |
| Low-frequency Transducer Basket | Cast Aluminum |
| Low-frequency Transducer Material: | Aluminum Cone with Deep Ceramic Coating |
| Low-frequency Voice Coil: | 1.5" (38 mm), Four-layer Copper |
| Midrange Transducer Size | 1 x 5.25" (130 mm) |
| Midrange Transducer Quantity | 1 |
| Midrange Transducer Basket | Cast Aluminum |
| Midrange Transducer Material: | Aluminum Cone with Deep Ceramic Coating |
| Midrange Voice Coil: | 1.5" (38 mm), Four-layer Copper |
| High-frequency Transducer Size: | 1" (25 mm) |
| High-frequency Transducer Quantity: | 1 |
| High-frequency Transducer Basket | Cast Aluminum |
| High-frequency Transducer Material: | Aluminum Dome with Ceramic Coating |
| High-frequency Voice Coil: | 1.25" (32 mm), Two-layer Copper |
| Crossover Frequency: | 260 Hz, 2.2 kHz |
| System Power Rating | 30 W to 350 W |
| Sensitivity: | 90 dB @ 2.83V/1m |
| Nominal Impedance: | 6 ohms |
| Low-frequency extension: | 26 Hz (-10 dB) |
| Frequency response: | 26 Hz to 40 kHz (-10 dB) |
| Maximum SPL @ 1m: | 112 dB peak |
| Recommended Listening Position: | 2 to 4 m |
| MDF cabinet: | Yes |
| Cabinet design: | Low-turbulence Rear-firing Port |
| Finish options: | High gloss Walnut, White, Black |
| Driver location: | Front |
| Grille: | Magnetic |
| Height | 47.1" (1196 mm) |
| Width | 8.3" (211 mm) |
| Depth | 14.6" (371 mm) |
| Weight | 83.0 lbs (37.65 kg) |
| Shipping carton height | 55.0" (1397 mm) |
| Shipping carton width | 13.0" (330 mm) |
| Shipping carton depth | 21.0" (533 mm) |
| Shipping weight | 94.0 lbs (42.64 kg) |
