Born from decades of world-class loudspeaker innovation, the Revel C245 provides a dedicated center channel solution for home cinema systems in combination with any of the Performa4 floorstanding and bookshelf loudspeakers. It features dual 5.25-inch (130mm) Micro Ceramic Composite (MCC) cone woofers and a 1-inch (25mm) DCC dome tweeter mounted to a 7th generation Acoustic Lens waveguide. These components work in harmony with a precision crossover network and a bass-reflex tuned port enclosure to achieve unmatched audio accuracy and exceptional dialogue clarity.

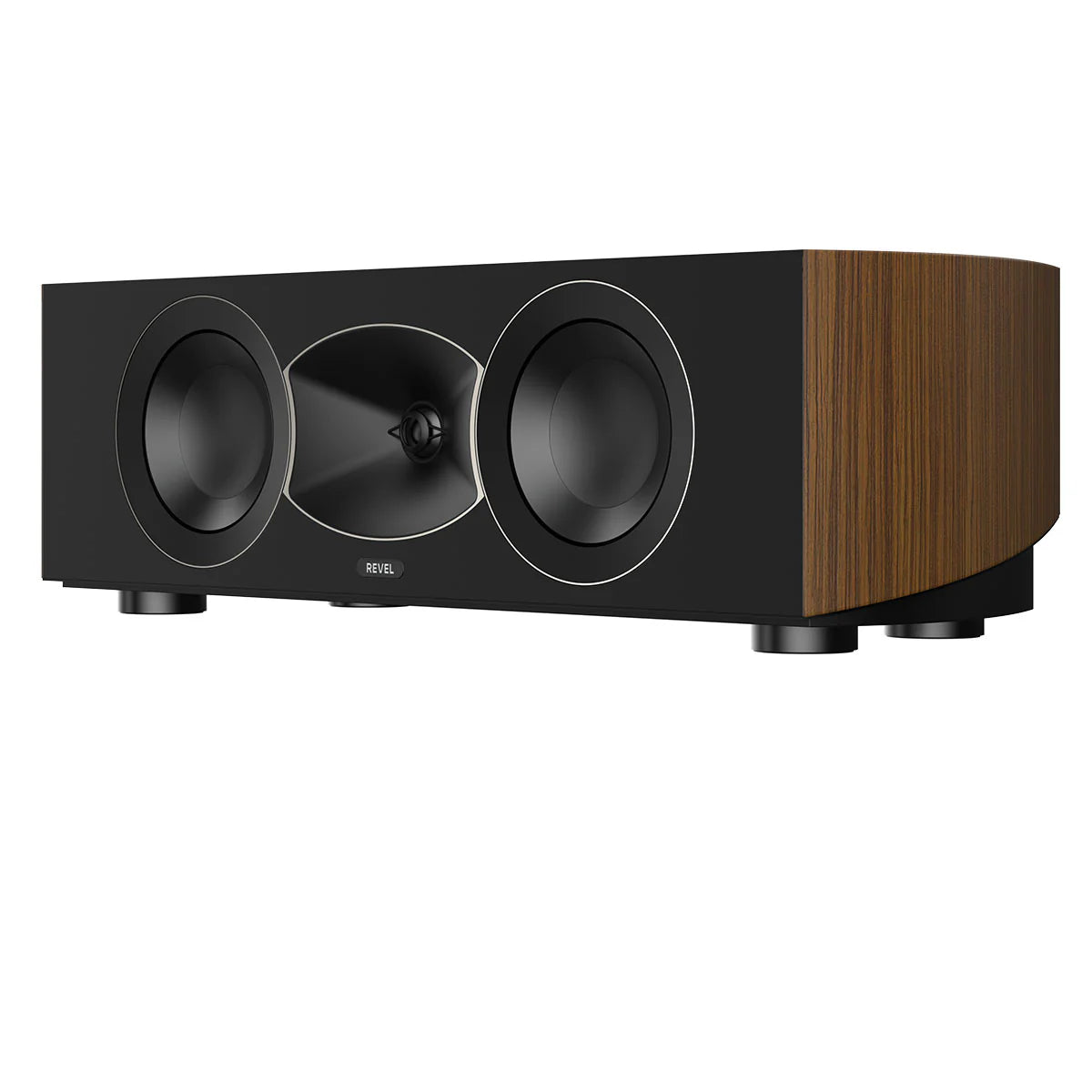

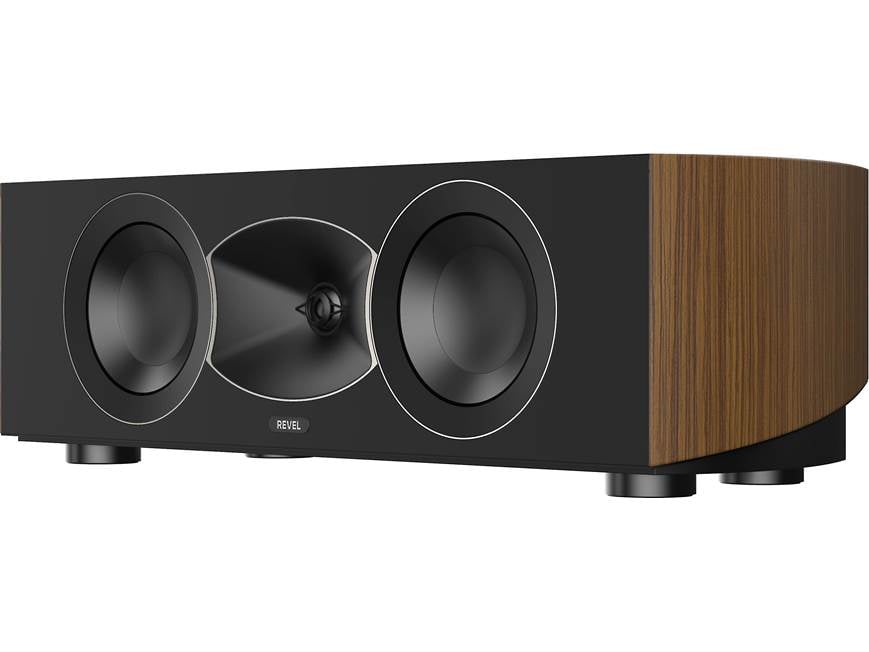

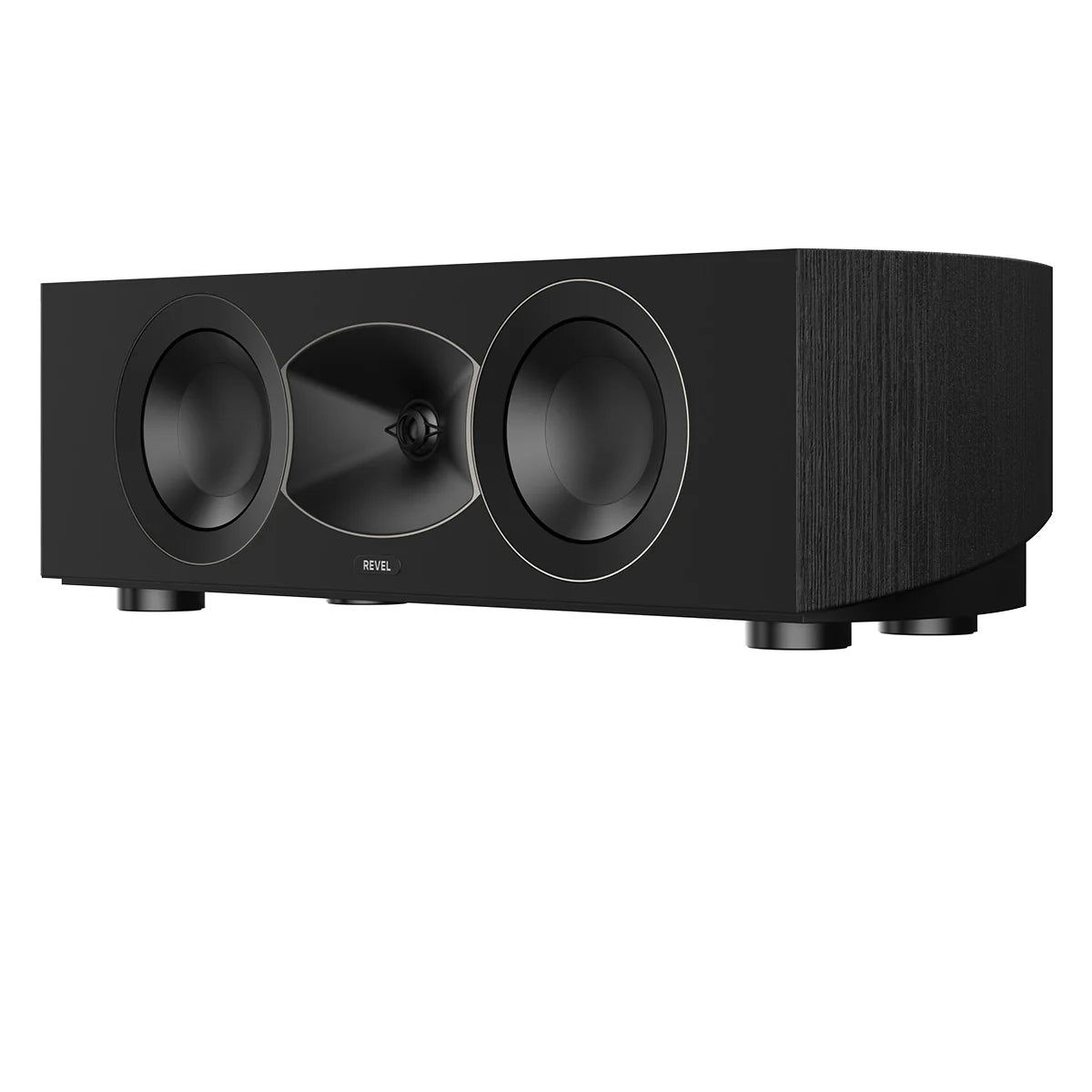

The C245 features dual 5.25-inch (130mm) Micro Ceramic Composite (MCC) cone woofers with inverted surrounds. This design incorporates a hidden flange and integrated trim ring, concealing all hardware and emphasizing the sleek aesthetics of the front panel. The woofer utilizes a newly patented cast frame engineered to optimize airflow for maximum cooling, reduced weight, increased rigidity, and improved resonance performance.
The C245’s 1-inch (25mm) DCC dome tweeter is mounted in a 7th-generation Acoustic Lens waveguide, setting a new standard for performance in its class. This advanced design ensures seamless integration with the woofers for superior directivity control, resulting in greater efficiency, improved dynamic range, and reduced distortion. Developed using advanced modeling software, the tweeter delivers exceptionally smooth sound even far off-axis, an important contributor to overall sound quality, providing consistent performance across an exceptionally wide listening area. The new waveguide even increases dispersion at higher frequencies, creating a more immersive and natural listening experience.

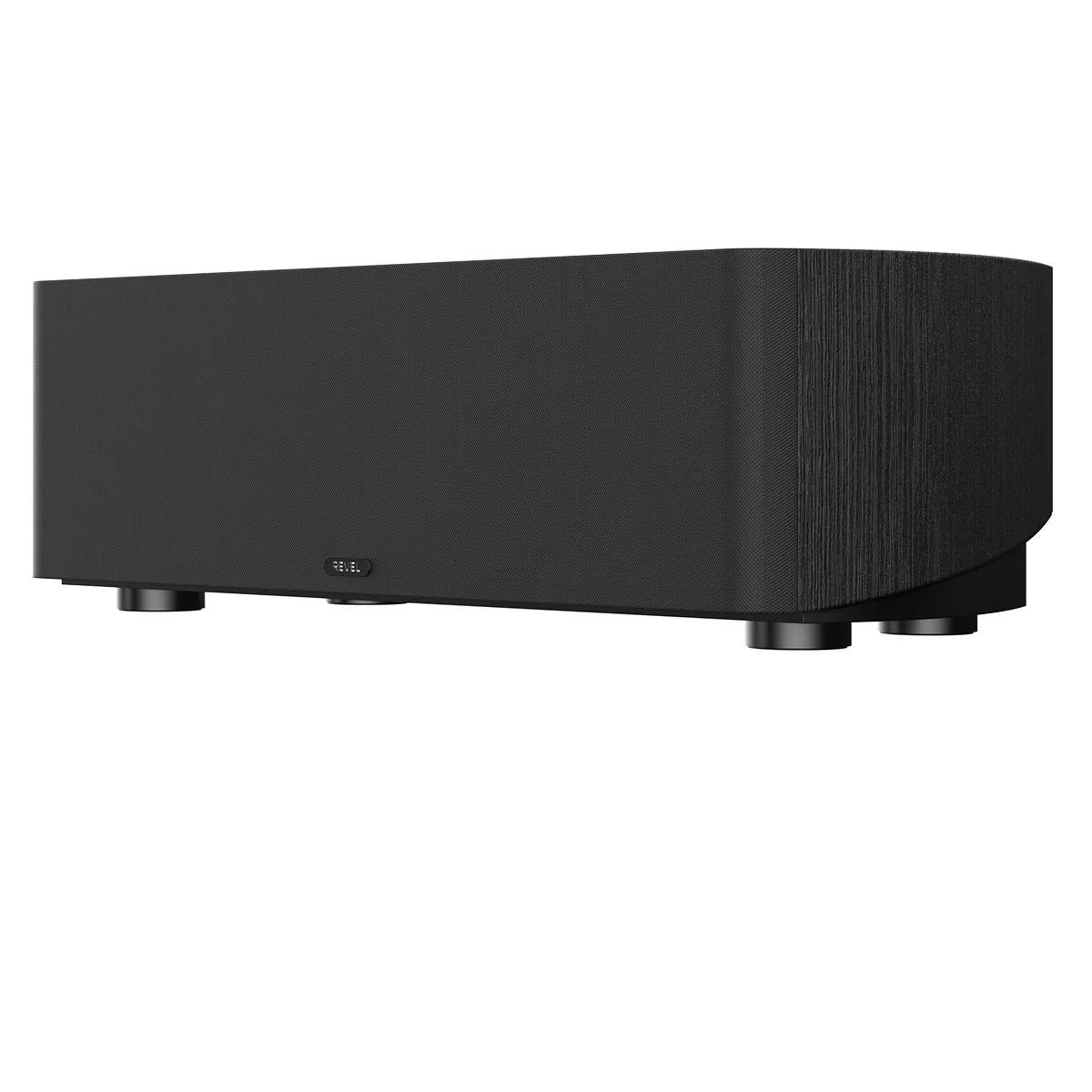

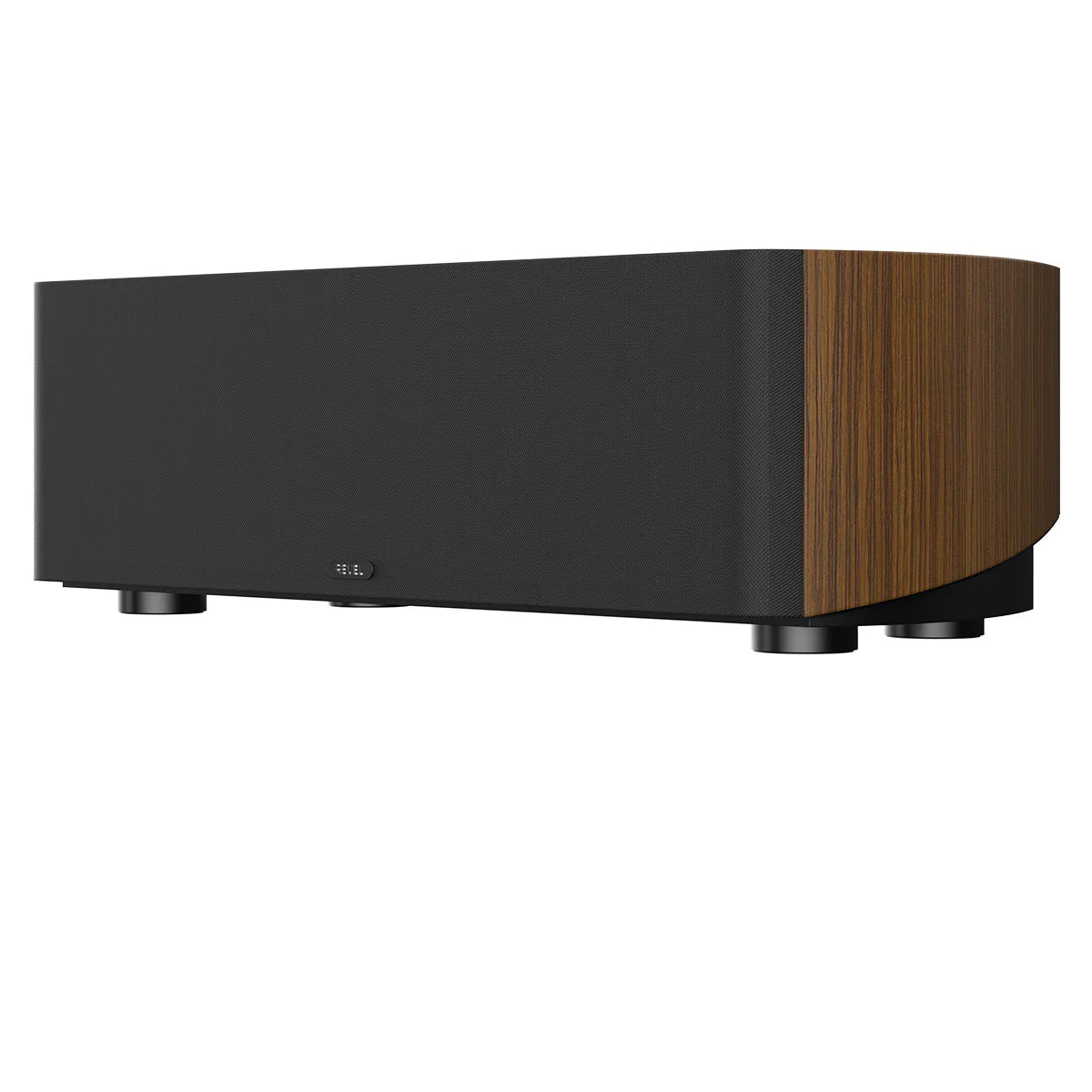

The C245 embodies luxury craftsmanship and decades of loudspeaker expertise, featuring magnetically attached grilles for a clean, seamless look with no visible fasteners. Hidden hardware and integrated trim rings add a refined touch, while a polished black accent complements the rigid, cross-braced cabinet. Gently curved cabinet sides are finished in premium wood veneers, available in natural walnut or black walnut. Every detail is designed to please the eye as much as the ear.
The C245 employs a precision 2-way crossover network featuring premium components, including air-core inductors in the tweeter circuits. These high-quality elements preserve subtle musical details that would otherwise be lost. This coupled with the dual MCC woofers produces excellent dialogue and is the perfect addition to a home theater system. Revel’s world-class engineering team utilizes high-order crossover slopes and a proprietary 7th-generation Acoustic Lens waveguide geometry to achieve seamless transducer integration, delivering exceptional accuracy and natural sound reproduction.

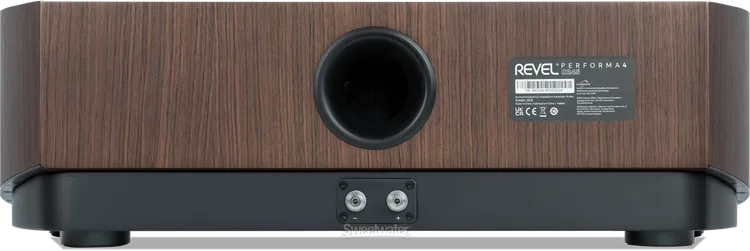

5-way binding posts provide listeners with flexible, high-quality connection options, including banana plugs, spade lugs, pin connectors, or bare wire.
| Model | Revel C245 |
|---|---|
| Description: | 2-Way Dual 5.25" Center |
| Type: | Center Channel |
| Crossover Type: | High Order 2-Way with Film Capacitors and Air Core Inductors |
| Low-frequency Transducer Size: | 2 x 5.25" (130 mm) |
| Low-frequency Transducer Quantity: | 2 |
| Low-frequency Transducer Basket | Cast Aluminum |
| Low-frequency Transducer Material: | Aluminum Cone with Deep Ceramic Coating |
| Low-frequency Voice Coil: | 1.5" (38 mm), Four-layer Copper |
| High-frequency Transducer Size: | 1" (25 mm) |
| High-frequency Transducer Quantity: | 1 |
| High-frequency Transducer Basket | Cast Aluminum |
| High-frequency Transducer Material: | Aluminum Dome with Ceramic Coating |
| High-frequency Voice Coil: | 1.25" (32 mm), Two-layer Copper |
| Crossover Frequency: | 2.2 kHz |
| System Power Rating | 30 W to 200 W |
| Sensitivity: | 90 dB @ 2.83V/1m |
| Nominal Impedance: | 6 ohms |
| Low-frequency extension: | 55 Hz (-10 dB) |
| Frequency response: | 55 Hz to 40 kHz (-10 dB) |
| Maximum SPL @ 1m: | 109 dB peak |
| Recommended Listening Position: | 2 to 4 m |
| MDF cabinet: | Yes |
| Cabinet design: | Low-turbulence Rear-firing Port |
| Finish options: | High gloss Walnut, White, Black |
| Driver location: | Front |
| Grille: | Magnetic |
| Height | 7.5" (191 mm) |
| Width | 22.7" (577 mm) |
| Depth | 11.1" (282 mm) |
| Weight | 33.0 lbs (14.97 kg) |
| Shipping carton height | 12.6" (320 mm) |
| Shipping carton width | 27.9" (709 mm) |
| Shipping carton depth | 15.4" (391 mm) |
| Shipping weight | 39.0 lbs (17.69 kg) |
