Revel's beryllium-tweeter in-ceiling speaker

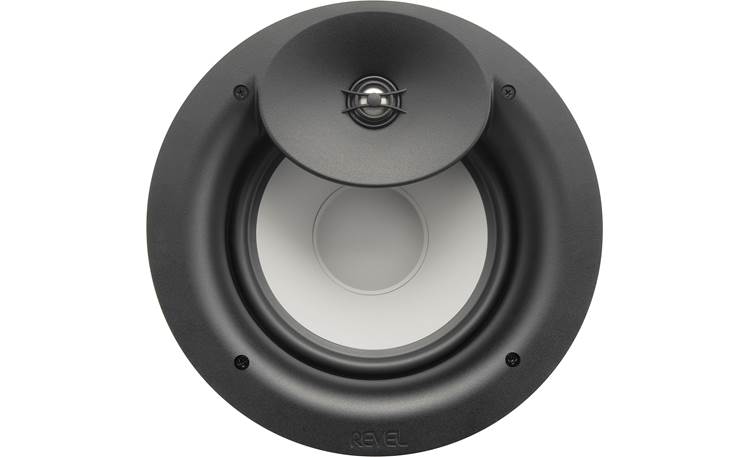

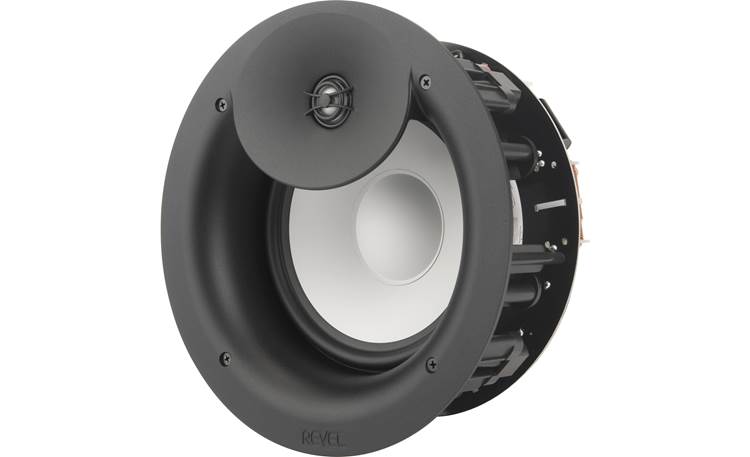

This high-quality in-ceiling speaker from Revel is ideal for an audiophile-grade music system, or as rear or height speakers in a high-end home theater setup. You'll hear super-clear high-frequency detail for its 1” beryllium tweeter. Beryllium is known for being both ultra-light and very rigid — properties that allow the tweeter to deliver exquisitely smooth detail without distortion. Dual neodymium magnets control the tweeter's movement with precision, and an acoustic lens waveguide provides a cohesive sound stage throughout your room.

The 8" Deep Ceramic Composite” (DCC) woofer features an aluminum cone sandwiched between two layers of ceramic coating. This design provides excellent damping for tight bass response.

And Revel backs this speaker with a lifetime warranty.

Product highlights:

• ideal for a high-performance in-ceiling music system or overhead surround effects in a home theater system
• 1" beryllium dome tweeter
  • dual neodymium magnets for extremely accurate high-frequency reproduction
  • acoustic lens waveguide ensures seamless sound with woofer
• 8" Deep Ceramic Composite (DCC) woofer
  • coarse ceramic coating on either side of aluminum cone for excellent damping and reduced distortion
  • optimized motor magnetics for improved mid- and low-frequency performance

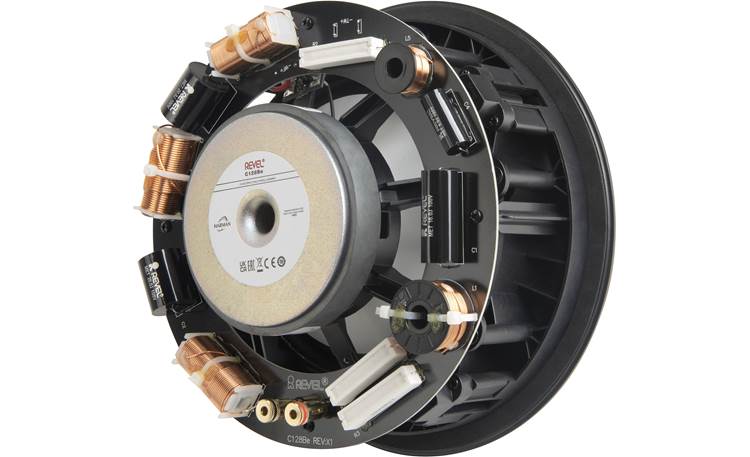

• high-order crossover network delivers accurate timbre reproduction
• frequency response: 46-40,000 Hz (-6 dB)
• recommended amplifier power: 50-150 watts at 4 ohms
  • high preformance amplifier recommended
• nominal impedance: 6 ohms; minimum impedance: 4 ohms
• maximum SPL: 107 dB
• sensitivity: 88 dB

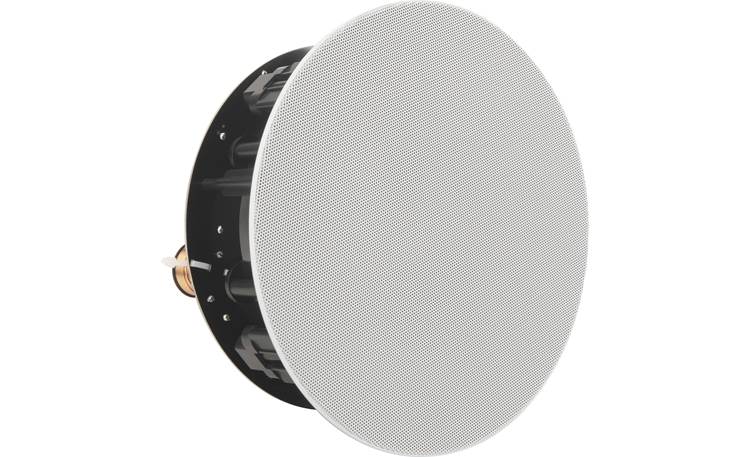

• zero-bezel magnetic grille is paintable to match your decor
• cat's claw mounting system for wallboard or optional C288BeBB backbox installations
• speaker cutout diameter: 9-1/2"
• mounting depth: 5-1/8"
• dimensions with grille: 10-13/16" diameter x 5-5/16" deep
• weight: 8.6 lbs. (with grille)
• warranty: lifetime
