 Reiki SuperSwitch

• The multi award-winning Reiki Audio SuperSwitch is a dual-shielded audiophile network switch optimised for pre-streamer installation.



  The SuperSwitch is available in its original twin port configuration and as a 3 port (dual output) model. For optimal performance we advise against leaving open ports, so unless you need the additional connectivity offered, we recommend purchasing a single output (2-port) SuperSwitch.




• Level Guide







  The SuperSwitch is available in 2 levels.

  Plus: with ultra low noise iFi iPower 2 PSU. With a slot in “tip” to suit your country/region. We will send the iFi slot-in tip suitable for the country of your shipping address unless you tell us otherwise.

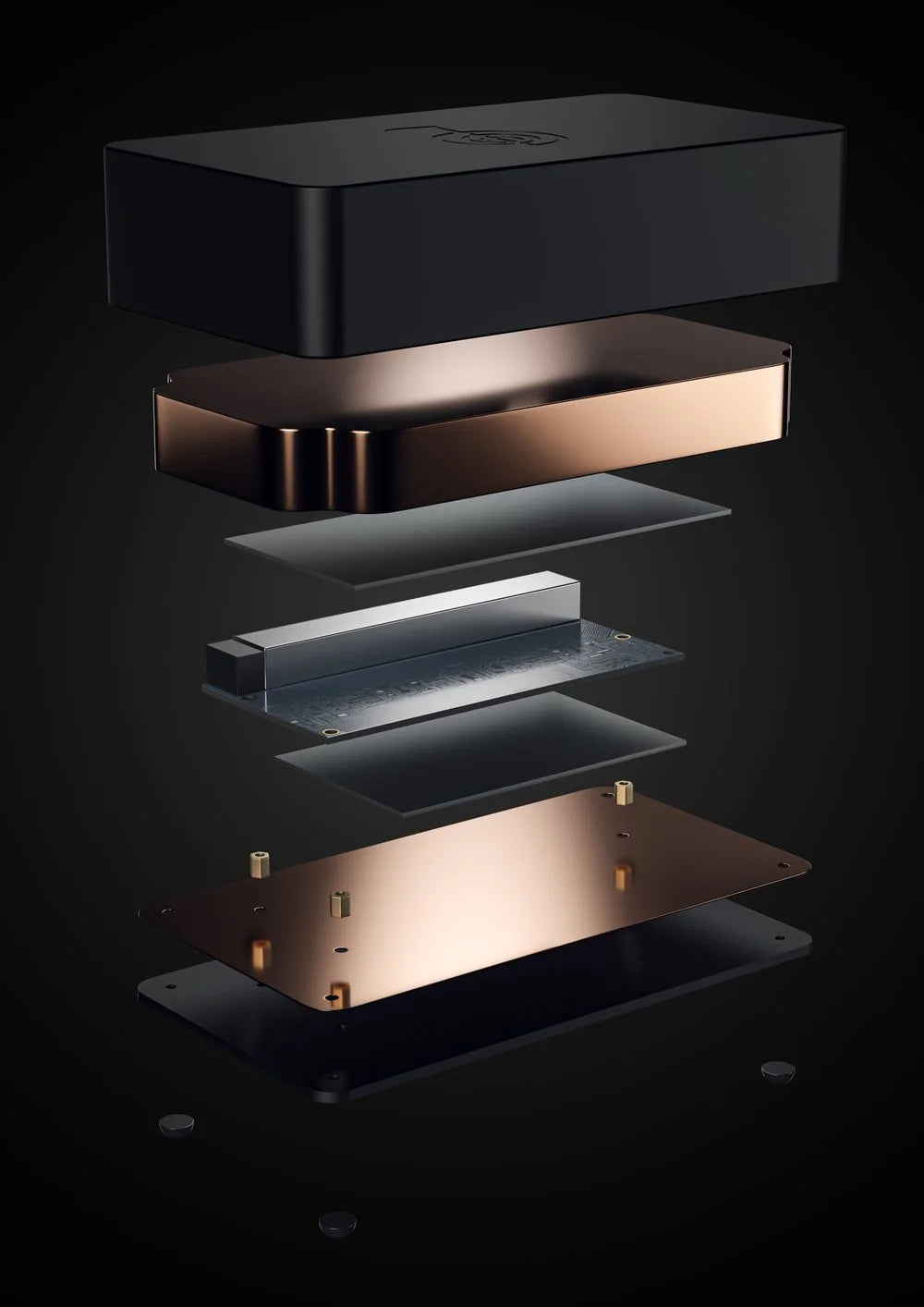

  PRO: with custom-designed PRO Linear PSU for enhanced performance. We commissioned a master of the craft to design the internals of our PRO Linear PSU, a class-leading low impedance design using high quality components to provide the Superswitch with stable, clean, low ripple, low noise DC power to release the true potential of your Superswitch. Echoing the Superswitch’s superb aesthetics, our PRO Linear PSU combines class-leading custom-designed low noise circuitry with classic Reiki Audio attention to detail including a beautiful milled aluminium case and no LED’s. The PRO Linear PSU’s 5mm aluminium top plate perfectly accommodates the Superswitch; together with the copper-lined 5mm aluminium base plate of the Superswitch, there is therefore one layer of copper and 10mm of aluminium isolating the Superswitch circuitry from the PSU’s circuitry and transformer.




• Technical Details







  SuperSwitch

  • Gigabit switch

  • 5mm aluminium case, copper-lined

  • Case grounding post (4mm spade)

  • Requires 5v DC (2.1mm barrel)



  Pro PSU

  • Fully linear PSU delivers stable, clean, low ripple, low noise DC power

  • 5mm aluminium case

  • Case grounding post (4mm spade)

  • 5v DC output via GX16-2 socket (for Reiki Audio devices)




• Dimensions







  SuperSwitch

  Height: 45mm
  Width: 182mm
  Depth: 110mm (with grounding post)

  Weight: 850g



  Pro PSU

  Height: 70mm
  Width: 250mm
  Depth: 148mm (with grounding post)

  Weight: 2.75kg
