Rega Aura Moving Coil Phonostage

PRICE:
Regular price $6,695.00 USD
Regular price $6,695.00 USD Sale price $6,695.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

description

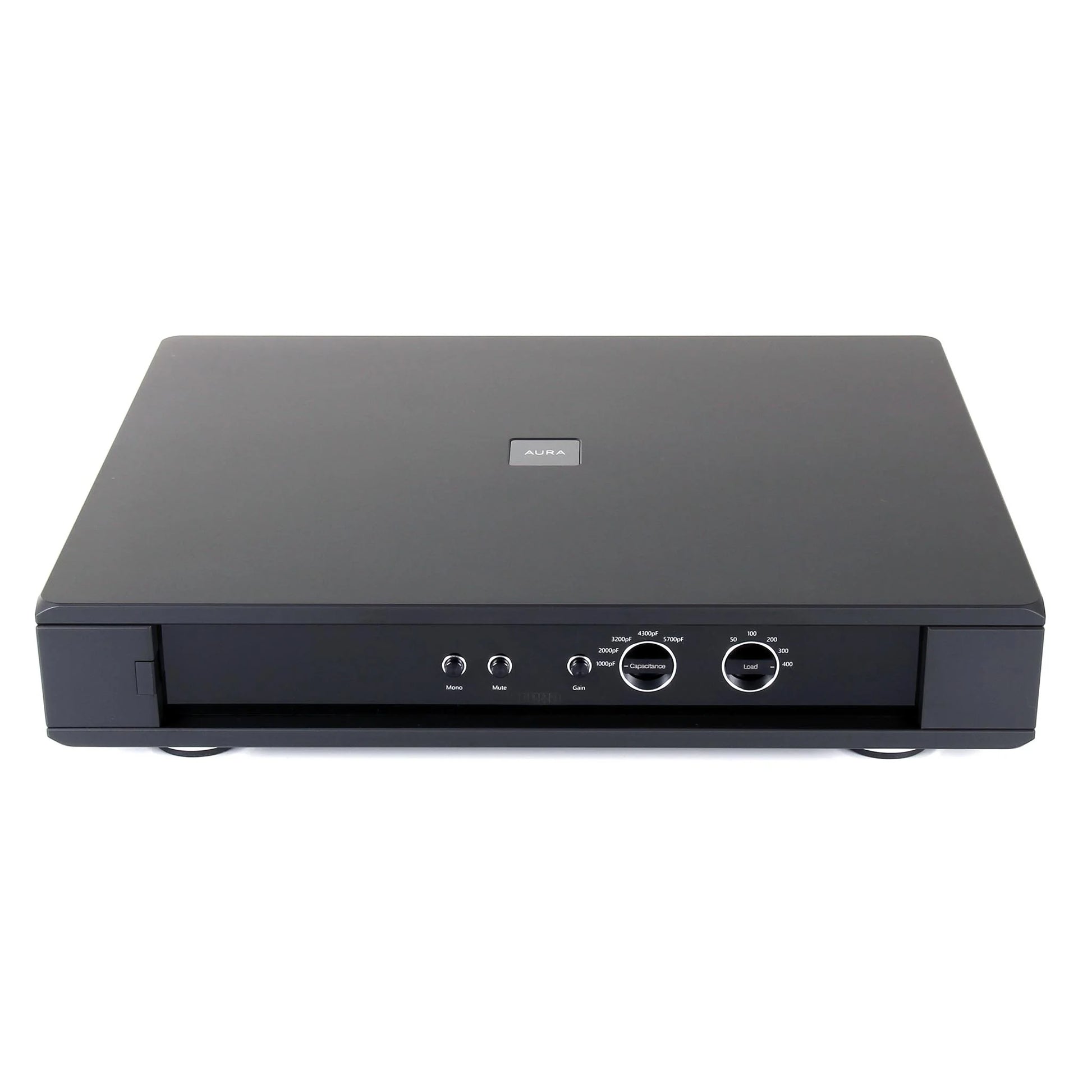

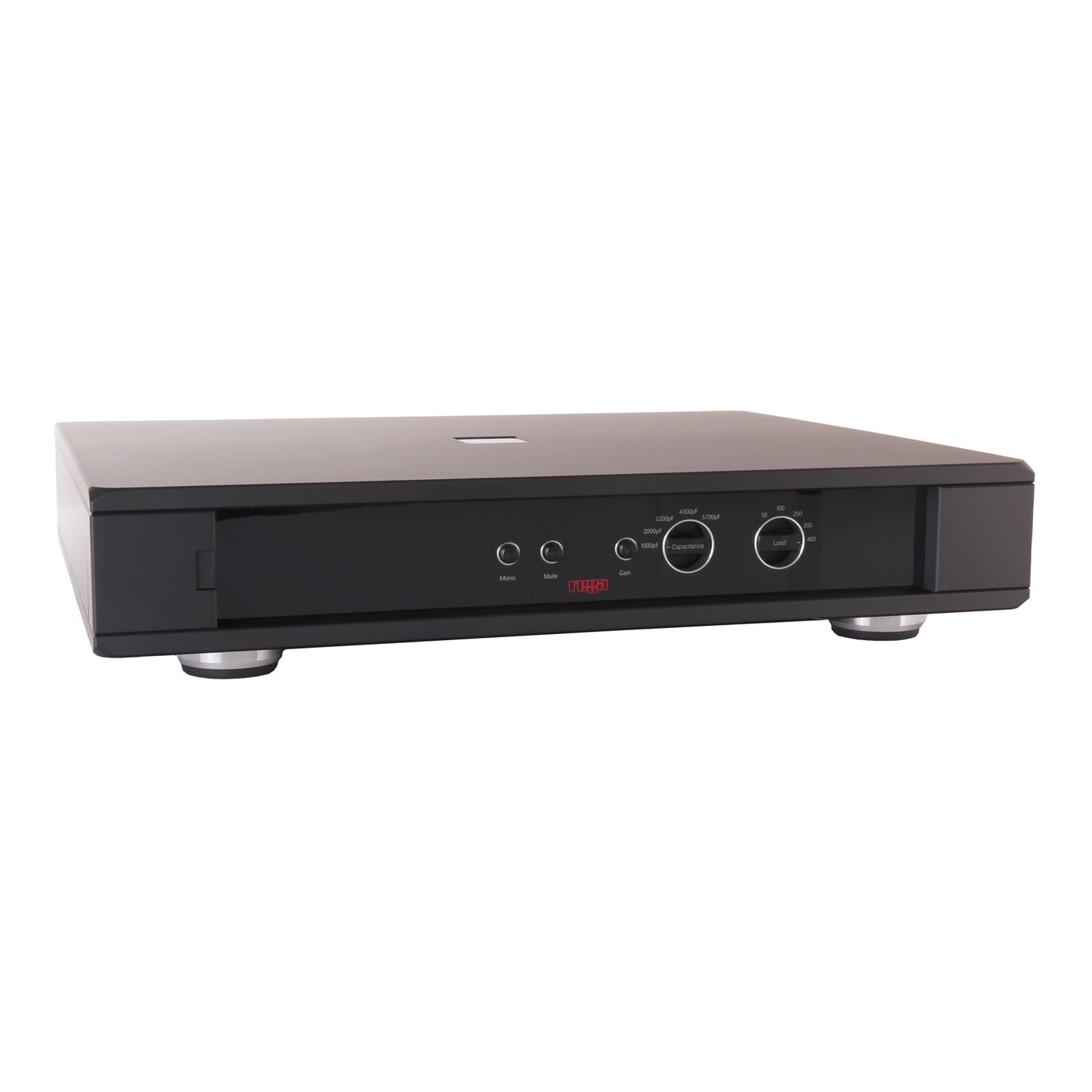

Rega Aura Moving Coil Phonostage

The reference phonostage you've been waiting for from Rega. MC only with no superfluous features, and easy front-panel controls for cartridge settings

The reference Aura MC stage is the culmination of decades of electronic design development. It is a fully adjustable, three-stage, all symmetrical pre-amplifier designed purely to extract the very best performance from your moving coil cartridge and vinyl playback system.

Built into a completely re-designed custom case, the Aura is dedicated to moving coil cartridges and stays clear of any compromises. There are no superfluous functions as they obstruct the signal path and degrade the sound quality.

Design Innovation

The Rega Aura is a three stage, all symmetrical pre-amplifier. The first stage is a symmetrical, complementary class-A amplifier, using parallel connected Linear Systems ultra-low noise FET (Field Effect Transistor) transistors configured as a symmetrical compound pair input stage. The use of FET transistors ensures there is no bias current flowing in the cartridge coil so as not to upset the delicate magnetic geometry of the cartridge. The input circuit configuration also alleviates the use of any coupling components between the cartridge output and the input stage FET transistors, which would degrade the sound. The complementary ultra-low noise FET transistors are carefully graded and matched for optimum performance. This stage drives the passive high-frequency part of the RIAA equalization stage.

The second stage is a symmetrical, class A, differential amplifier with a common base driver stage; this is also used as the active amplifier in the low-frequency part of the RIAA equalization stage. The third stage inverts the signal to provide a balanced output along with the output of the second stage; the third stage uses the same circuit topology as used in the second stage. The power supply is a symmetrical, discrete tracking power supply using fast diodes and a low noise voltage reference. Each stage has its own localized power supply and LED referenced current generators. To maximize headroom, the Aura has a power supply voltage, which is 60% higher than normally found in such a pre-amplifier. Very high quality, polypropylene capacitors have been used in the signal path. 1% tolerance polypropylene capacitors are used in the RIAA EQ stages and audio grade capacitors are used in the rest of the circuit. Gain, mute, and mono switching is implemented using high-quality relays.

Specifications

Input sensitivity (200 mV on unbalanced output)
67 μV - 69.5 dB Gain Setting I
131 μV - 63.5 dB Gain Setting II

Gain input to unbalanced output
63.5 dB min
69.5 dB max

Input load: 50, 100, 150, 300, 400 Ω

Capacitive load: 1000, 2000, 3200, 4300, 5700 pF

Output resistance (balanced, unbalanced): 100, 200 Ω

Dimensions (HWD): 17.1" x 13.78" x 3.46" (435 x 350 x 88 mm)

Weight: 28.66 lb (13 kg)
