description

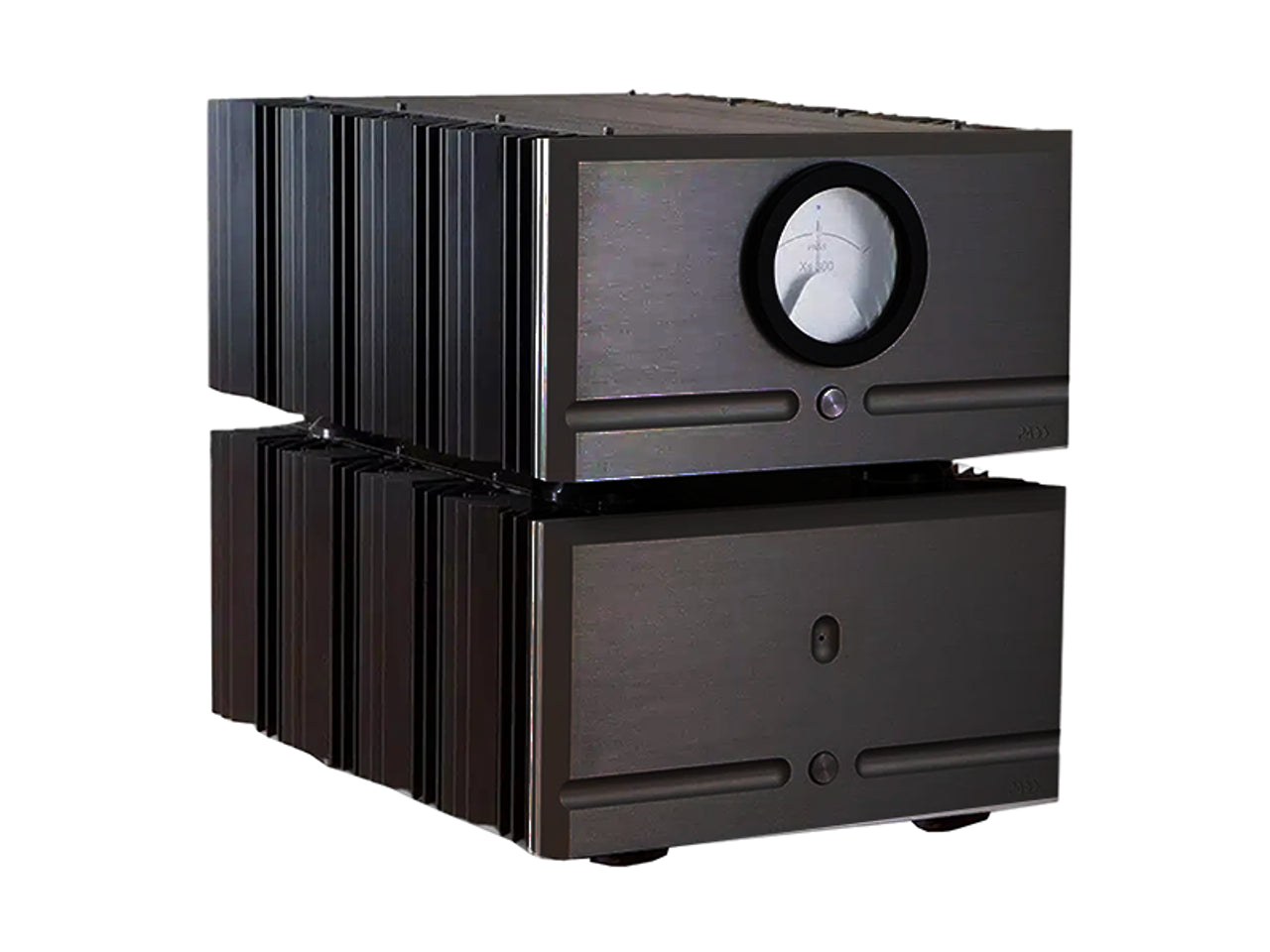

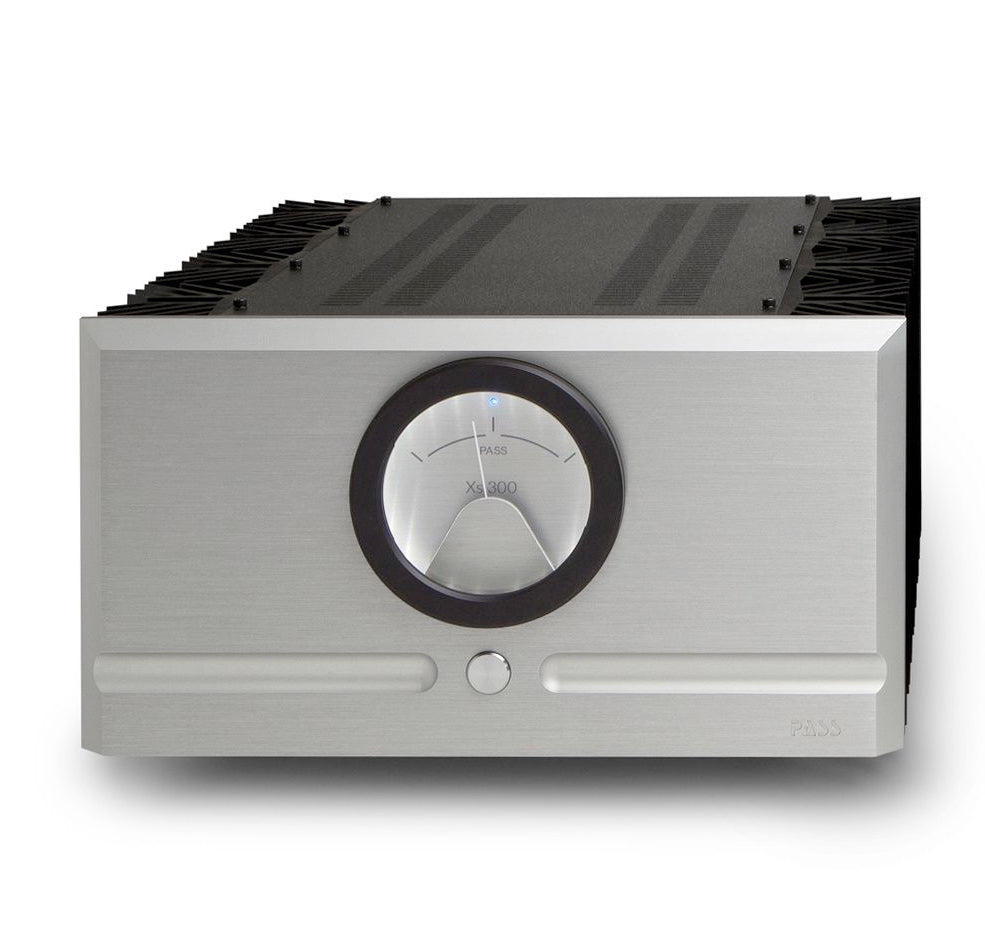

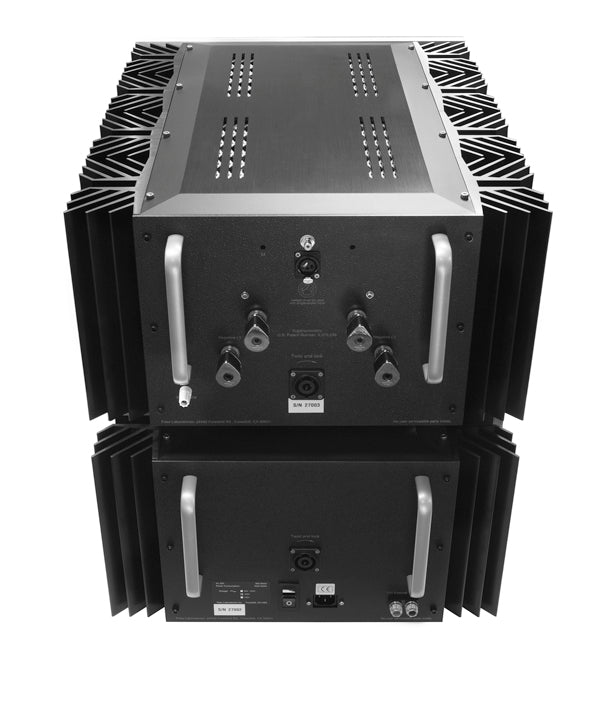

Pass Labs Xs 300 monoblock amplifier

The Xs series monoblock power amplifiers represent the reference-quality, state-of-art amplifiers from Pass Laboratories. Through years of “spare no effort” endeavor, they represent the true pinnacle of music reproduction. The Pass Labs Xs 300 amplifier delivers 300 watts, employs separate power supply and amplifier chassis’ for lower noise and utilizes higher-power constant-current source. Single-ended bias current not only lowers distortion, but facilitates better control of its harmonic structure, tweaked and optimized through endless listening tests for your musical pleasure.

Specifications
Class - A
Type - Mono
Gain (dB) - 26
Inputs - XLR/RCA
Power Output /ch (8ohms) - 300
No Output devices (/ch) - 112
Power Consumption (Watts) - 900
Standby Power Consumption (Watts) - <1
Number of Chassis - 2
Unit Dimension (W x D x H) (In.) 19 x 27.5 x 11 x 2
Unit Weight (LBS) - 134/172
