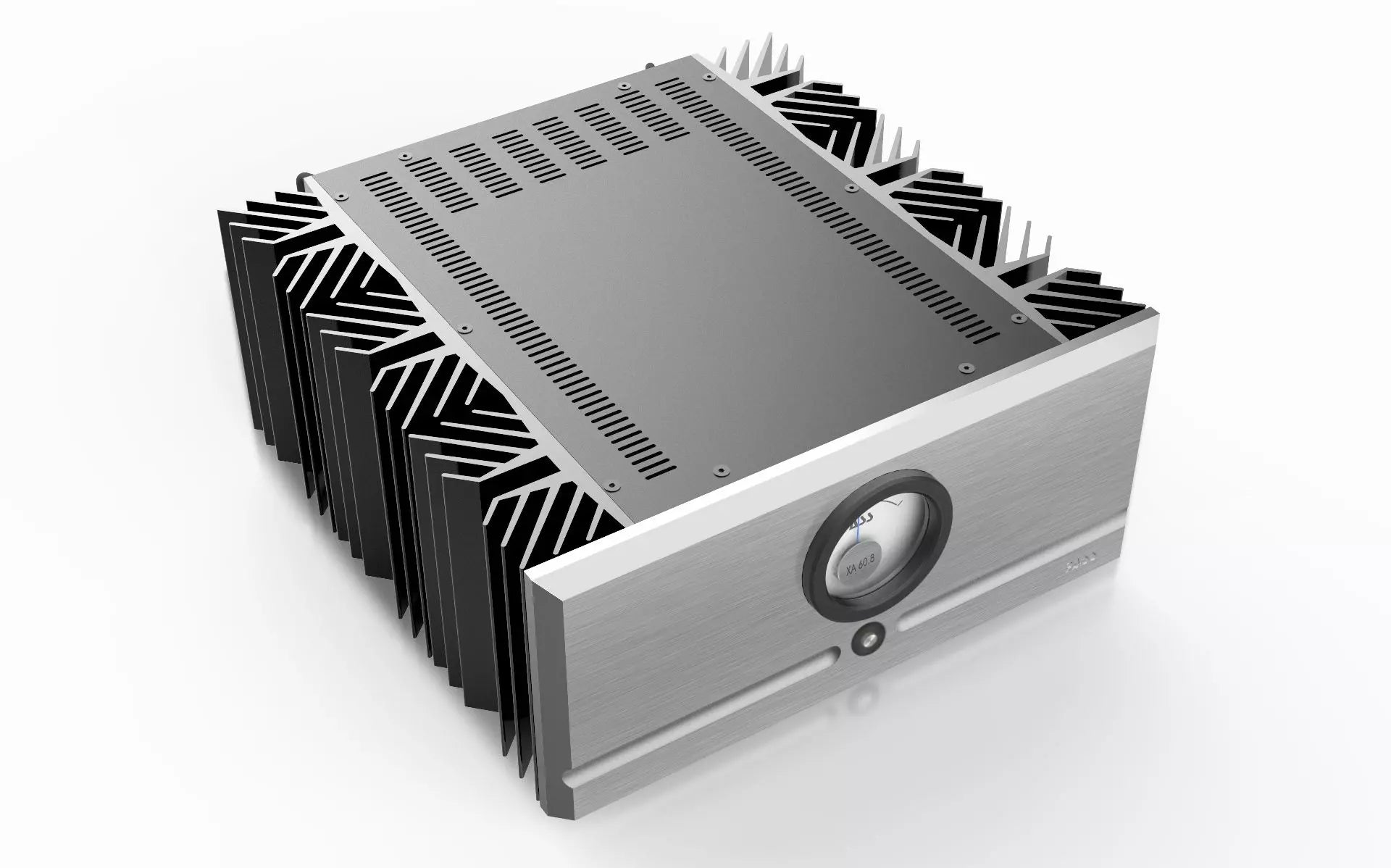

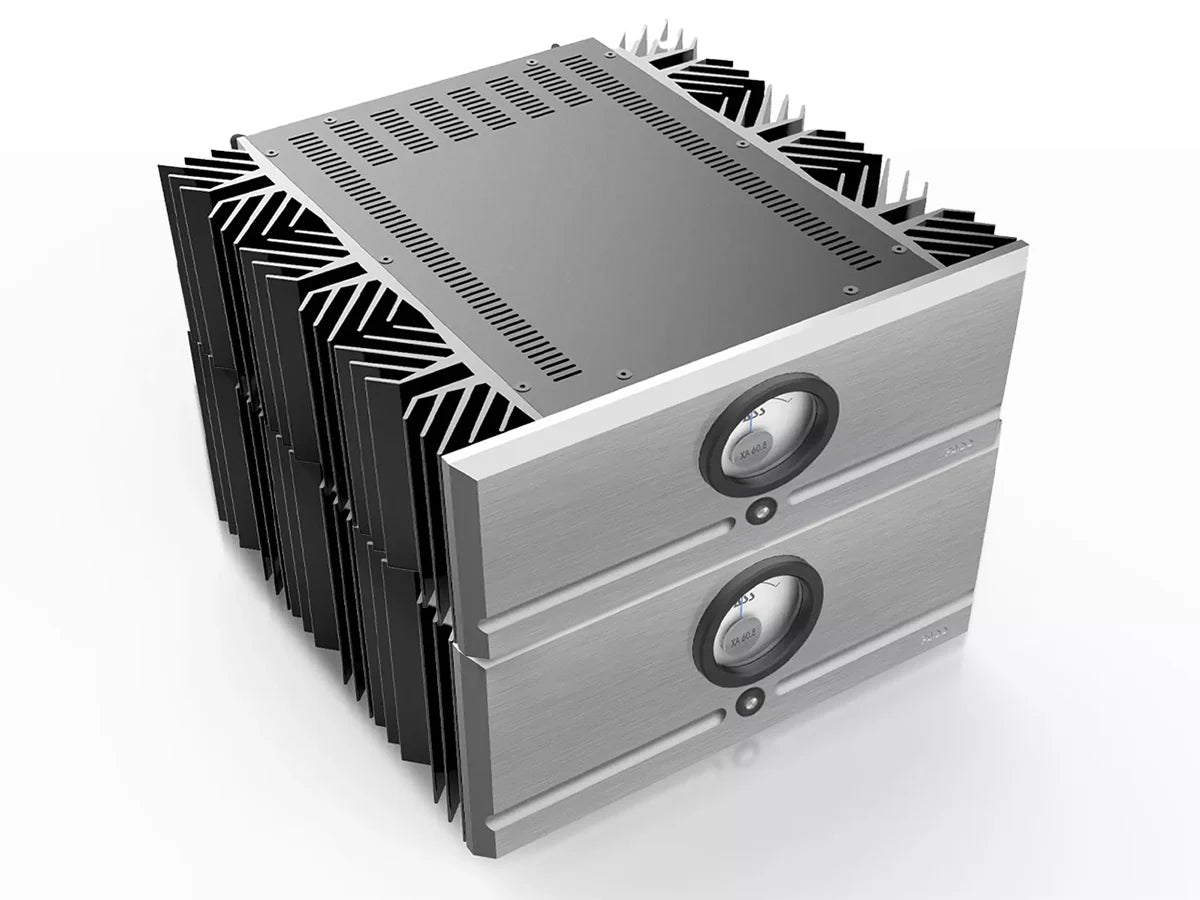

Offering all the sonic benefits of the .8 amplifier line, a pair of Pass Labs XA60.8’s also grace the listener with mono-block performance. There are dedicated power supplies for each channel. In addition, there is dedicated circuitry for each channel and dedicated chassis’ for each channel. Therefor the unit offers a cleaner, better defined image and soundstage.
Beautiful to the ears and eyes, the Pass Labs XA60.8 achieves levels of focus and intimacy normally associated with the finest tube amplifiers. The Pass Labs XA60.8’s do all of this while providing greater control and power.
Specifications
| Class | A |
| Type | Mono |
| Gain (dB) | 26 |
| Full Pwr @ 26 dB gain (V) | 1.10 |
| Low Frequency Response | 1.5 Hz |
| High Frequency Response | 100 KHz |
| Power Output /ch (8 ohm) | 60 |
| Input Impedance (SE & BAL Kohms) | 50/100 |
| Damping Factor | 150 |
| Power Consumption @ Idle (Watts) | 370 |
| Unit Dimension (W x D x H)(In.) | 19 x 21.25 x 7.5 |
| Unit Weight (LBS) | 88 |
