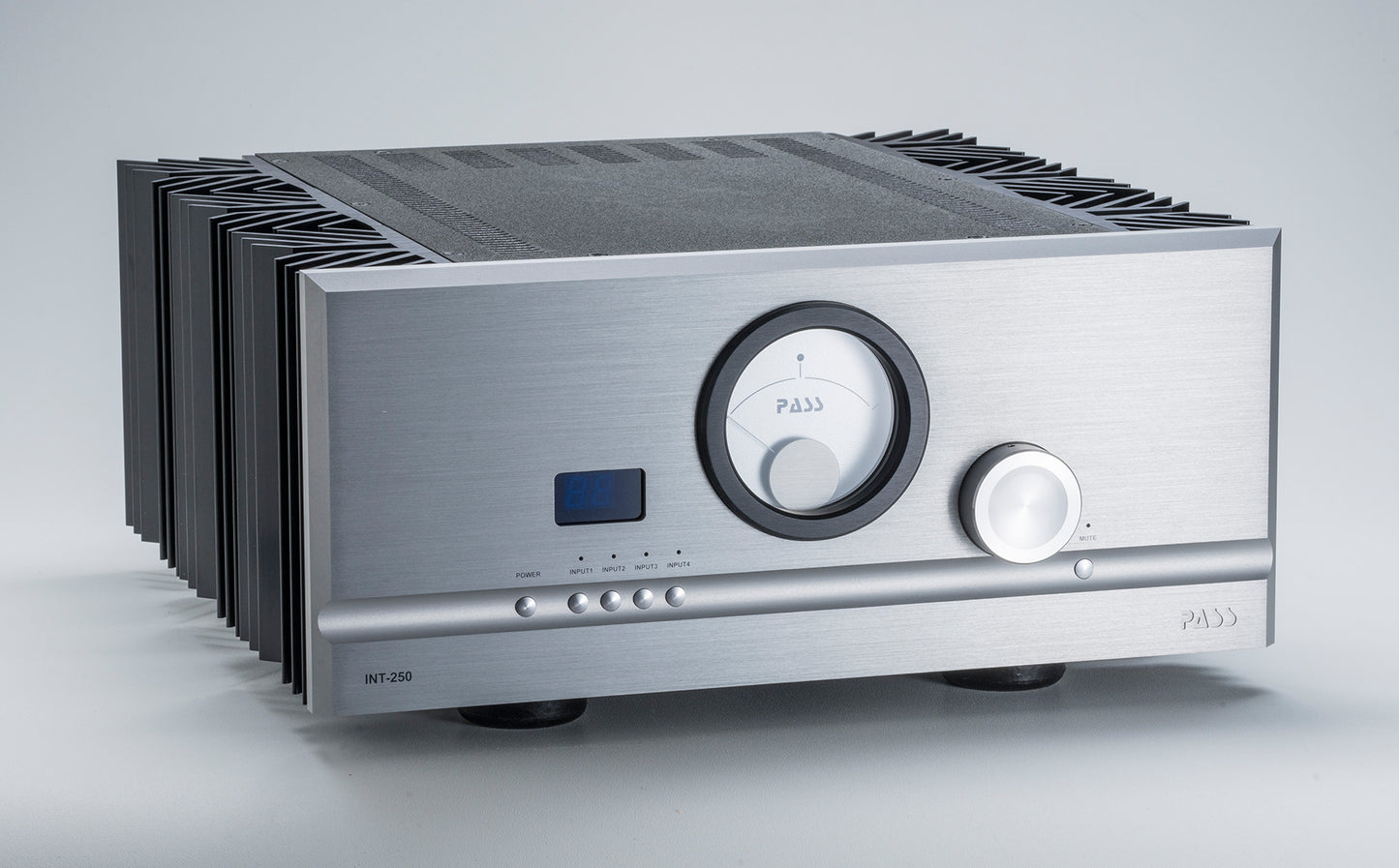

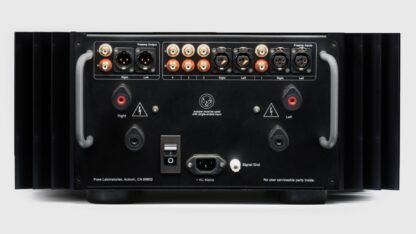

Pass Labs INT-250

Like the INT-60, the Pass Labs INT-250 utilizes the synergies developed in the .8 series power amplifiers. Unlike the INT-60, however, it brings 250 watts per channel of listening pleasure. With higher power MOSFETs and more of them, the Pass Labs INT-250 drives large, demanding and relatively inefficient loudspeakers at higher volumes without batting an eyelash, singing beautifully. Just incredible music from one component.

SPECIFICATIONS
Pass Labs INT-250 Integrated Amplifier

Class
AB
Type
Stereo
Gain (dB)
30/36
Volume control (1dB steps)
63 dB
Remote
Yes
Inputs
4
Outputs
2
Frequency Response
-6 dB @ 80 KHz
Power Output /ch (8 ohm)
250
Distortion, (1 KHz, full power)
1%
Input Impedance (Kohms) ea Leg
45
Damping Factor
150
Output Noise (uV)
<250 Input CMRR (dB)
-60
DC Offset (V)
0.05
Leaves Class A pk
15
Power Consumption (Watts)
450
Dimensions (W x H x D)
19 x 10 x 15.1
Weight (LBS)
105
