The Ortofon's greatest phono cartridge ever, the MC Diamond delivers recorded music like you’ve never heard it before.
Ortofon aspires to provide the ultimate musical experience through a mixture of innovation, technical expertise and inspiration. This new state of the art phono cartridge, representative of numerous Ortofon design elements and ideals, is truly exemplary of the highest degree of performance possible in contemporary analogue playback technology.

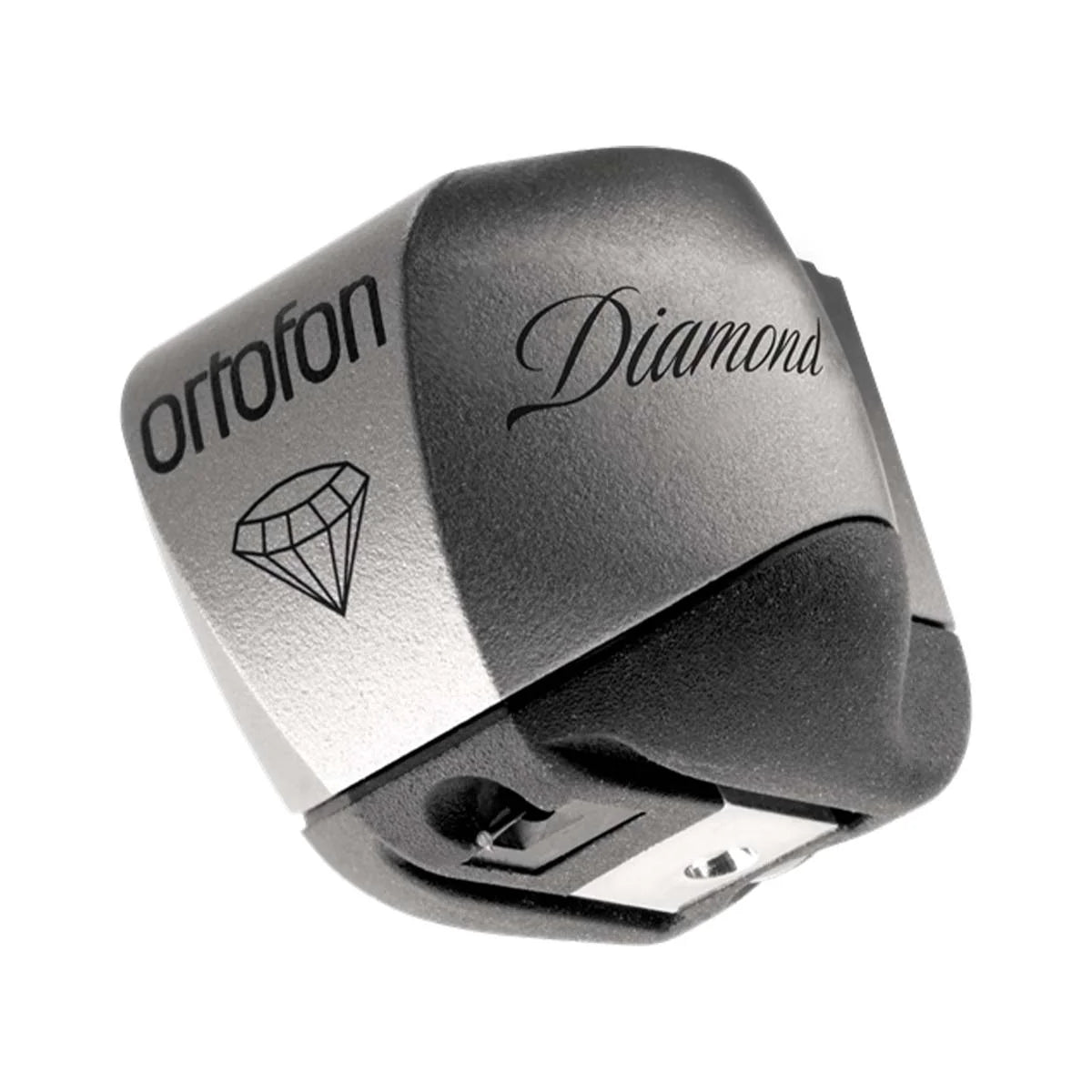

Featuring a titanium body, optimized magnet system, diamond cantilever and a new rubber suspension, the MC Diamond provides an entirely new level of experience for audiophiles.
For the new MC Diamond cartridge, the Ortofon Wide Range Damping System (WRD) has been re-engineered to include an enhanced rubber suspension, specially developed in-house.
The WRD system was originally introduced in the MC 20 Mk II in 1979 and was also subsequently used in the MC A90, MC Windfeld, Xpression, MC Anna, MC Anna Diamond and MC Century phono cartridges. In this system, a small, heavy platinum disc is sandwiched between two rubber absorbers, both with different properties. This ensures not only an exceptional tracking performance, but also creates a perfect damping through the entire frequency spectrum. Because of this, distortion and resonance are virtually eliminated entirely.
The new rubber compound formula is based on the Multi Wall Carbon Nano Tube (MWCNT) highly efficient nano filler. The new MWCNT-based compound offers desirable mechanical properties, which allow for optimal interaction between compliance and damping, that improves stability and playback and ensures unparalleled sound quality.

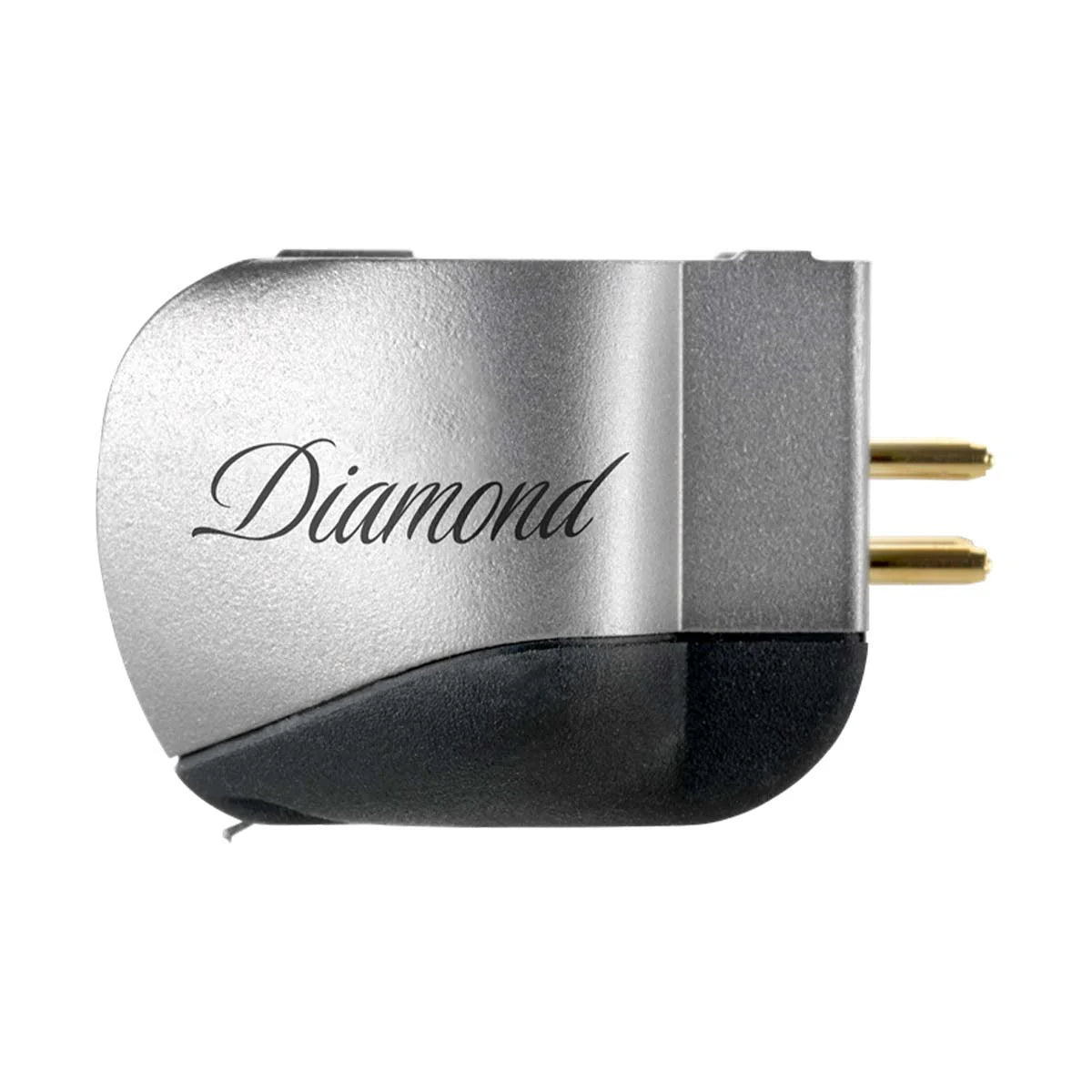

The cartridge body of the MC Diamond is made of titanium using Ortofon's custom Selective Laser Melting (SLM) technique. This technique allows for precise control of the density of the body, which provides extremely high internal damping, and results in a significant reduction in vibrations and enhanced sound quality.
The MC Diamond’s magnet system combines choice materials, optimized geometry, and unrivaled consistency that deliver unmatched performance. Together with the non-magnetic armature, the result is vivid, highly-accurate audio reproductions defined by nearly boundless dimensionality.
The MC Diamond makes use of Ortofon Replicant 100 diamond. This Line Contact type stylus distinguishes itself by having a narrow and long contact surface, which is as close as possible to the original cutting stylus. This ensures the most accurate reproduction, lowest distortion and extended frequency range.

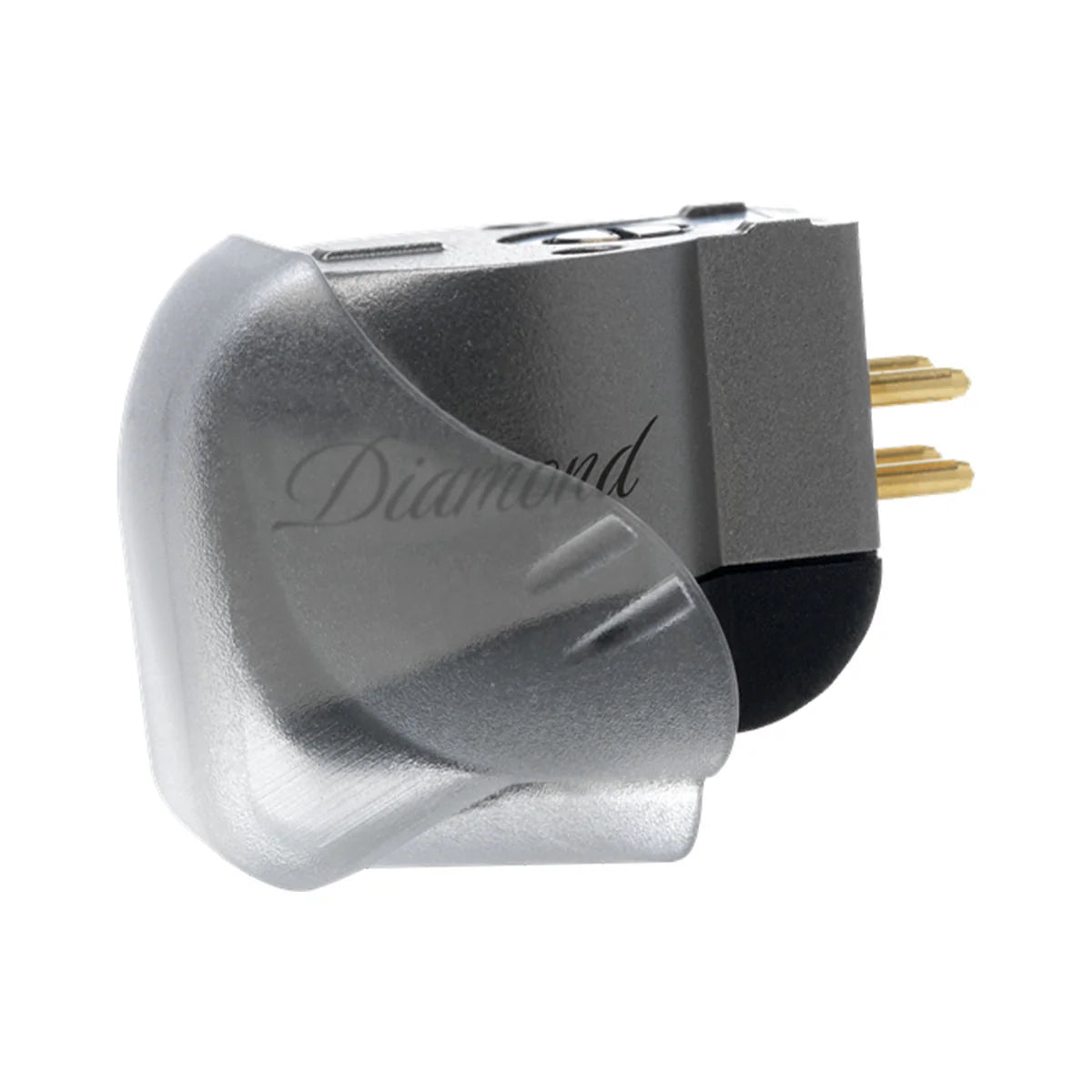

NB: The stylus guard provided for the MC Diamond is designed to be easily replaced and removed without risking contact to the fragile stylus assembly. To avoid accidental damage to the stylus or cantilever please mount the enclosed stylus guard onto the cartridge whenever the cartridge is not in use. The stylus guard should also be attached during mounting or removal of the cartridge.
The MC Diamond uses a solid Diamond Cantilever that, in combination with Ortofon Replicant 100 diamond, offers extreme transparency, speed, and responsiveness beyond any other combination. A solid Diamond cantilever provides the best possible interface between the stylus and armature, owing to its hardness and crystal structure. The improvements found in the use of a Diamond cantilever have redefined the boundaries of analogue reproduction, presenting greater inner detail, subtlety, and depth like never before.
Model MC Diamond
Output voltage at 1 kHz, 5cm/sec 0.2 mV
Channel balance at 1 kHz 0.5 dB
Channel separation at 1 kHz 25 dB
Channel separation at 15 kHz 20 dB
Frequency Response 20 Hz-20 kHz +/- 2 dB
Tracking ability at 315 Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 11 µm/mN
Stylus type Special polished Nude Ortofon Replicant 100 on Diamond Cantilever
Stylus tip radius r/R 5/100 µm
Tracking force range 2.5-2.8 g (25-28 mN)
Tracking force, recommended 2.6 g (26 mN)
Tracking angle 23°
Internal impedance, DC resistance 6 Ohm
Recommended load impedance > 10 Ohm
Coil wire material Ultra pure oxygen free copper
Cartridge body material SLM Titanium
Cartridge colour Silver/Black
Cartidge weight 17.5 g
