description

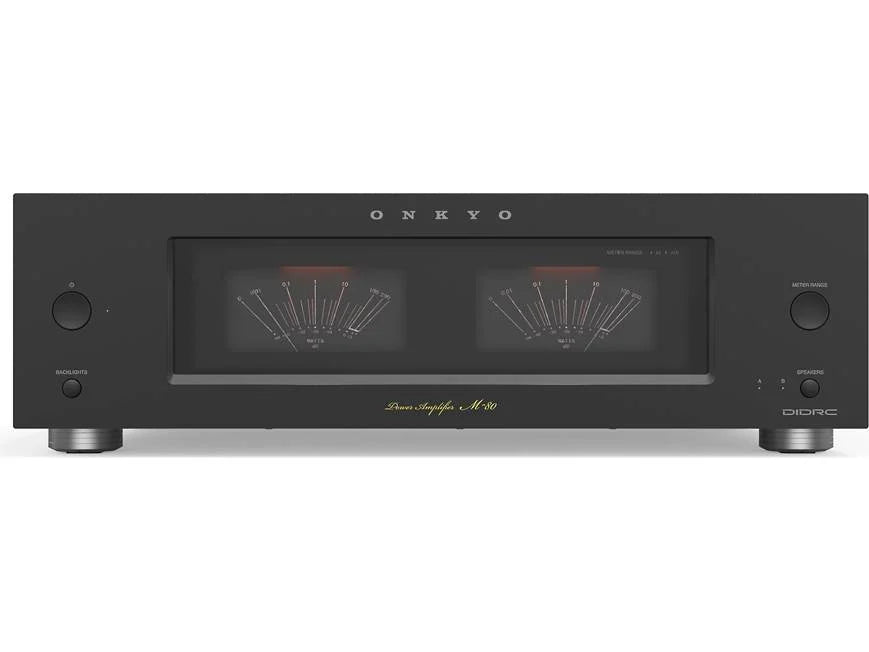

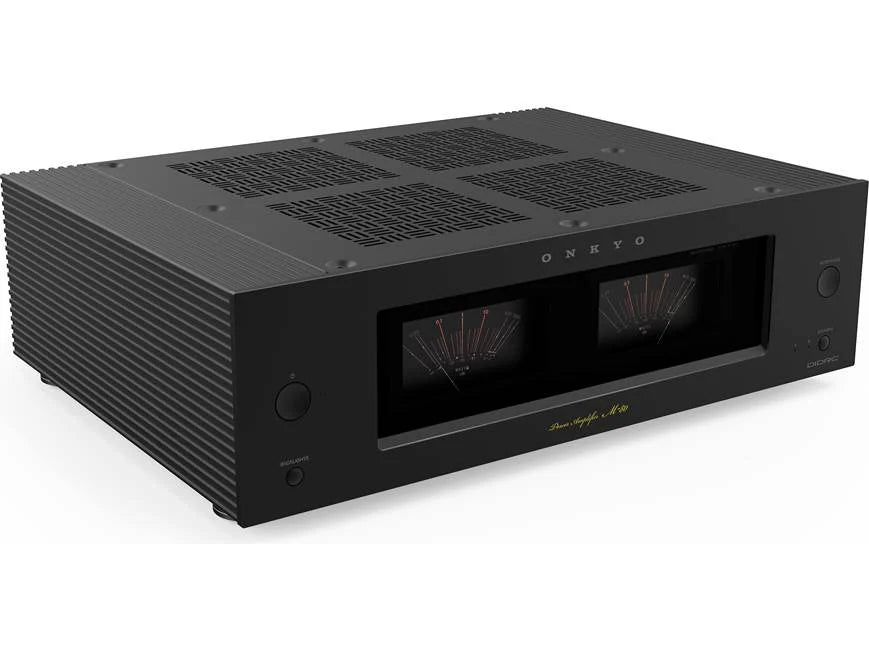

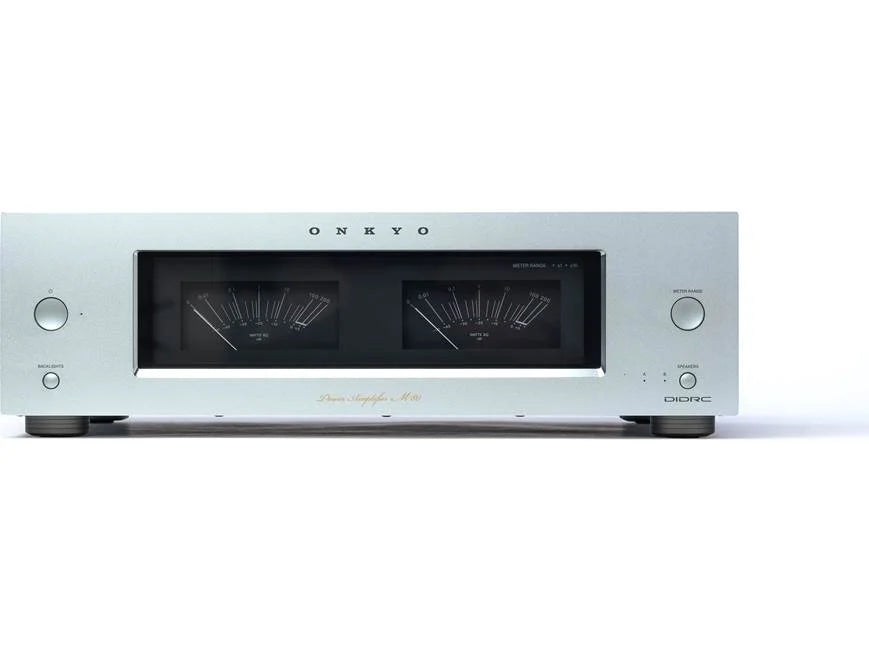

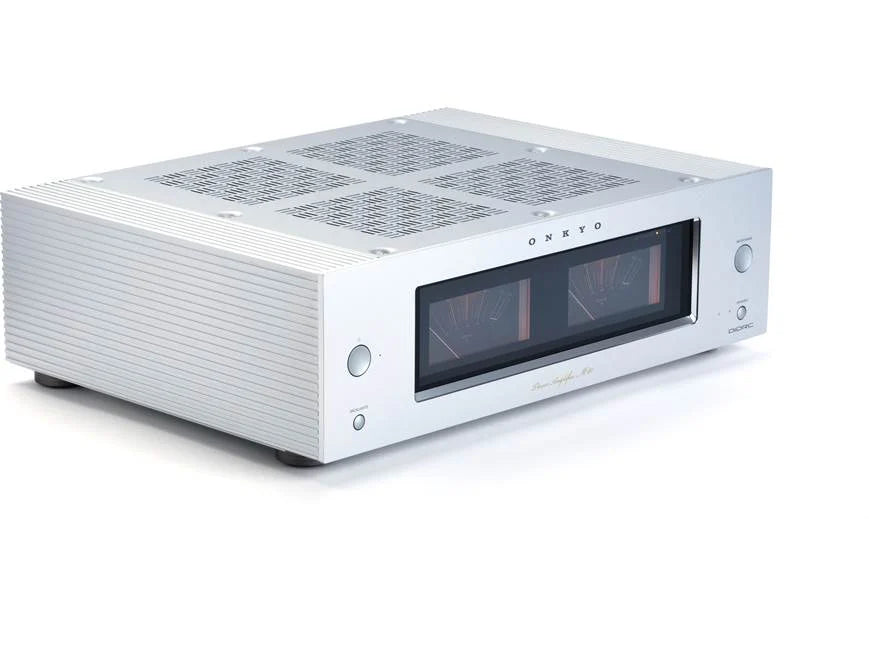

Onkyo Icon M-80 Stereo power amplifier

The Onkyo Icon M-80 2-Channel Power Amplifier is designed for the most demanding audiophiles. Featuring Symmetrical Class A/B amplification and a 3-stage Inverted Darlington output stage, the M-80 delivers 150W of high-current, low-distortion power per channel at 8 ohms. Onkyo's proprietary DIDRC technology ensures unparalleled clarity by eliminating intermodulation distortion in ultrahigh frequencies, while the fanless design and extruded aluminum heat sink provide silent operation and vibration suppression for a pristine soundstage. Encased in a sleek 5mm aluminum chassis with premium components like hi-fi grade terminals and copper bus bars, the M-80 blends modern aesthetics with uncompromising performance.

Product info:

• 130 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD with 2 channels driven (FTC Power Output Rating)
• 200 watts x 2 into 4 ohms
  • 4 ohm - 16 ohm stable (speakers A or B)
  • 8 ohm - 16 ohm stable (speakers A + B)
• frequency response: 10-100,000 Hz (+1dB, -3 dB)
• signal-to-noise ratio: 106 dB
• front-panel A/B speaker switching
• high-current Class AB amplifier design

Connections and controls:

• stereo balanced XLR
• unbalanced RCA inputs
• rear-panel input control switch
• front-panel power meters show the instantaneous peaks in the signal for each channel
• front-panel backlight control button
• rear-panel 12-volt trigger input for control from other devices (mono mini-cable included)
• copper binding post terminals accept bare wire, banana plugs, and spade lugs

Warranty and dimensions:

• 17.1"W x 5.3"H x 113.66"D
• weight: 25.1 lbs.
• warranty: 3 years
