Naim NDX 2 Network Music Player

PRICE:
Regular price $7,039.20 USD
Regular price $8,799.00 USD Sale price $7,039.20 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

No reviews

description

Overview

With its world-class performance, the versatile and upgradable NDX 2 embodies the current state of the art. A host of features such as high-res UPnPTM streaming, AirPlay, AirPlay 2, Chromecast built-in, Bluetooth (aptX HD), Spotify Connect, TIDAL, Qobuz, Roon compatibility, vTuner internet radio and multiroom streaming as well as digital and USB inputs provide all the connectivity you could wish for.

Our main focus in developing the NDX 2 network player, however, was its performance. Along with Naim’s bespoke streaming platform, we implemented an upgraded DAC and discrete analogue stages. These and numerous other improvements over its acclaimed predecessor make the NDX 2 a sonic force to be reckoned with, offering highly immersive and lively replay quality.

Technology & Craft

The Burr-Brown® PCM1792A digital-to-analogue converter working alongside our new streaming platform is one of the best available. We improved its performance even further by implementing our own digital filters and adding a discrete current-tovoltage converter immediately after the DAC.

The streaming section of the NDX 2 uses the latest Naim network card featuring lownoise, high-speed low-voltage differential signalling (LVDS) to route the digital audio signal. The higher speed is capable of decoding all HD audio formats at up to 32 bits/384 kHz or DSD128. Rather than the source acting as the digital timing master, our new streaming board turns things around and allows our DAC clock to control the flow of audio data. The data is integer-over-sampled in a SHARC DSP to an incredible 40-bit accuracy before it’s fed to the Burr-Brown DAC.

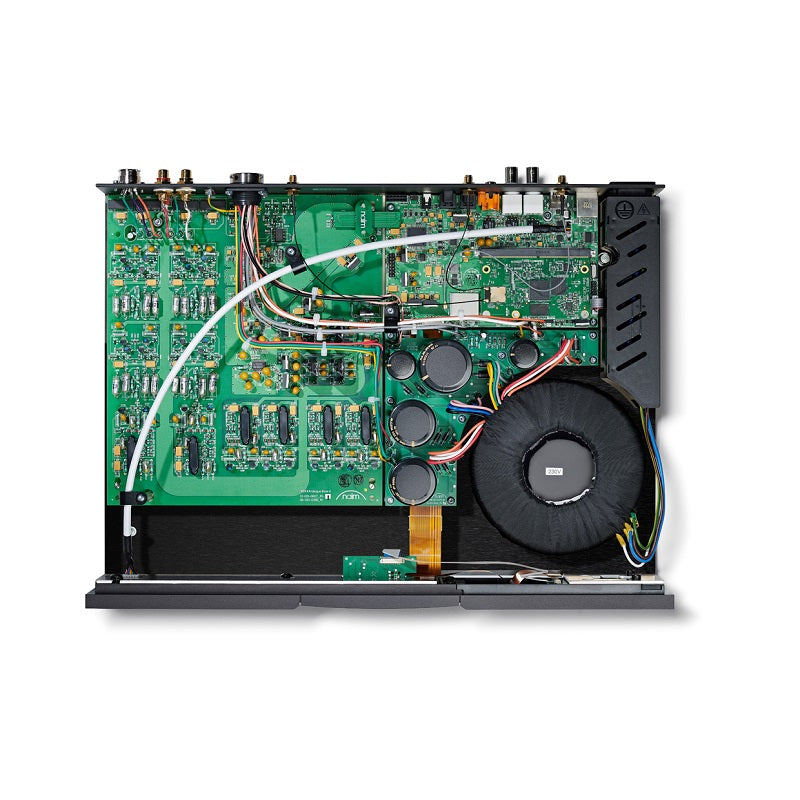

The NDX 2 features an integrated low-noise power supply with a custom-designed toroidal transformer and separate windings for the digital and analogue sections. However, the player can be upgraded with an external XPS DR or 555 PS DR power supply, giving you a marked increase in sonic authority and emotion.

During the development of the NDX 2, our engineers examined every detail, from mechanical construction, component selection and board layout. The result is a network player worthy of the Naim badge, with a sound that’s rich, detailed and engaging.

Features

UPnP-enabled to allow streaming of audio files at up to 32bit/384kHz resolution from Naim Audio hard disk servers, network-attached storage (NAS) devices or any home computer

Supports a broad range of music formats: WAV, FLAC, DSD, Apple Lossless, AIFF, AAC, Windows Media-formatted files, M4A and MP3. Gapless playback on all file formats

Four 24bit/192kHz capable digital inputs (S/PDIF) to support optimum connection to external sources

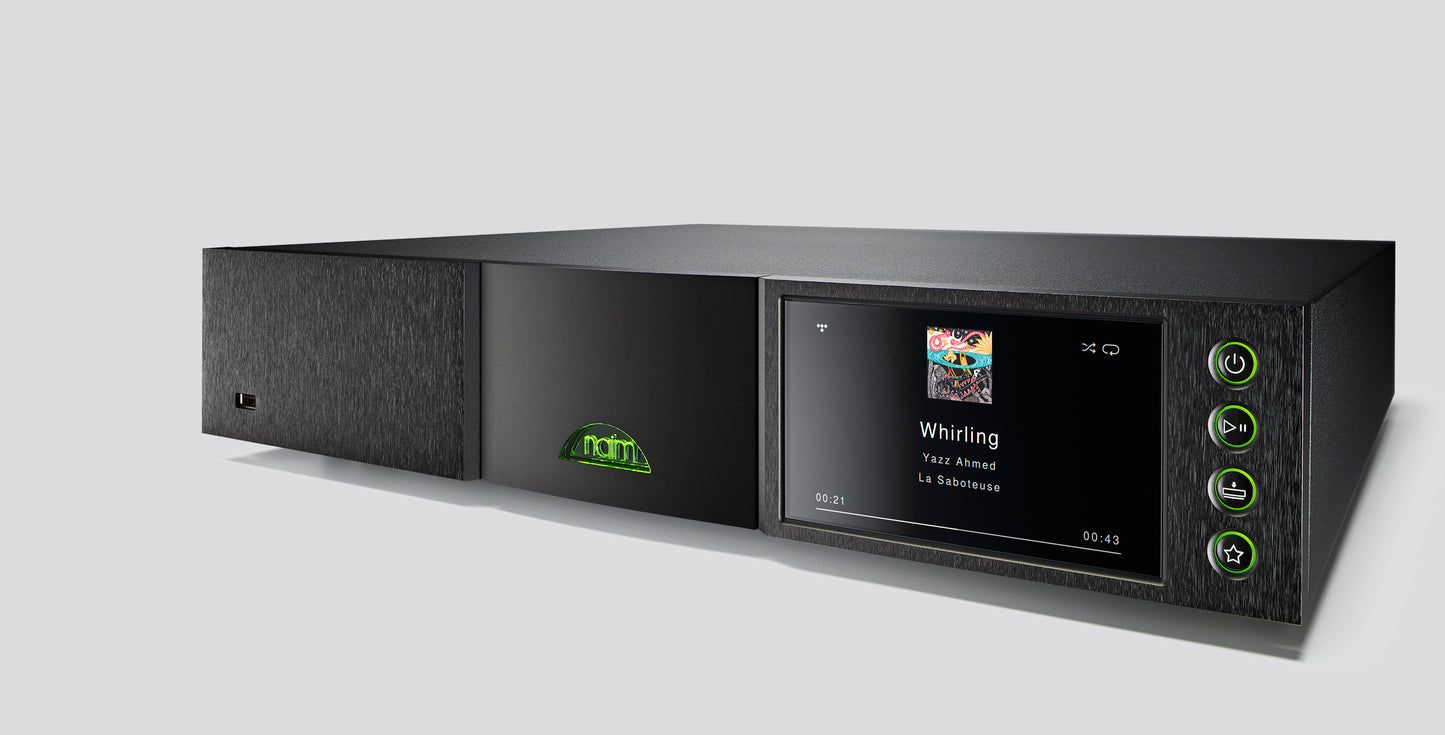

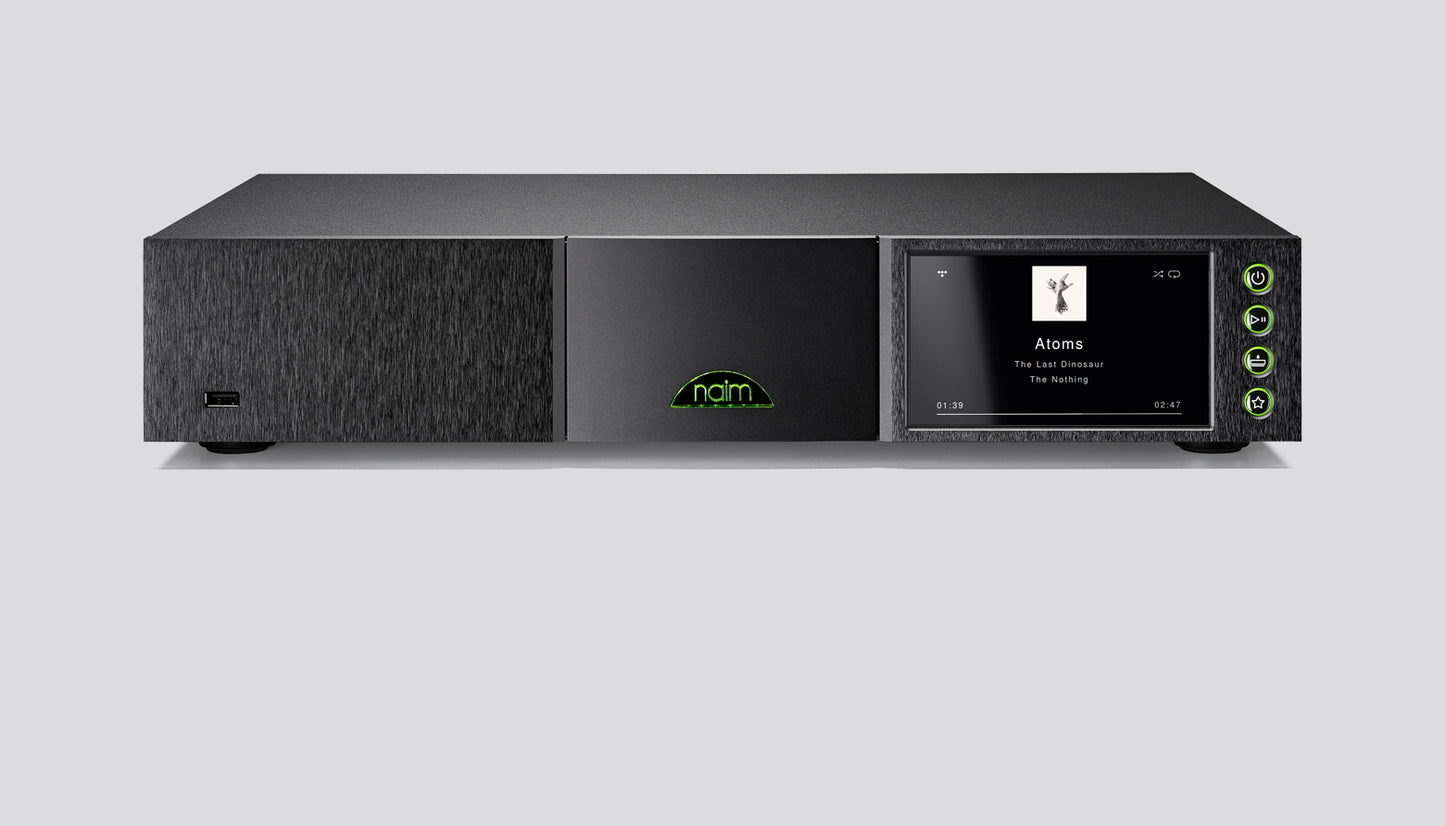

5” colour display presenting album artwork as well as track information

Built-in Chromecast allows you to stream from hundreds of supported smartphone or tablet apps (192kHz)

Apple AirPlay - stream music from your iOS device or from iTunes and Apple Music

Spotify Connect built-in to stream millions of songs from the world’s most popular streaming service

Native support for Qobuz with true high-res streaming up to 24-bit/192kHz quality.

Native support for TIDAL streaming service with free 90 day trial of lossless HiFi tier

Front-panel USB port for replay of MP3 player and USB-stored audio (1.6A charge)

vTuner 5* full-service internet radio

Multiroom & Party Mode compatible

iOS and Android Naim Audio app for intuitive control

Bluetooth connectivity with aptX HD codec for quality audio playback

Thanks to RC5 system integration, you can control compatible amplifiers that are connected to your network player directly from the Naim app on a phone or tablet.

Bi-directional, Zigbee®-compatible remote control

Roon ready - turning your music collection into a beautifully laid out catalogue

Technology & Craft

The Naim Audio NAP 300 delivers immense power without sacrificing any speed or agility to provide awe-inspiring levels of detail and musicality

Like the flagship Naim Audio NAP 500, the NAP 300 is a stereo two-chassis amplifier, one box containing the audio amplifier and the second housing the power supply. Improved earthing arrangements have resulted in an entirely new circuit topology built on a very high quality, anti-resonance main audio circuit board. The NAP 300 uses the same NA009 transistors that were custom-designed for the Statement NAP S1. These outstanding components each provide up to 80 Amps and 350 watts, negating the need to use parallel pairs of transistors (which always has a negative effect on sound). Additional NA009 transistors are used in the fully regulated power supply, ensuring the very best performance.

A variable speed, virtually noiseless cooling fan is mounted on a large internal heat sink providing long-term stability and the ability to swing a massive 500 VA on transients. The NAP 300 is stable into any load and able to drive a 2-Ohm load for long periods of time.

Specifications

Audio Inputs
Streaming

Chromecast built-in, Apple AirPlay, TIDAL, Spotify® Connect, Bluetooth (AptX HD), Internet Radio, UPnP™ (hi-res streaming), Roon Ready

USB

2 x USB Type A socket (front and rear - 1.6A charge)

Digital (S/PDIF)

2 x Optical TOSLink (up to 24bit/96kHz)
1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs)
1 x coaxial BNC (up to 24bit 192kHz, DoP 64Fs)

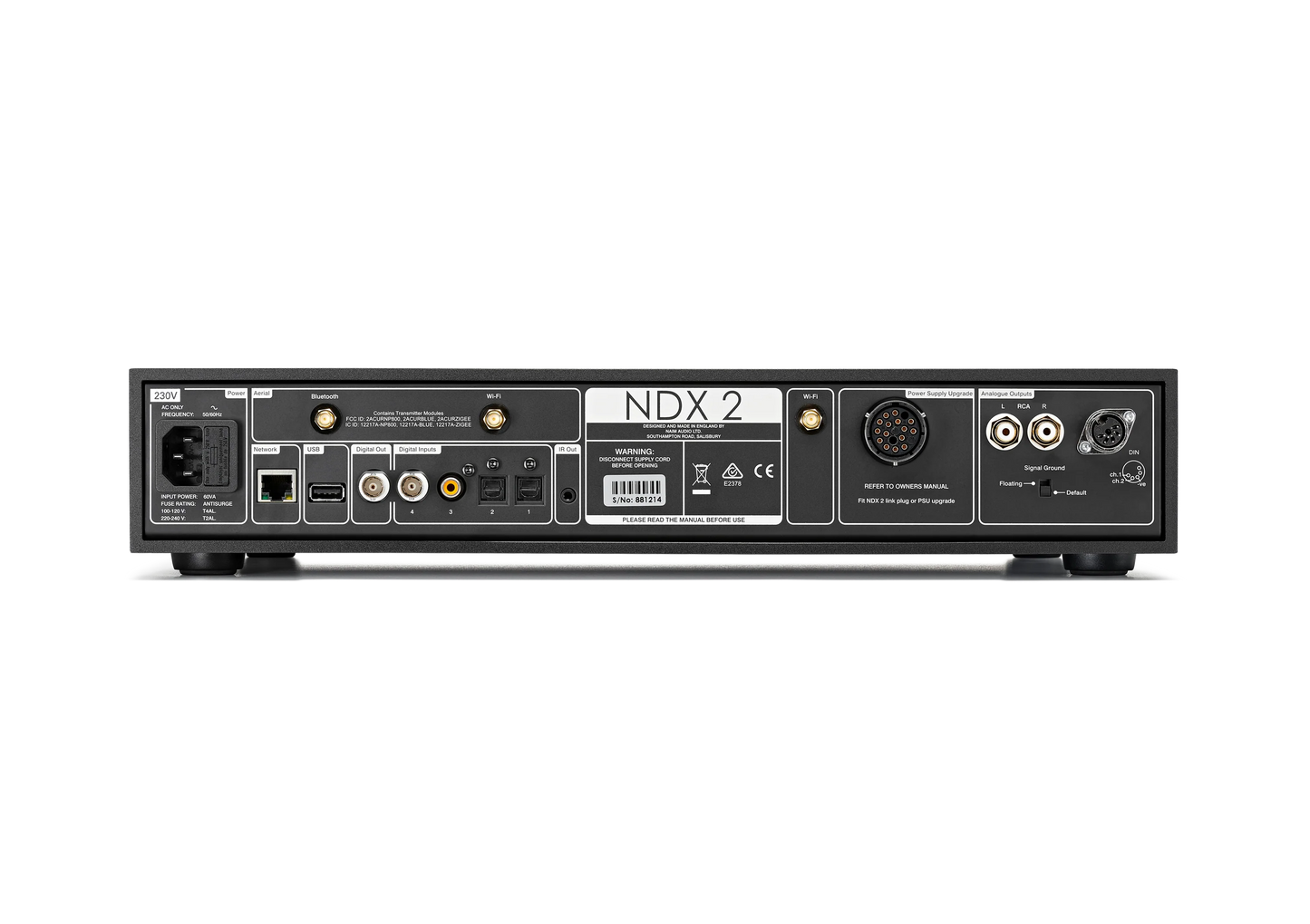

Audio Outputs
Analogue

1 x RCA pair
1 x 5-pin DIN
Digital       1 x coaxial BNC

Connectivity
Updates

Update your system wirelessly via the Naim app

Network

Ethernet (10/100Mbps), WiFi (802.11 b/g/n/ac with external antennae)

Formats
Multiroom

Party Mode Streaming: Sync up to six Naim products and control via the Naim app

Internet Radio Formats

Windows Media-formatted content, MP3, ACC, OGG Vorbis streams and MMS

Internet Radio Provider

vTuner premium 5*

Audio Formats

WAV - up to 32bits/384kHz
FLAC and AIFF - up to 24bit/384Hz
ALAC (Apple Lossless) - up to 24bit/384Hz
MP3 - up to 48kHz, 320kbit (16 bit)
AAC - up to 48kHz, 320kbit (16 bit)
OGG and WMA - up to 48kHz (16 bit)
DSD - 64 and 128Fs
M4A - up to 48kHz, 320kbit (16 bit)
Note: Gapless playback supported on all formats.

Physical
Dimensions

87mm x 432mm x 314mm (H x W x D)

Finishes

Brushed and anodised aluminium

Weight

10kg

Power
Power Consumption

Typical use: 19W
Network standby mode: <2W
Deep sleep: <0.5W

Ripping and Storage
Storage

2 x USB Type A socket (front and rear - 1.6A charge)

Supplied with
Supplied with

Zigbee® remote (inc. batteries), Power-Line Lite cable (UK denominations only), Burndy link plug, 5-pin DIN interconnect cable, BNC to RCA adaptor, Wi-Fi (x2) and Bluetooth antennae, cleaning cloth, quick start guide

Upgrades
Mains Cable

Power-Line

Power Supply

555 PS DR/ XPS/ XP5 XS

Other

Super Lumina / Hi-Line

User Control
App Control

Naim App for iOS and Android

Front Panel

5" colour LCD display and four buttons

Handheld

Zigbee® RF4CE
