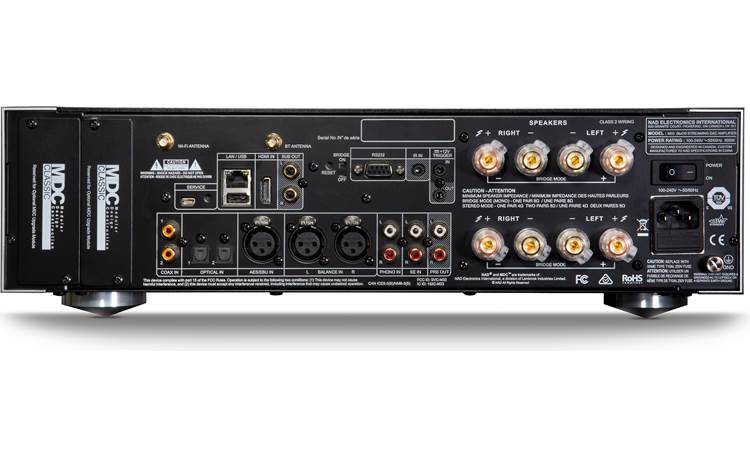

NAD Masters Series M23 Stereo power amplifier

PRICE:
Regular price $3,749.00 USD
Regular price $3,749.00 USD Sale price $3,749.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION:

No reviews

description

Building on NAD’s long tradition of identifying and developing cutting-edge amplification technology, the M23 HybridDigital Stereo Power Amplifier features Purifi Audio’s Eigentakt™ design, a once-in-a-decade innovation that virtually eliminates harmonic and intermodulation distortion. Noise is inaudible, for a completely black background and exquisite micro-detail. Conservatively rated at 2x200W continuous into 8 ohms and 2x380W into 4 ohms, the M23 can deliver live performance levels through any loudspeaker. With its unique combination of features, performance, and value, the M23 represents the new benchmark for the stereo power amplifier.

Robust stereo power

The NAD Masters Series M23 is a superior option for setting up a high-performance two-channel sound system. It delivers 200 watts x 2 at 8 ohms and an impressive 700 watts into a single channel in bridged mode. It's 4-ohm-stable, so it can handle even demanding, power-hungry speakers.

Innovative Class D amplifier technology

This amp pushes Class D amplification performance to new limits thanks to HybridDigital Purifi Eigentakt™ technology. It helps the amp maintain even frequency response into lower impedance loads and minimizes the occurrence of digital clipping. This advanced design offers robust power output and accurate sound with minimal distortion, without the excess weight and cost associated with more traditional linear power supplies and Class AB output stages.

Convenient connections

The M23 offers individual unbalanced RCA and balanced XLR inputs for each channel, for making solid connections to a quality NAD preamp. There's 12-volt trigger input for remote turn-on, so your whole system can power up with a single click.

ANALOG AUDIO INPUT/SPEAKER OUT

  • Input impedance (R and C)
  • Single-ended: 56 kohms + 200 pF Balanced: 56 kohms +200 pF
  • Frequency response (1W into 8 Ohms)
  • ±0.06dB (20-20kHz)
  • Rated output power into 8 Ohms and 4 ohms(Stereo mode) 80 W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
  • >200W into 8 Ohm, >380W into 4 Ohm
  • Rated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated THD, both channels driven)
  • >700W into 8 Ohm
  • THD (20 Hz – 20 kHz)
  • <0.00069% (XLR), <0.0013% (RCA)
  • Signal-to-Noise Ratio
  • >101.7 dB (1W into 8 Ohm)
  • >127 dB (200W into 8 Ohm)
  • Clipping power (Stereo mode, at 1 kHz 0.1 % THD)
  • >210 W (0.1 % THD 1 kHz 8 ohms)
  • Clipping power (Bridge mode, at 1 kHz 0.1 % THD)
  • > 770W
  • IHF dynamic power (Stereo mode, at 1 kHz)
  • 8 ohms: 260 W
  • 4 ohms: 520 W
  • IHF dynamic power (Bridge mode, at 1 kHz)
  • 1017W
  • Peak output current
  • >25 A (in 1 ohm, 1 ms)
  • Damping factor
  • >800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
  • Frequency response
  • ±0.06 dB (stereo), ±0.054 dB (bridged) 20 Hz -20 kHz -3 dB at 60 kHz
  • Channel separation
  • High gain RCA: >97dB, Low gain XLR: >115dB (1kHz)
  • High gain RCA: >75dB, Low gain XLR: >96dB (10kHz)
  • Stereo Mode input sensitivity (for 200 W in 8 ohms)
  • Low gain: 4.5V (low gain), 2.5V (Mid gain), 1.4V (High gain)
  • Stereo Mode Gain
  • 19dB (low), 23.9dB (mid), 29.2 (high)
  • Bridge Mode Gain
  • 25.1dB (low), 30dB (mid), 35.2 (high)
  • Standby Power
  • <0.5W

DIMENSIONS AND WEIGHT

  • Gross dimensions (W x H x D)
  • 435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8 inches)
  • Net Weight
  • 9.7 kgs / 21.4 lbs
