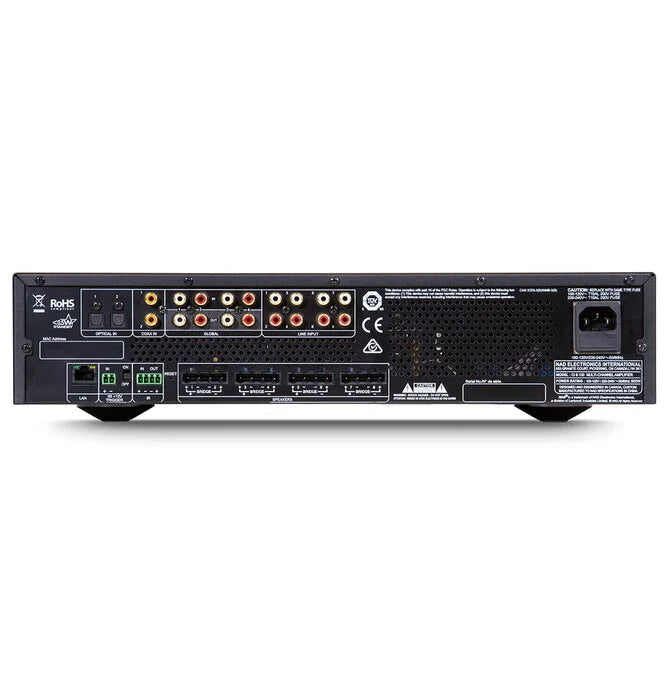

NAD CI 8-150 DSP Distribution Amplifier

PRICE:
Regular price $4,599.00 USD
Regular price $4,599.00 USD Sale price $4,599.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: NAD CI 8-150 DSP Distribution Amplifier - NEW

No reviews

description

NAD CI 8-150 DSP Distribution Amplifier

Our eight-channel powerhouse promises NAD’s legendary performance with reliability and stability with lots of installer-friendly Features. The all-new CI 8-150 DSP is an advanced amplifier targeted squarely at audiophile-grade distributed audio systems. Delivering a conservative 8 x 150 watts per channel @ 8 Ohms, it is also bridgeable to 4 x 280 watts per channel @ 8 Ohms with all channels driven. To put it simply, the CI 8-150 will drive most anything you need in your multi-room audio system, and will do so with remarkable sound quality.
Smart CI Solution with Audiophile Performance for Distributed Audio

The Ncore amplifier platform delivers stable and efficient power with high current capability, all in a slim 1U rack space. To make this level of performance possible, the CI 8-150 DSP uses a customized version of the proven Ncore output stage. This allows for massive power with extremely low distortion and noise in the audible range. Every detail of this design has been carefully executed to wring out every last drop of performance. Designed to deal with the demands of the CI world, it was made to handle long cable runs and difficult speaker loads.

For additional flexibility for the system designer, the CI 8-150 offers multiple inputs including an additional two coax inputs and two optical inputs.

NAD is keenly aware that reliability is paramount for a professional installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 8-150 amplifier is robust and stable at 4 Ohm impedance. A variety of power methods are available as well as an Eco mode setting for minimal power consumption.

Key Features of the NAD CI 8-150 DSP Amplifier

- 8 Channels x 150 watts @ 8 Ohms

- Bridgeable to 4 Channels X 280 watts @ 8 Ohms, all channels driven

- Ncore amplifier technology for audiophile sound quality

- 2U Rack Height- saves valuable rack space

- Platform accessed through IP control

- Custom web app manages DSP calibration, IP control and more

- Effectively handles long cable runs and difficult speaker loads

- Dual global Inputs/Outputs

- 0.5W Standby Mode, 3W Network Standby

- 12V Trigger In; IR In/Out

- Auto Sense Turn-on

- Universal AC Power Supply

NAD CI 8-150 Quick Start Guide

Specifications

Continuous Output Power Into 8 ohms

150 watt ( ref. 20 Hz-20 kHz at rated THD – all channels driven )

180 watt ( ref. 20 Hz-20 kHz at rated THD – two channels driven )

Continuous Output Power into into 4 ohms

180 watt ( ref. 20 Hz-20 kHz at rated THD – all channels driven )

300 watt ( ref. 20 Hz-20 kHz at rated THD – two channels driven )

Continuous Output power into into 8 ohms ( Bridged )

280 watt ( ref. 20 Hz-20 kHz 0.02% THD – all channels driven )

500 watt ( ref. 20 Hz-20 kHz 0.02% THD – two channels driven )

Rated THD ( 20 Hz – 20 kHz): 0.02% (1 W to 120 W, 8 ohms and 4 ohms )

IHF Dynamic Power:

8 ohm ( all channels driven ): 180 watt

4 ohm ( all channels driven ): 280 watt

8 ohm ( 2 channels driven ): 200 watt

4 ohm ( 2 channels driven ): 360 watt

IHF Dynamic Power( Bridged mode )

8 ohm( all channels driven ): 520 watt

4 ohm( all channels driven ): 670 watt

8 ohm( two channels driven ): 600 watt

4 ohm( two channels driven ): 800 watt

Clipping Power ( All channels driven )

160 watt ( 1kHz8ohms 0.1%THD )

200 watt ( 1kHz4ohms 0.1%THD )

Clipping Power into 8 ohms at Bridged Mode

300 watt ( 1 kHz 0.1 % THD – all channels driven )

550 watt ( 1 kHz 0.1 % THD – two channels driven )

Damping Factor: 150 ( ref. 8 ohms, 20 Hz to 6.5 kHz )

Frequency Response: ±0.5 dB ( 20 Hz-20 kHz )

Signal to Noise Ratio: 90 dB ( A-weighted, 500 mV input, ref. 1 W out in 8 ohms )

Peak output current:26A ( 1ohm,1ms )

Channel Separation:

75 dB ( 1 kHz )

65 dB ( 10 kHz )

Maximum undistorted input level: 3300 mV

Input sensitivity ( for 120 watt in 8 ohms, maximum volume ): 1450 mV

Analog Input audio sense threshold ( one channel with signal ): 3 ± 0.5 mVrms ( ref. 100 Hz – 10 kHz )

Trigger IN Level: 3-30Vdc

Standby Power: 0.5 W

Product Dimensions: 19.02" ( W ) x 3.54" ( H ) x 17.13" ( D )

Shipping Dimensions: 22" x 22" x 9"

Shipping Weight: 38.8 pounds

NOTE * Gross dimension includes extended rear panel terminals and excludes installed feet*
