NAD CI 16-60 DSP 16-channel multi-zone power amplifier (each)

PRICE:
Regular price $2,999.00 USD
Regular price $2,999.00 USD Sale price $2,999.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

description

NAD CI 16-60 DSP

A flexible multi-zone amp for custom installations

The NAD CI 16-60 DSP is a flexible power amplifier designed for high-performance multi-zone audio systems in large homes. It offers stable and efficient power with high-current capability, rated at a respectable 60 watts per channel with all channels driven. And it's 4-ohm stable, so it can drive even your most demanding custom-install speakers. Brackets are included for neat, simple rack mounting.

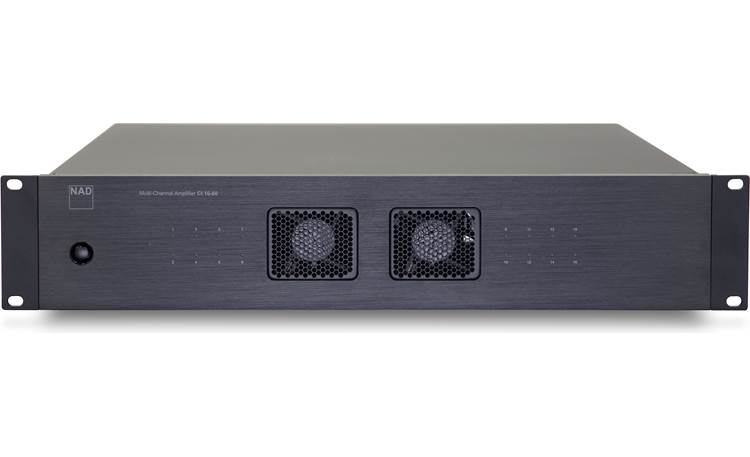

NAD CI 16-60 DSP Front

Web-based setup and control

This amp offers a convenient web-based user interface for configuration and management, which you can access from Windows® and Mac® PCs, smartphones, and tablets. The app offers individual input gain for each connected source, and separate output level controls for each channel. Sophisticated DSP lets you control Master Gain, Slope, Q, Frequency and Gain settings, and save presets for later use.

Convenient connections

The CI 16-60 DSP gives you multiple options for distributing power in a large custom installation. The back panel features global RCA bus inputs/outputs so you can distribute a single audio source among multiple amp channels and pass input signal on to another amplifier. There are eight pairs of assignable RCA inputs for each channel, with corresponding "loop-through" RCA outputs and Phoenix-style speaker outputs. An Ethernet LAN port lets you connect to your network for accessing the amp's extensive setup and control options.

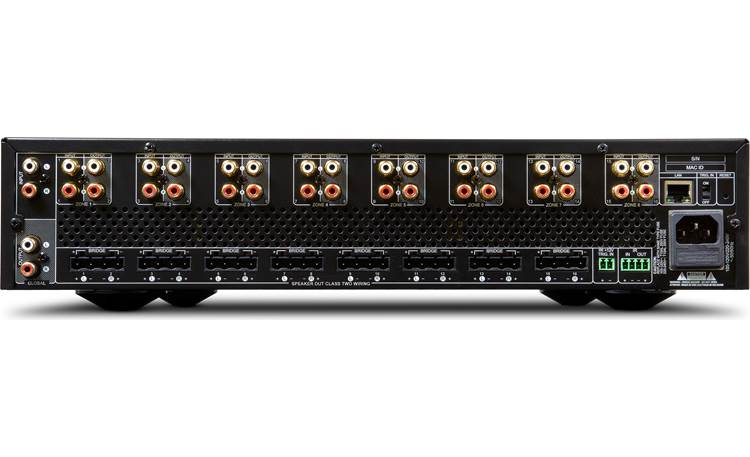

NAD CI 16-60 DSP Back


Product highlights:

  • 60 watts per channel into 8 ohms (1 kHz) at 0.05% THD with all channels driven
  • 65 watts per channel into 4 ohms (1 kHz) at 0.05% THD with all channels driven
  • 140 x 8 into 8 ohms in bridged mode (1 kHz) at 0.05% THD with all channels driven
    • each pair of channels is separately bridgeable
  • 4-ohm stable for use with a wide range of speakers
  • signal-to-noise ratio: 80 dB
  • Hypex UcD output stage delivers high power with extremely low distortion and noise
  • browser-based configuration and calibration with multi-channel digital signal processing (DSP)
  • dual built-in multi-speed cooling fans
  • rack-mountable (brackets included)
Connections:
  • Ethernet LAN port for setup, control, and firmware updates
  • global RCA stereo input and output
  • eight pairs of stereo RCA inputs
  • stereo RCA "loop through" outputs allow you to daisy chain sources to multiple amplifiers
  • Phoenix-style Euroblock outputs for eight pairs of speakers
  • 12-volt trigger input (Phoenix-style)
  • IR input and output (Phoenix-style)
Dimensions and warranty:
  • 19-1/16"W x 3-15/16"H x 19-3/16"D (2U rack spaces)
  • weight: 22.7 lbs.
  • warranty: 2 years
