Mark Levinson 326s preamplifier-USED

PRICE:
$5,499.00 USD
$5,499.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: USED

description

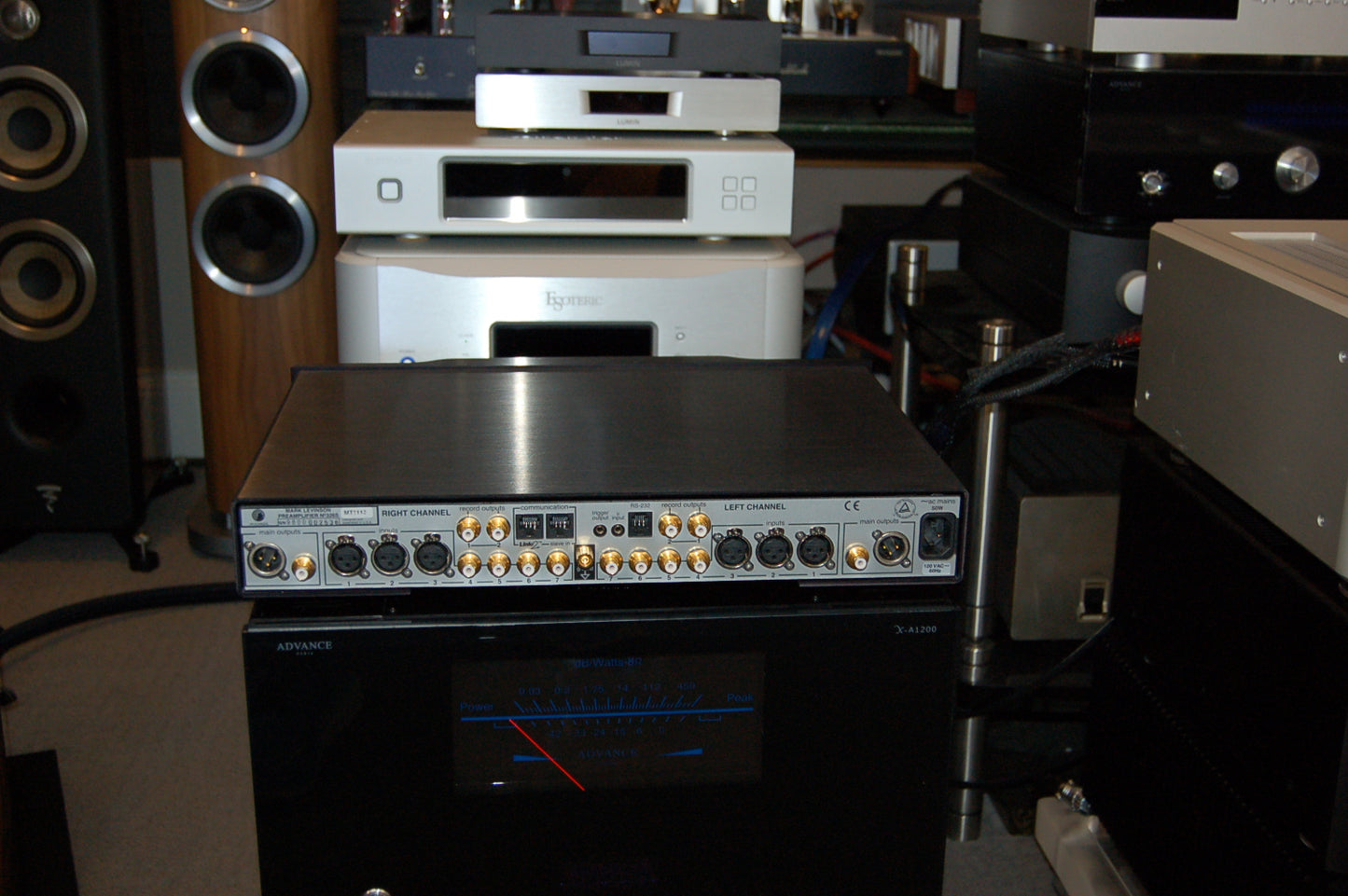

Mark Levinson 326s Preamplifier

Just in!!!  Very good condition, includes remote, printed owners manual. power cord.  Ships in original factory packaging.

Following in the Mark Levinson tradition, the N°326S exceeds all reasonable expectations for a stereo preamplifier. Its flexible design accommodates a wide range of demands, and shielded audio circuits produce an incomparable sound fit for sophisticated music reproduction systems.

Nº326S Highlights

  • Nelco N4000-13 SI main circuit board
  • Aux output path: 1 XLR and 1 RCA stereo pairs w/ fixed/variable volume and independent source selection.
  • Independent audio circuits, communication circuits and power supplies for each channel
  • Seven configurable inputs including four single-ended (RCA) inputs and three balanced (XLR) inputs
  • Main outputs: 2 XLR and 2 RCA stereo pairs (identical w/ volume).
  • Ethernet, RS-232, IR and 12V trigger system control ports. Includes system remote control.
  • Separate main and record outputs
  • Complete surround-sound-processor integration


General Specifications

Description Unless otherwise specified, these specifications indicate nominal values measured over a 20Hz to 20kHz bandwidth through balanced (XLR) connections.
Frequency Response 10 to 40kHz, ±0.2 dB
Input Impedance 100kΩ
Height 2.92” (74.04mm)
Width 17.75” (450.85mm)
Depth 13.58” (344.91mm)
Weight 30lb (14kg)
Communication and Control 2 8-pin RJ-45 connectors for Link communication; 1 6-pin modular RJ-11 connector for RS-232 communication; 1 3.5mm mini-jack for trigger output; 1 3.5mm mini-jack for ir input
Analog Audio Inputs 3 balanced (female XLR) stereo inputs; 4 single-ended (Mark Levinson-RCA) stereo inputs
Analog Audio Outputs 1 balanced (male XLR) stereo main output; 1 single-ended (Mark Levinson-RCA) stereo main output; 2 single-ended (Mark Levinson-RCA) stereo record outputs
Total Harmonic Distortion (THD) 0.001%
Crosstalk -94dBV, 20Hz to 20KHz input terminated
Gain 0, 6, 12, or 18dB line-level stage
Output Impedance < 50kΩ
Power Requirements 100, 120, 220, or 230V AC power at 50 or 60Hz (preset)

Audio Specifications

Description Unless otherwise specified, these specifications indicate nominal values measured over a 20Hz to 20kHz bandwidth through balanced (XLR) connections.
Frequency Response 10 to 40kHz, ±0.2 dB
Input Impedance 100kΩ
Height 2.92” (74.04mm)
Width 17.75” (450.85mm)
Depth 13.58” (344.91mm)
Weight 30lb (14kg)
Communication and Control 2 8-pin RJ-45 connectors for Link communication; 1 6-pin modular RJ-11 connector for RS-232 communication; 1 3.5mm mini-jack for trigger output; 1 3.5mm mini-jack for ir input
Analog Audio Inputs 3 balanced (female XLR) stereo inputs; 4 single-ended (Mark Levinson-RCA) stereo inputs
Analog Audio Outputs 1 balanced (male XLR) stereo main output; 1 single-ended (Mark Levinson-RCA) stereo main output; 2 single-ended (Mark Levinson-RCA) stereo record outputs
Total Harmonic Distortion (THD) 0.001%
Crosstalk -94dBV, 20Hz to 20KHz input terminated
Gain 0, 6, 12, or 18dB line-level stage
Output Impedance < 50kΩ
Power Requirements 100, 120, 220, or 230V AC power at 50 or 60Hz (preset)
