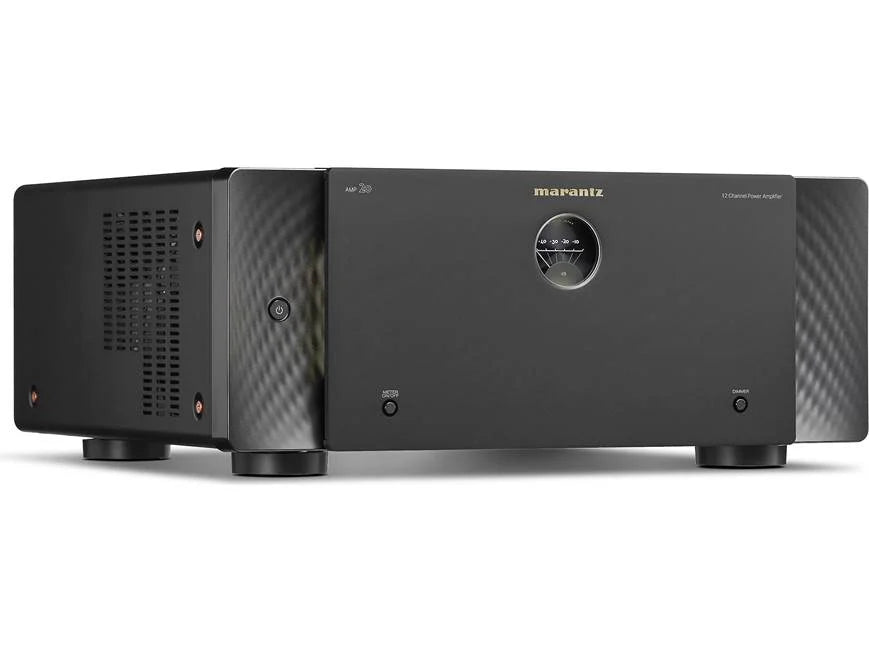

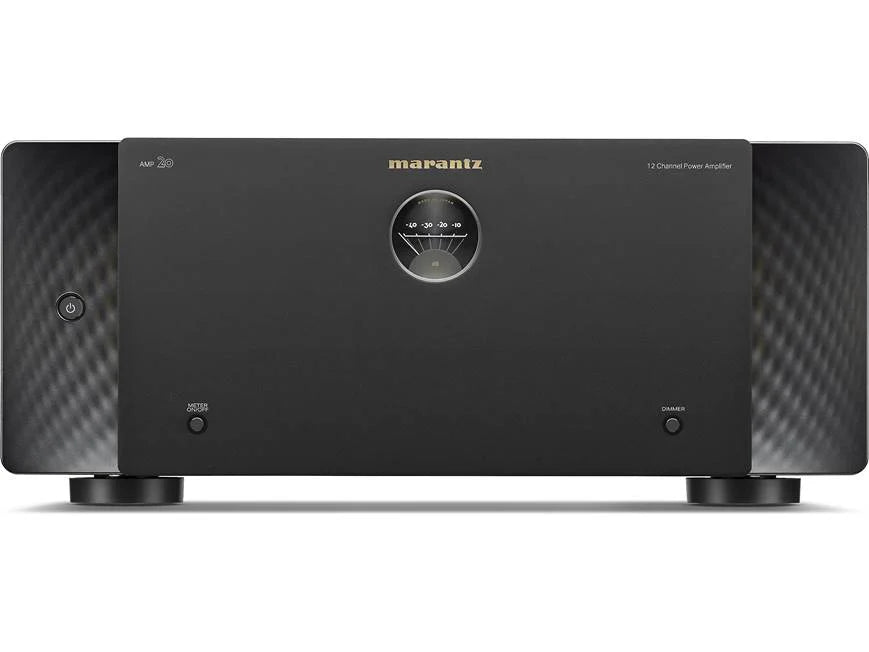

Expertly tuned by a Marantz Sound Master, theĀ AMP 20 12-Channel 200W Power AmplifierĀ fromĀ MarantzĀ is designed to provide reference-level, home-theater audio. A total of 12 channels are available, each made to support a high-powered 200W at 8 ohms with no loss to fidelity. You have the choice of connecting each channel to an optional preamp, such as the Marantz AV 20, using unbalanced RCA or balanced 3-pin XLR to reduce noise. Speakers can be connected normally, or they can utilize BTL or bi-amp mode. The front of the power amp is sleek and sophisticated, with an analog porthole level meter and a metal front panel that has soft side lights that add a warm glow.
Product info:
12-channel high-performance Class D amplifier designed for multi-channel surround sound
200 watts per channel into 8 ohms (1k Hz) at 0.05% THD, with 2 channels driven
400 watts per channel into 4 ohms (1k Hz) at 0.7% THD, with 2 channels driven
bridged power: 400 watts per channel into 8 ohms (1k Hz) at 0.05% THD, with 2 channels driven
bi-amp mode for powering compatible speakers with two sets of input terminals

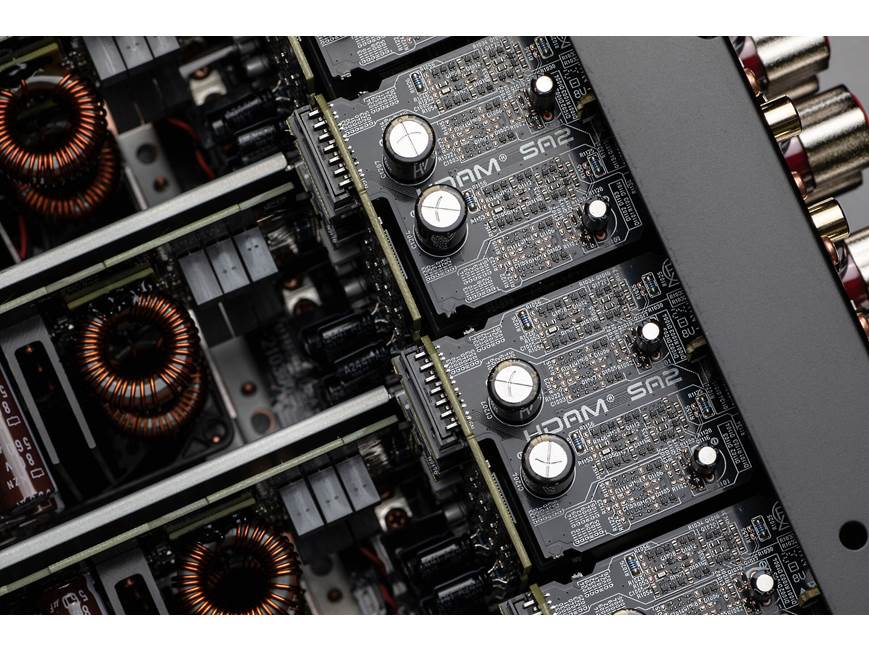

Hyper Dynamic Amplifier Module (HDAMĀ® SA2) and current feedback amplification for accuracy and control under high-drive conditions
toroidal power transformer for high current and low noise
illuminated analog level meter
selectable auto-standby function
Connections:

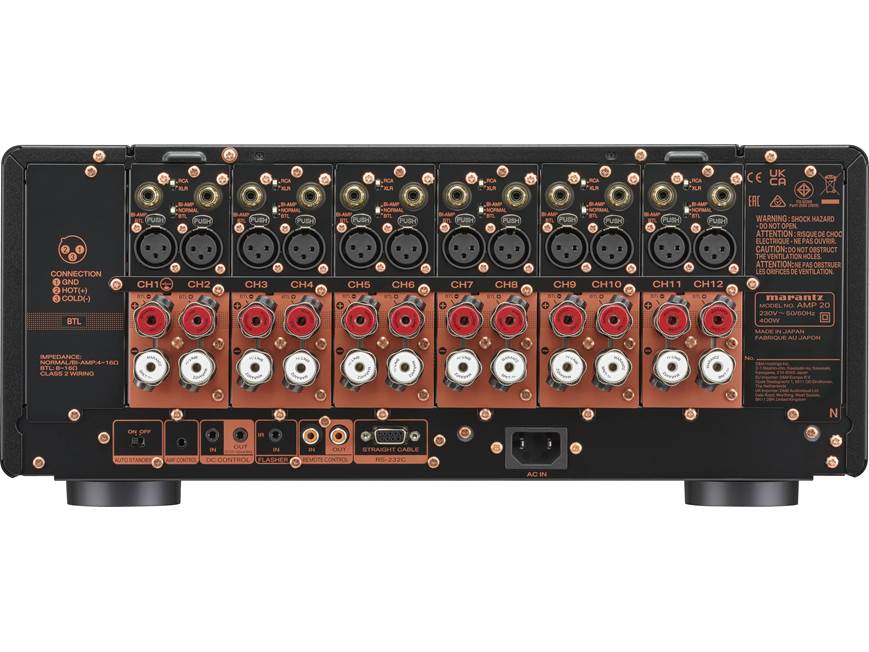

balanced XLR and unbalanced line-level mono RCA inputs for each channel
binding post speaker terminals for each channel
RS-232C and remote (IR) connections for use with optional third-party controllers
12-volt trigger output for sending power commands to external gear, like a preamp/processor or cooling fan
amp control input to link power and standby with compatible connected Marantz components
Marantz RCA remote control input and output
detachable power cord
Other info:
17-7/16"W x 7-1/2"H x 19-1/4"D
weight: 39.7 lbs.
warranty: 5 years
