description

The same outstanding LUMIN musicality in a more affordable package. Perhaps the most astonishing product in the LUMIN range.

COMPACT CASE

DSD 1285.6MHZ

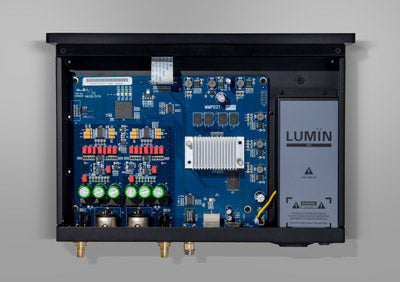

WOLFSON WM8741 DAC

FULLY BALANCED

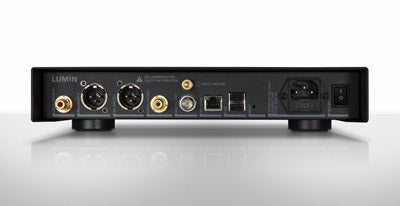

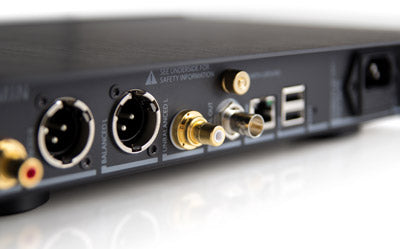

XLR OUTPUTS

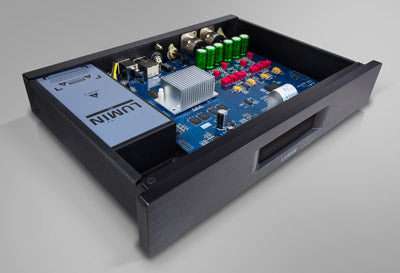

INTERNAL POWER SUPPLY

WHY LUMIN D2

WHY LUMIN D2 The most affordable way to bring all of the award-winning LUMIN musicality into your music system.

Retaining the same streaming functionality, Wolfson DAC and fully balanced design of its renowned siblings, LUMIN D2 opens up a world of High Resolution network and internet streaming.

The perfect introduction to audiophile streaming

LUMIN D2 improves on the hugely successful D1 to create a formidable package.

• Faster processor to allow playback of DSD128 5.6MHz
• Internal power supply keeps interference lower and cabling neater
• Wolfson WM8741 DAC chips, 1 chip per channel Retains fully balanced design of the LUMIN family – including XLR outputs

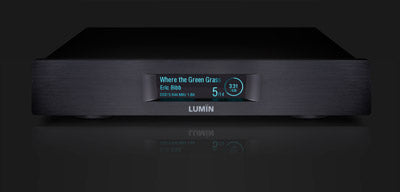

• Compact case with solid aluminium CNC front panel
• Available in black anodised finish as well as raw silver
• Gigabit Ethernet

All the usual LUMIN refinements

• From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
• Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
• The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
• LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

SPECIFICATION

D2 SPECIFICATION

DSD SUPPORT:

Up to DSD128 5.6MHz, 1-bit

PCM SUPPORT:

Up to 768kHz, 16–32-bit, Stereo

UPSAMPLING RATES & BIT DEPTHS:

DSD upsampling option for all files up to 96kHz

PCM 192kHz upsampling option for all files up to 96kHz

DIGITAL OUTPUT STAGE:

DIGITAL OUTPUT STAGE:

BNC SPDIF:

PCM 44.1kHz–192kHz, 16–24-bit

DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

POWER SUPPLY:

Internal 100–240V AC auto-ranging

PHYSICAL:

FINISH:

Raw brushed aluminium or black anodised brushed aluminium

D2 UNIT:

300mm (W), 244mm (D), 60mm (H), 2.5kg

PACKAGING:

470mm (W), 340mm (D), 170mm (H), 4.5kg

SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS

STREAMING PROTOCOL:

UPnP AV protocol with audio streaming extension (OpenHome)

Roon Ready

TIDAL Connect

Spotify Connect

AirPlay-compatible

Gapless Playback

On-Device Playlist

APP FEATURES:

Native support for TIDAL, MQA, Qobuz and TuneIn Radio.

Tidal MQA icons to identify high-res music

Qobuz high-res icons to identify high-res music

Volume control

High-resolution artwork Artwork

caching

Search

Multiple tag handling

Composer tag support

Album-grouping in playlist

Automatic internet links to artists/album/songs

Saving and restoring of playlists (including Tidal and Qobuz)

SUPPORTED AUDIO FILE FORMATS:

DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)

PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF

Compressed (lossy) Audio: MP3 MQA (Core decode)

INPUT:

Ethernet RJ45 network 1000Base-T

USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

SUPPORTED CONTROL DEVICES:

Apple devices. iOS 11.0 or later (List of supported devices) Android devices.

Android 4.0 (Ice Cream Sandwich) or later required

OTHER:

Leedh Processing lossless digital volume control

Programme of Continuous Development – Firmware-upgradable for further features and enhancements
