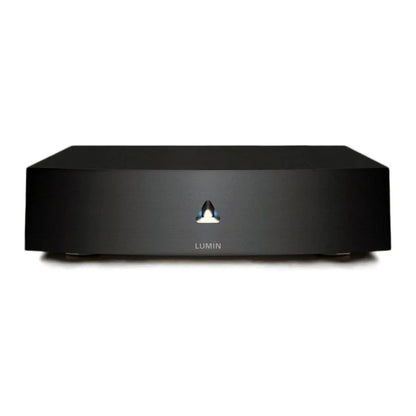

Lumin Amp Stereo Power Amplifier
Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.
Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the nex
t level.
- 160W per channel into 8Ω
- 320w per channel into 4Ω
- 2-channel design can be configured in stereo, dual mono or bridged mode
- Class AB amplification
- Discrete circuit
- Dual mono power supply and amplifier design
- BJT transistors in current stage
- DC-coupled signal path
- High input impedance and sensitivity for direct DAC use
- Intelligent bias and thermal management
- CNC single billet aluminium construction
- No global feedback
- DC overload and overheating protection
- Bespoke 600VA transformer
Specification
Analogue input: 1 x XLR pair, 1 x RCA pair
Input impedance: 200 kW
Speaker outputs:
160 W per channel into 8 ohm
320 W per channel into 4 ohm
Output impedance: 0.1 ohm
Signal to noise ratio: 105 dB unweighted
Construction: CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate
Finish: Black anodized brushed aluminium or raw brushed aluminium
Dimensions: 350 mm (w), 374 mm (d), 104 mm (h)
Weight: 42 lb
- 160W per channel into 8Ω
- 320w per channel into 4Ω
- 2-channel design can be configured in stereo, dual mono or bridged mode
- Class AB amplification
- Discrete circuit
- Dual mono power supply and amplifier design
- BJT transistors in current stage
- DC-coupled signal path
- High input impedance and sensitivity for direct DAC use
- Intelligent bias and thermal management
- CNC single billet aluminium construction
- No global feedback
- DC overload and overheating protection
- Bespoke 600VA transformer
Specification
Analogue input: 1 x XLR pair, 1 x RCA pair
Input impedance: 200 kW
Speaker outputs:
160 W per channel into 8 ohm
320 W per channel into 4 ohm
Output impedance: 0.1 ohm
Signal to noise ratio: 105 dB unweighted
Construction: CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate
Finish: Black anodized brushed aluminium or raw brushed aluminium
Dimensions: 350 mm (w), 374 mm (d), 104 mm (h)
Weight: 42 lb
