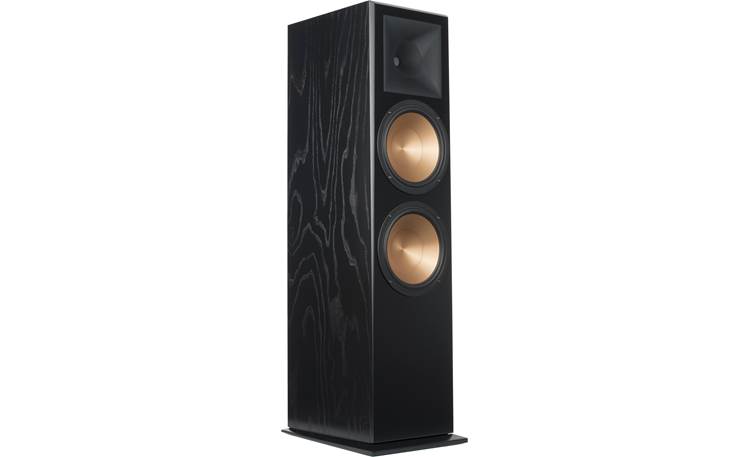

Klipsch Reference RF-7 III (single) OPEN BOX

PRICE:
$1,849.00 USD
$2,199.00 USD $1,849.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New OPEN BOX

Color

description

Conjure the power, detail, and emotion of the live music experience in your home theater with the walnut Reference Series RF-7 III 2-Way Floorstanding Speaker from Klipsch. Featuring a 1.75" titanium diaphragm compression driver paired with an 8.5" 90 x 90° Tractrix horn and two 10" Cerametallic cone woofers, this floorstanding speaker delivers a frequency response of 32 Hz to 25 kHz. It can handle up to 250W of continuous power from your amplifier of choice.

Klipsch Reference RF-7 III Shown with grille removed

1.75" Titanium Diaphragm Compression Driver
The compression driver's phase plug design improves phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.
90 x 90° Tractrix Horn
The Tractrix horn uses a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension while enhancing imaging and dynamics. The compressed molded rubber construction adds high-frequency damping to reduce harshness, improve detail, and deliver clean, natural sound.
Spun Copper Cerametallic Woofers
Cerametallic woofers are designed to combine high rigidity with a lightweight construction to ensure minimal cone breakup and distortion. They pair seamlessly with the Tractrix horn-loaded compression driver to deliver enhanced speaker efficiency.

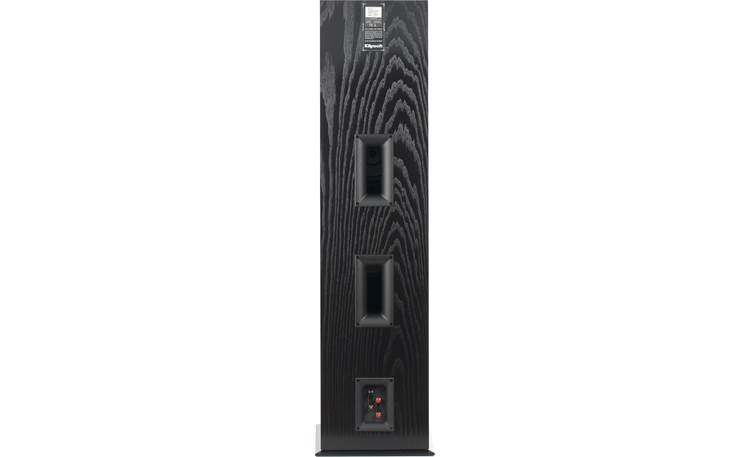

Klipsch Reference RF-7 III Back
Tractrix Ports
Using Tractrix geometry, the RF-7 III' ports ensure efficient air transfer from the cabinet for clean and powerful low-frequency response.
Dual-Chamber Enclosure Design
The bifurcated enclosure allows each 10" driver and port to work independently from each other. This improves the linearity of both drive systems, and minimizes standing wave problems inside the cabinet to prevent frequency anomalies in the sensitive mid-range frequencies

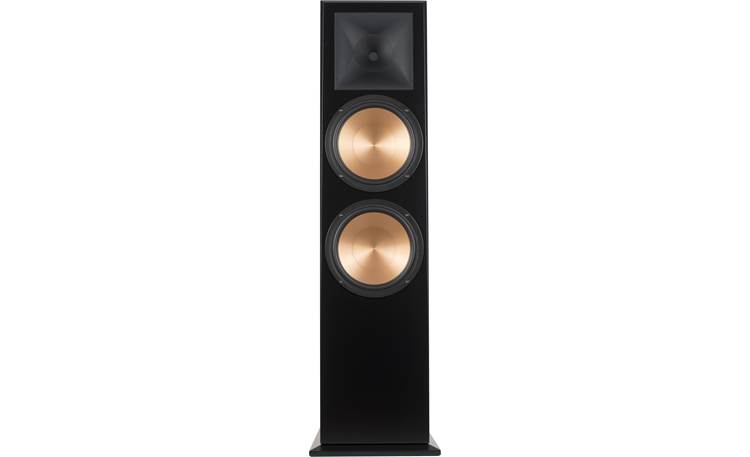

Klipsch Reference RF-7 III Direct view with grille removed
Cast Frame Woofer Design
Each 10" woofer is equipped with a heavy-duty cast aluminum frame for resonant-free operation. In addition, each woofer incorporates a dual shorting-ring magnet structure to eliminate modulation of the magnetic flux. This design results in improved linearity of cone movement.
Furniture-Grade Wood Veneer
The RC-7 III speaker's enclosure boasts a furniture-grade walnut wood veneer.
Key Specs
Speaker Configuration
2-Way
Power Handling
250 W RMS
1000 W Peak
Drivers
2x 10" / 254 mm Cerametallic Cone Woofer
1.75" / 44.45 mm Titanium Tweeter
Frequency Response
32 Hz to 25 kHz (±3 dB)
Inputs/Outputs
2x Binding Post Pair
Speaker System
Speaker Configuration
2-Way
Power Handling
250 W RMS
1000 W Peak
Bi-Amp Capability
Yes
Drivers
2x 10" / 254 mm Cerametallic Cone Woofer
1.75" / 44.45 mm Titanium Tweeter
Enclosure Type
Bass-Reflex
Ports
2x Rear-Firing
Frequency Response
32 Hz to 25 kHz (±3 dB)
Impedance
8 Ohms
Inputs/Outputs
2x Binding Post Pair
Crossover
1300 Hz
Sensitivity
100 dB
Physical
Environmental Protection
No
Placement & Mounting Options
Floorstanding (with Included Hardware)
Grille
Cloth (Removable)
Dimensions
13.9 x 49 x 17.9" / 35.3 x 124.5 x 45.5 cm (with Base)
Weight
97.0 lb / 44.0 kg
