• JBL Synthesis loudspeakers are designed to grab ahold of your emotions and not let go. The SSW-4 in-wall subwoofer delivers dynamic bass and lifelike realism to home cinema and concealed music systems, courtesy of dual 8” (200mm) Klippel-optimized, metal cone woofers

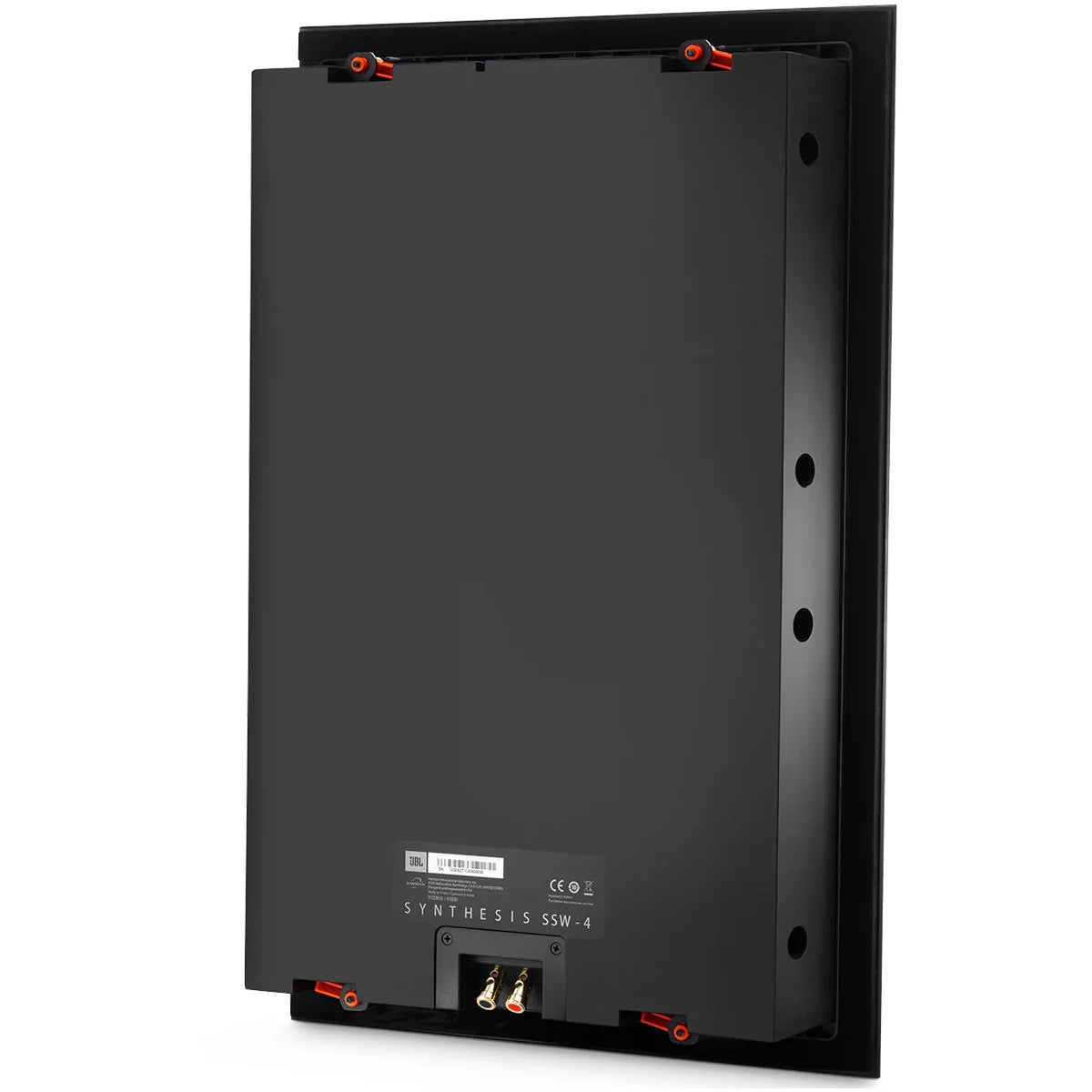

  • The self-contained module with an integrated back box makes it easy to retrofit existing installations. The SSW-4 is designed to fit standard 2 x 4 stud frame construction, and the clean industrial look allows for seamless integration into virtually any in-home application.

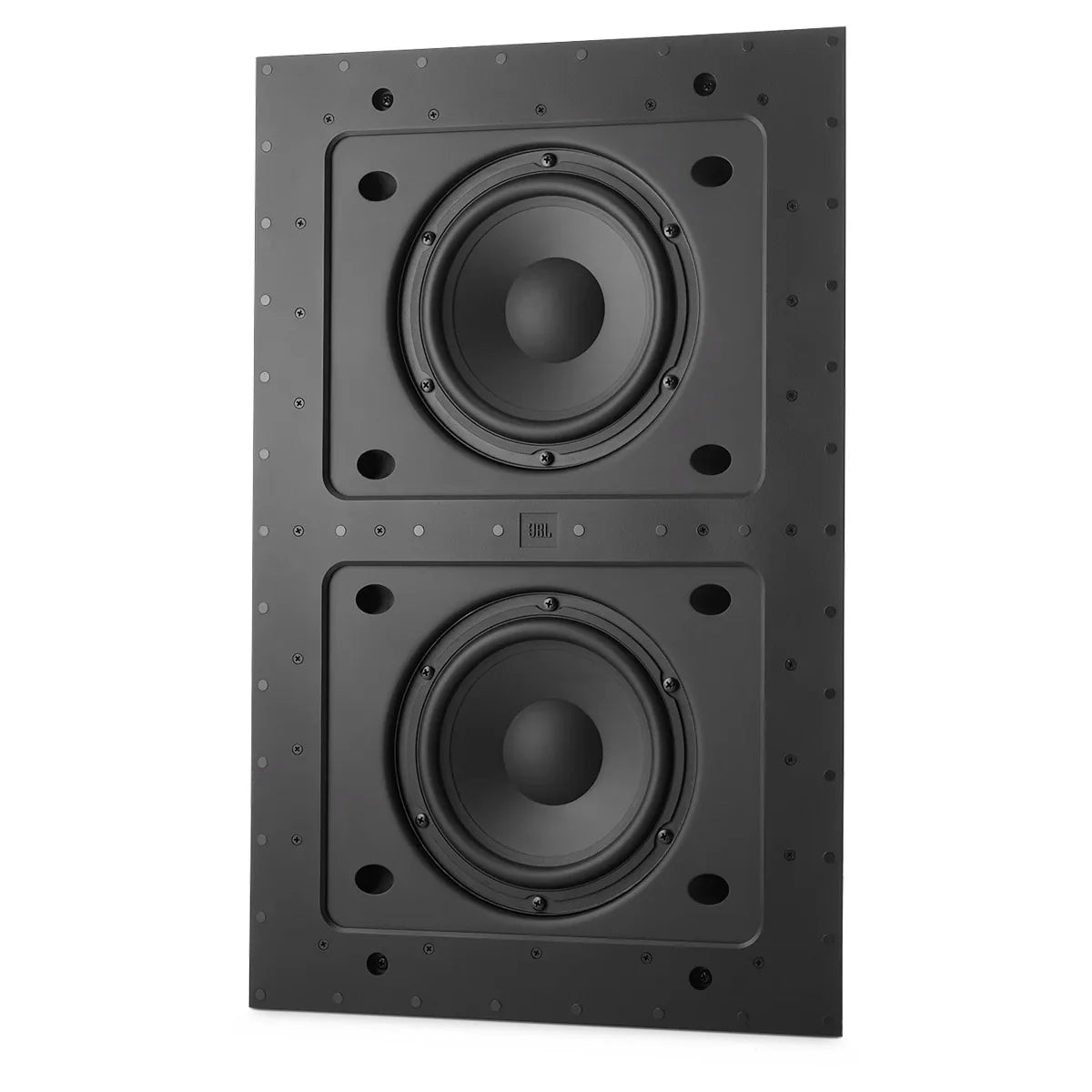

  • The SSW-4 is designed to be powered by the JBL Synthesis SDA 8300, 8-channel, 300W power amplifier. Each SDA 8300 can power up to eight SSW-4 subwoofers at 300W RMS to offer a complete in-wall solution to your architectural audio needs.

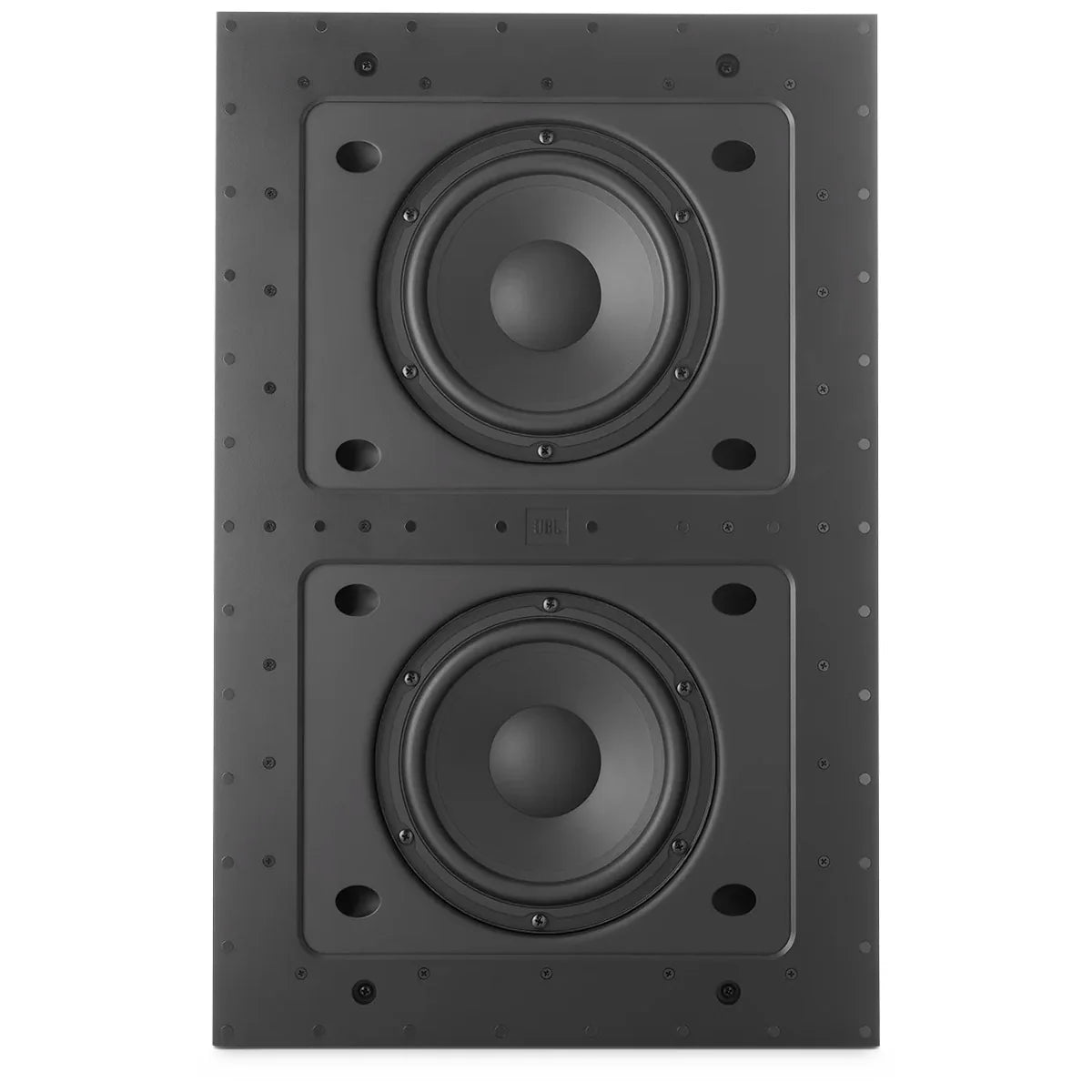

  • Dual 8” (200mm) low-profile, long-throw, Klippel-optimized, metal cone woofers Front-firing drivers with sealed back box for superior acoustic tuning Gold-plated speaker terminals Zero-bezel, magnetically-attached grille
1 5

JBL Synthesis SSW-4 Dual 8" In-Wall Subwoofer (each)

PRICE:
$1,100.00 USD
$1,100.00 USD $1,100.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

description

JBL Synthesis loudspeakers are designed to grab ahold of your emotions and not let go. The SSW-4 in-wall subwoofer delivers dynamic bass and lifelike realism to home cinema and concealed music systems, courtesy of dual 8” (200mm) Klippel-optimized, metal cone woofers. The self-contained module with an integrated back box makes it easy to retrofit existing installations. The SSW-4 is designed to fit standard 2 x 4 stud frame construction, and the clean industrial look allows for seamless integration into virtually any in-home application. The SSW-4 is designed to be powered by the JBL Synthesis SDA 8300, 8-channel, 300W power amplifier. Each SDA 8300 can power up to eight SSW-4 subwoofers at 300W RMS to offer a complete in-wall solution to your architectural audio needs.

SSW-4 Highlights

  • Dual 8” (200mm) low-profile, long-throw, Klippel-optimized, metal cone woofers
  • Front-firing drivers with sealed back box for superior acoustic tuning
  • Gold-plated speaker terminals
  • Zero-bezel, magnetically-attached grille

Details & Specs

  • Sensitivity (2.83V/1m) Variable using the SA1000
  • Frequency Response 36Hz – 150Hz (-6dB)
  • Required Amplifier JBL Synthesis SDA-8300 (Connect up to eight SSW-4 Subwoofers with each SDA-8300 Amplifier)
  • Nominal Impedance 8 Ohms
  • Recommended Amplifier JBL Synthesis SDA 8300
  • Mounting Cutout Size (H x W) 23-1/2" x 14-1/2"
  • Height 25.375” (645mm)
  • Width 16.5” (419mm)
  • Depth 4” (102mm)
  • Weight 28.4 lbs (12.9kg)
