description

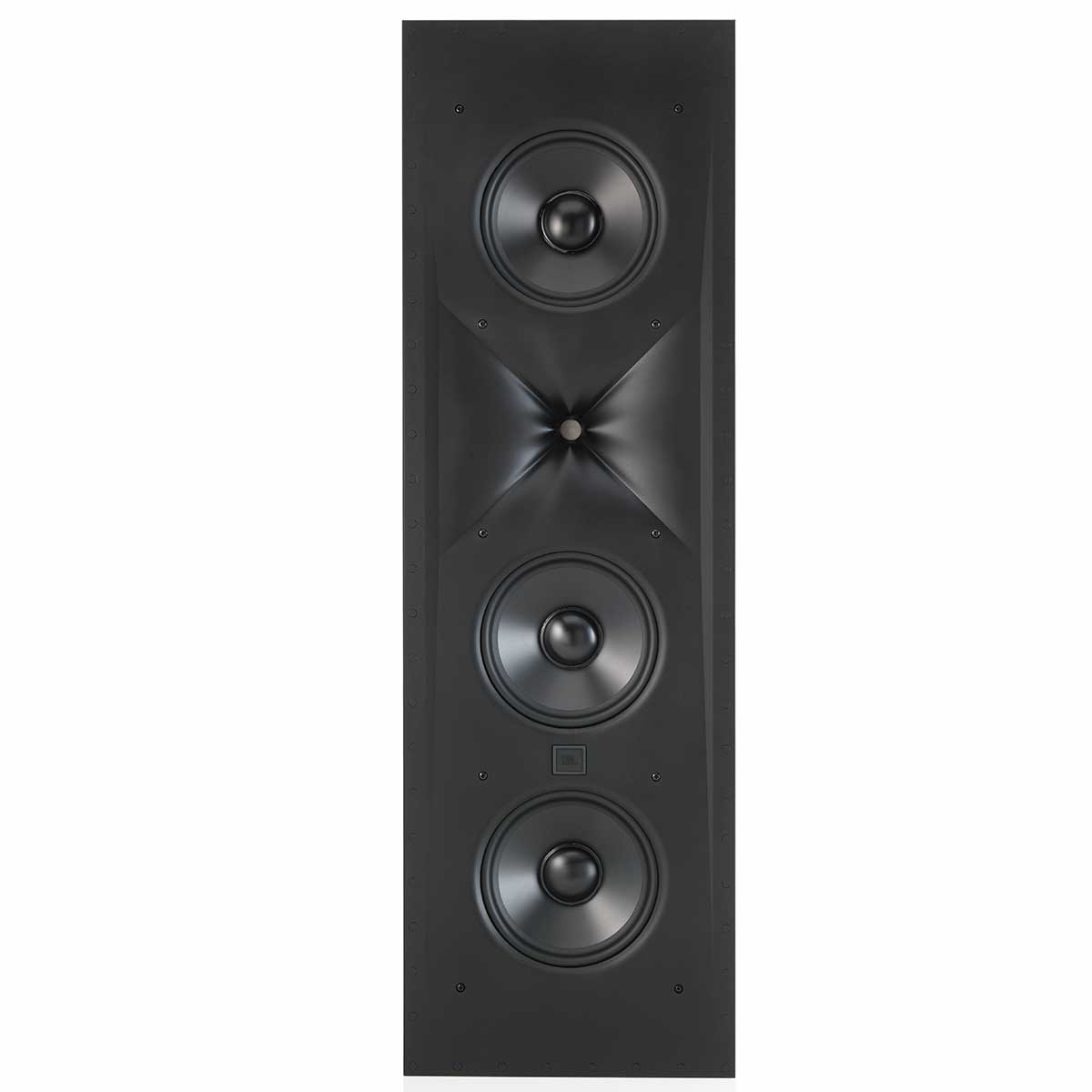

Part of the JBL Synthesis Custom Loudspeakers range, the SCL-2 offers the highest level of acoustic performance available from a flush-mount loudspeaker. The SCL-2 is designed with a 2.5-way, triple 8-inch (200mm) driver configuration for low-frequency extension with high output capability and powerful dynamics. A D2415K dual voice coil, dual 1.5-inch (38mm) annular ring diaphragm Teonex® compression driver with advanced HDI geometry horn works in conjunction with three powerful cast-frame, 8-inch (200mm) Advanced Aluminum Matrix cone woofers with low distortion motor structures.

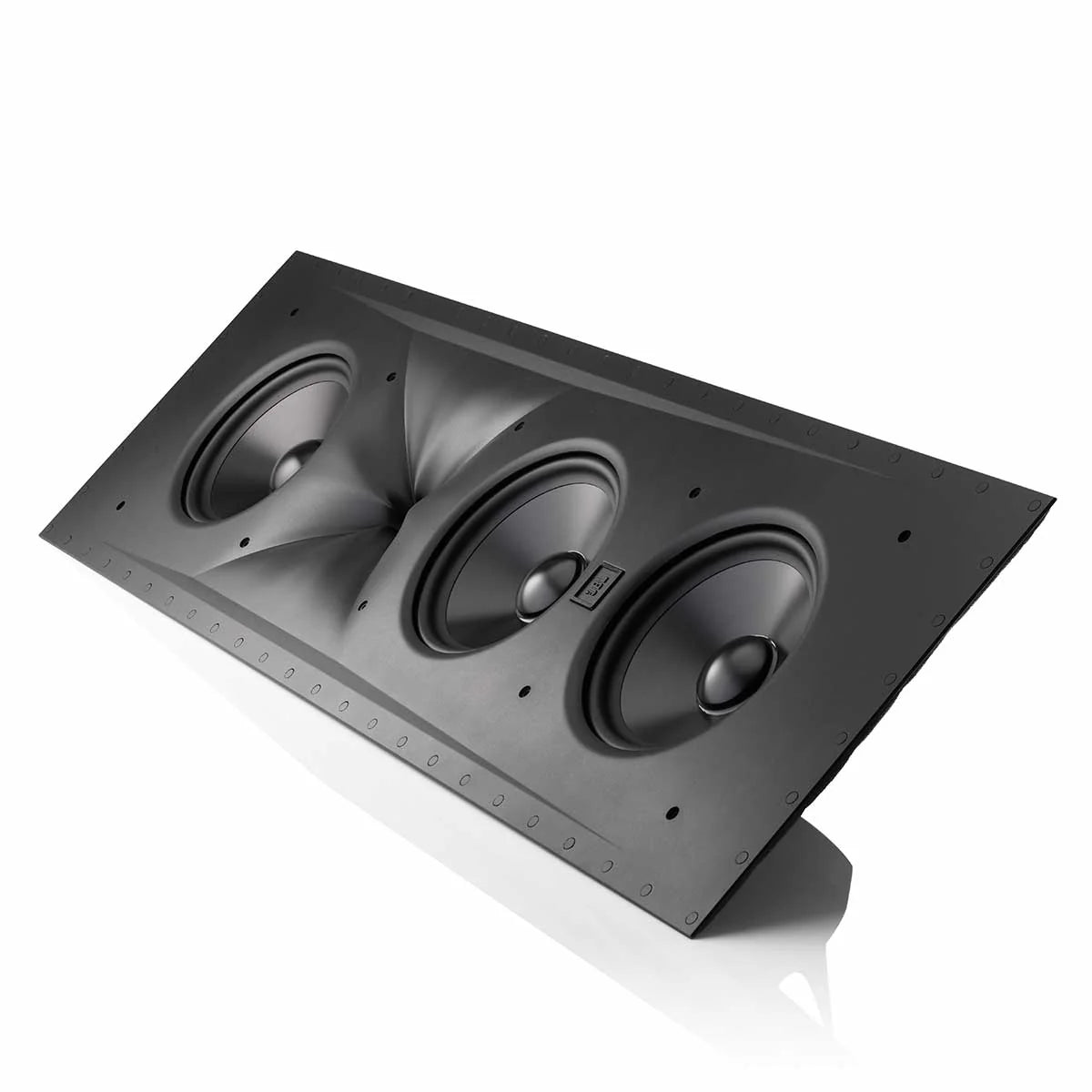

The loudspeaker’s 5.8-inch (147mm)-deep enclosure fits standard wall construction applications and features a Sonoglass™ precision-molded baffle assembly with integrated HDI waveguide/horn, and a zero-bezel, magnetically-attached grille. This enclosure can be oriented with the horn closer to the top or bottom, or on its side for center channel or reduced height applications. SCL-2 systems can be mixed and matched with other SCL speakers or any JBL Synthesis loudspeakers.
Designed to provide ultimate performance and the highest levels of dynamics from any in-wall loudspeaker, the SCL-2 can discretely integrate into any environment and décor. They can also be installed in a traditional application behind acoustic fabric or woven/perforated video screens without installing the grilles. They feature a discrete matte black baffle, HDI waveguide, and transducers, with a paintable white grille. The SCL-2 is the perfect solution for in-wall LCR or surround channel applications as part of a JBL Synthesis home theater.
Highlights:
- 2½-way, triple 8-inch/200mm driver configuration – ideal for wall mount 5.8-inch/147mm deep, rectangular footprint enclosure
- Can be mounted vertically or horizontally for maximum application flexibility and performance
- Computer-optimized HDI Constant Directivity Horn with very smooth and predictable off-axis behavior over a wide coverage area
- D2415K, 1.5-inch/38mm annular ring Teonex® diaphragm compression driver with advanced HDI geometry horn
- Powerful cast-frame, Advanced Aluminum Matrix cone woofers with low-distortion neodymium motor structures
- Sonoglass® baffle with integrated HDI waveguide for maximum strength and high internal damping
- Solid MDF enclosure installs behind drywall and provides optimized acoustic performance and enhanced acoustic isolation from the wall
- Rubber isolation mounts attach the cabinet to wall studs, ensuring a firm yet isolated mounting

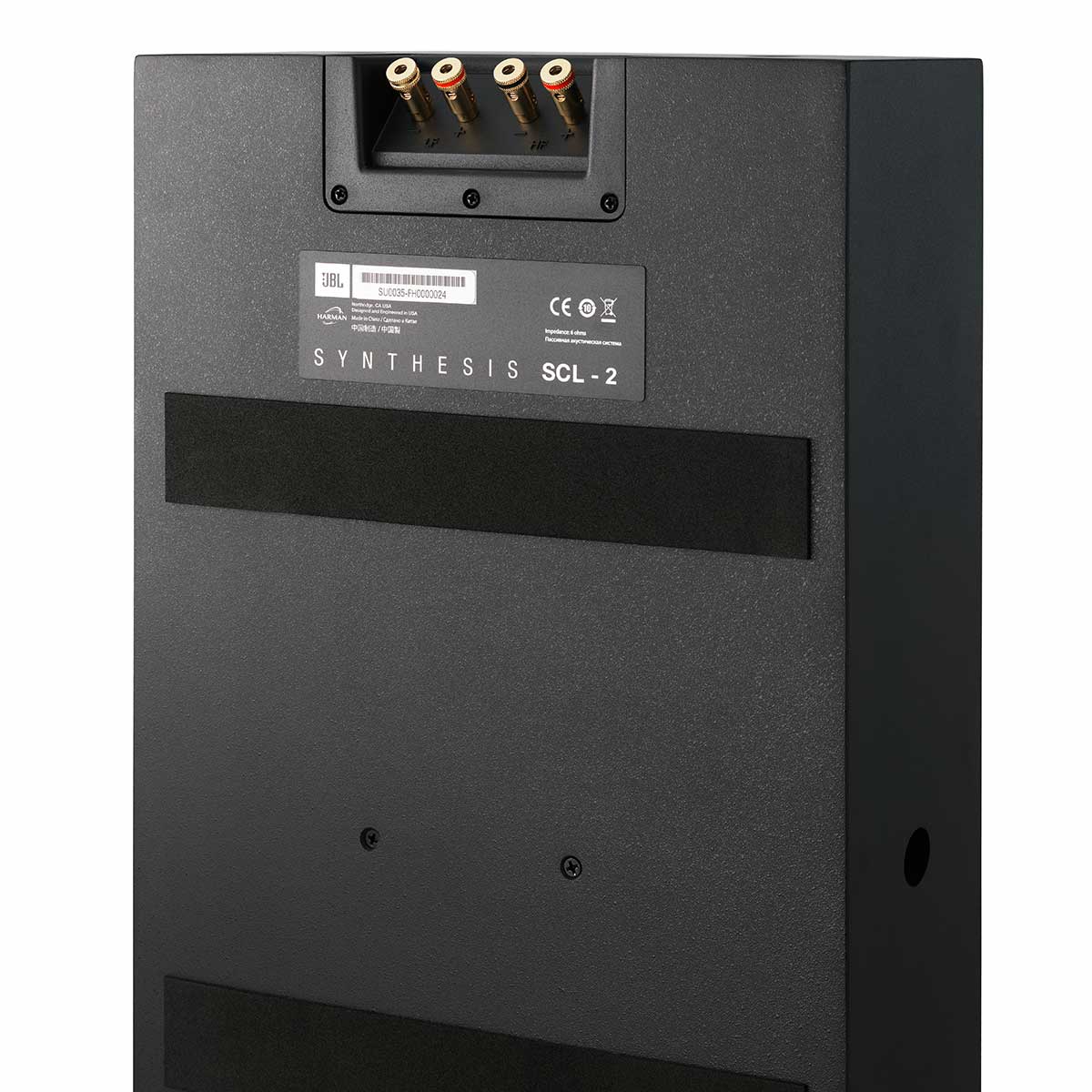

- Bi-Wire and Bi-Amp capable network using gold-plated binding posts on the rear enclosure, and an easy Molex® baffle to network connection
- Zero-bezel, magnetically-attached grille can be painted to match décor
General Specifications
- Speaker type - 2½-way in-wall loudspeaker
- Low-frequency transducer - Three 8” (200mm) cast-frame, Advanced Aluminum Matrix cone woofers
- Mid/High-frequency transducer - D2415K, 1.5” (38mm), dual annular ring Teonex® diaphragm compression driver mounted to Sonoglass® horn/baffle
- Maximum recommended power - 445 Watts RMS (CEA-426B specification, calculated onto the SCL-2 rated load impedance)
- Frequency response (-6 dB on-axis) - 57 Hz – 25 kHz
- Coverage area (-6dB@20kHz) - 80 x 70 Degrees (Hor x Vert)
- Coverage area (-6dB@10kHz) - 100 x 100 Degrees (Hor x Vert)
- Sensitivity (2.83V@1m) - 92dB
- Nominal Impedance - 6 Ohm
- Crossover frequencies - 225Hz; 1.3kHz
- Enclosure type - Sealed in-wall mount with included back box
- Inputs - Dual gold-plated binding posts
- Finished grille dimensions (H x W) - 40.25” x 12.84” (1022.4mm x 326mm)
- Final cutout dimensions with backbox (H x W) - 38.5” x 11.75” (977.9mm x 298.5mm)
- Mounting depth with backbox - 5.8” (147mm)
- Weight - 53.5 lb (24.3 kg)
- Finishes - Matte Black with white paintable grille
