Powerful, dynamic in-wall sound from JBL

Are you mapping out a new custom-installed home theater? JBL's Studio 6 88LCR in-wall speaker offers dynamic, revealing sound that's ideal for each channel of your system. Install it vertically as a left- or right-channel speaker, or horizontally as a center channel for seamless, voice-matched surround sound throughout your room. Its drivers are specially configured to sound great in both orientations.

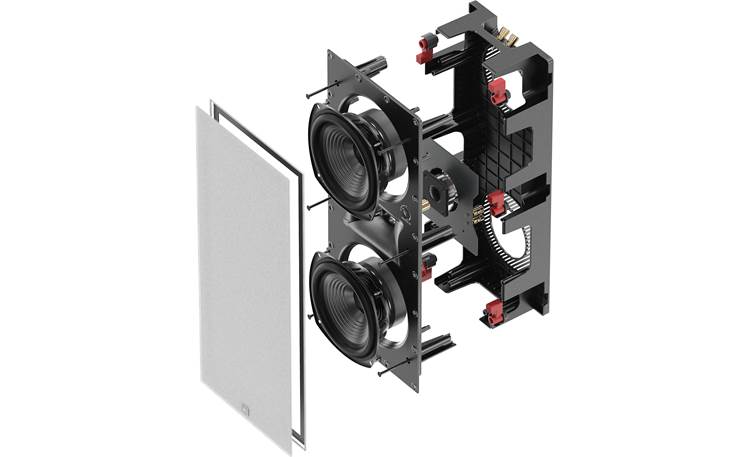

An expanded view of the 88LCR's advanced driver assembly.

A unique driver array delivers superb sound

JBL uses horn-loaded compression drivers in speaker arrays at large concert venues — they're able to fill space with clear sound in a way a standard dome tweeter can't. This same technology is used in the Studio 6 88LCR for expansive, crystal-clear high frequencies.

JBL's proprietary HDI (High Definition Imaging) waveguide technology helps the compression driver deliver optimum sound quality throughout your room. Dual 8" PolyPlas® woofers complement the compression driver, serving up tight, clean bass and articulate midrange with movies, TV shows, and video game soundtracks.

Adjust the sound to your space

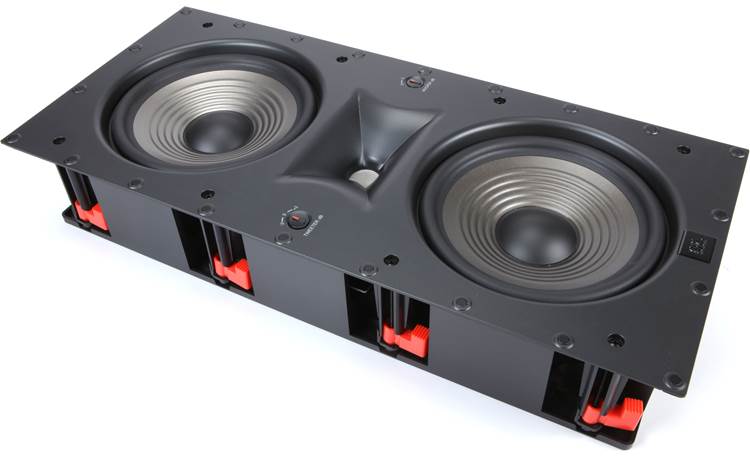

The Studio 6 88LCR has two front-panel level controls that let you adjust high- and low-frequency output to best suit your room's acoustics. Use them in conjunction with your home theater receiver's auto-calibration system to tailor the sound to your space.

Product highlights:

• ideal for use in a custom-installed home theater or in-wall stereo music system
• installs horizontally as a center channel, or vertically as a left- or right-channel speaker
• dual 8" PolyPlas woofers for crisp bass and articulate midrange
  • two-position level control cuts low-frequency output to best match your room's acoustics
• 1" horn-loaded high-frequency compression driver
  • HDI (High Definition Imaging) waveguide technology for smooth, uniform response across a wide listening area
  • three-position level control cuts or boosts high-frequency output
• frequency response: 43-20,000 Hz
• recommended amplifier power: 50-175 watts RMS
• nominal impedance: 6 ohms
• sensitivity: 96 dB

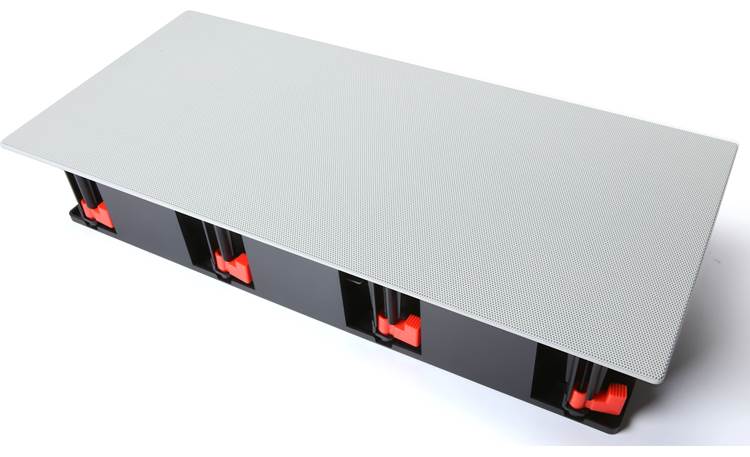

• includes paintable, zero-bezel magnetic grille

Dimensions and warranty:

• cutout dimensions: 8-3/4"W x 20-7/16"H
• overall dimensions: 9-15/16"W x 21-9/16"H
• mounting depth: 3-3/4"
• warranty: 5 years
