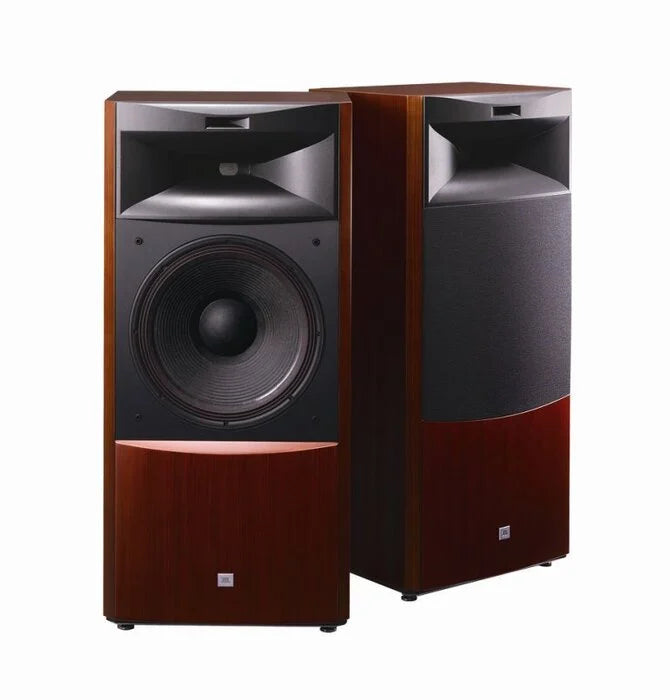

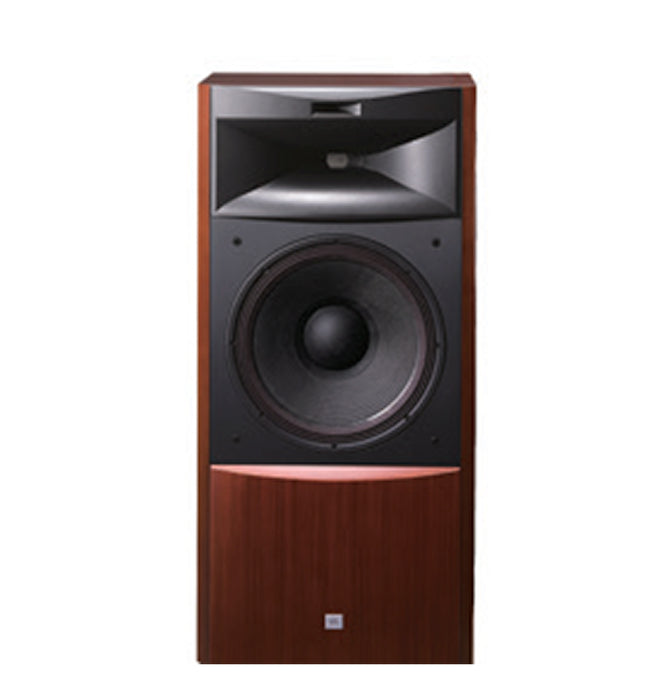

JBL S4700

At its foundation, the S4700 uses an all-new cast-frame 15" Woofer ( 2216Nd ) with a powerful dual 3 Voice coil and neodymium motor structure for outstanding balance with the horn-loaded compression drivers.

Mid- and high-frequencies are reproduced by a pair of titanium diaphragm compression drivers and a single-piece, SonoGlass dual horn assembly. The 2" Aqua-Plas-coated titanium diaphragm compression driver ( 175Nd-3 ) is mated to a 90° x 60° Bi-Radial horn and delivers mid- and high-frequencies with lifelike dynamics and startling realism while an ultra-high frequency 0.75" titanium diaphragm compression driver ( 138Nd ) with a 60° x 30° Bi-Radial horn recreates critical air and spaciousness.

Premium-quality network components and dual binding post inputs ensure audiophile performance in any application.

The attractive furniture-grade cherry wood veneer enclosure is internally braced at critical points and is tuned via a rear-firing port.

The S4700 is intended for use in high-performance 2-channel audio systems or as an LCR loudspeaker in a JBL Synthesis multi-channel home theater installation.
