description

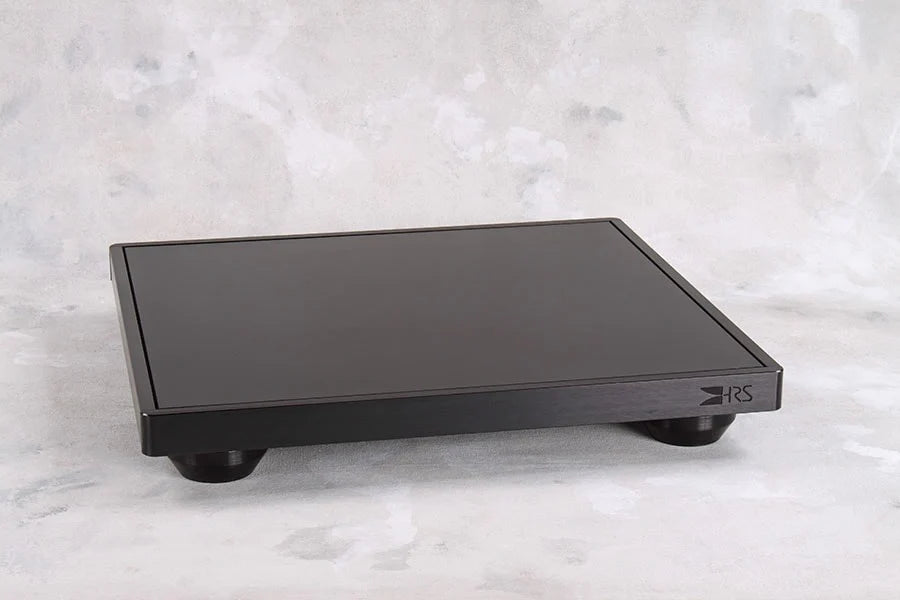

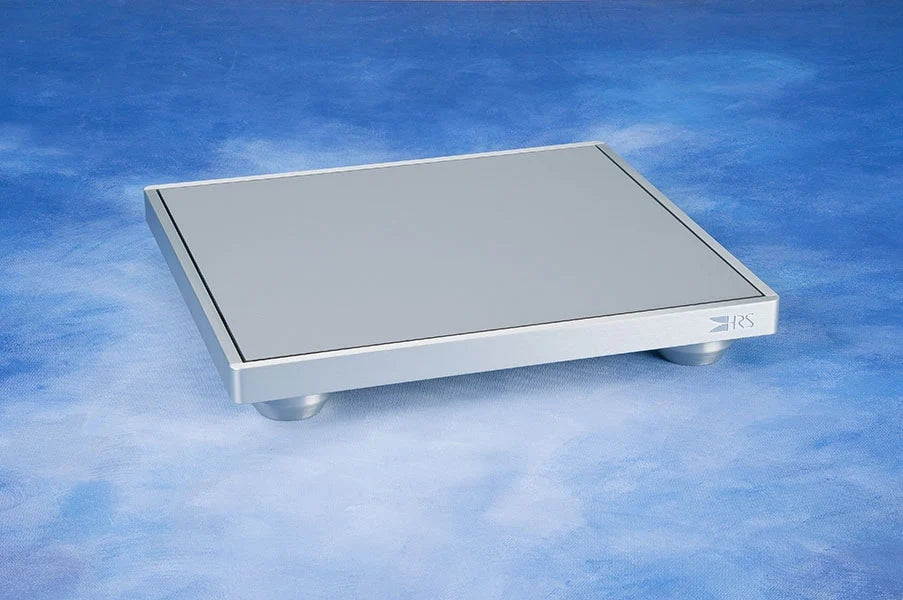

HRS R3X Isolation Base

The R3X Isolation Base is a highly innovative design that eliminates noise, revealing a new level of musical performance. It is manufactured from five different materials including a proprietary resonance control stage and billet machined aircraft quality aluminum trim.

The R3X load range is matched to the component weight for maximum performance just like our high performance S1 and reference level M3X design. The R3X can also be modified in the future to preserve initial investment. This is a unique product that offers customers true Harmonic Resolution Systems performance that is derived from a decade of experience creating industry leading designs.

The broadband noise reduction system in the R3X maximizes performance and is highly effective on a wide range of surfaces and structures. The low profile compact design also minimizes space requirements.

The R3X Isolation Bases integrate directly into the HRS audio stand frames.

Ordering information

Once your order is received, we will contact you to obtain your component information. This allows us to ensure the proper load level for your equipment.

The R3X Isolation Base is produced in two standard sizes and is available in a black or silver finish. Each size can be purchased in any of the four different load ranges to optimize component performance.

If one of the standard sizes or load ranges does not fit your needs, HRS also offers hundreds of custom designs in th M3X Isolation Base product line, including custom designs for all large turntables and amplifiers.

Spcifications

• Model: R3X-1719
• Dimensions: 17″ x 19″ x 3″
• Base Weight: 24.5 LB
• Yellow Load Range: 0 – 35 LB (0 – 16.0 KG)
• Red Load Range: 36 – 60 LB (16.1 – 27.4 KG)
• Green Load Range: 61 – 100 LB (27.5 – 45.6 KG)
• Blue Load Range: 01 – 155 LB (45.7 – 70.3 KG)

• Model: R3X-1921
• Dimensions: 19” x 21” x 3”
• Base Weight: 30.0 LB
• Yellow Load Range: 0 – 30 LB (0 – 13.8 KG)
• Red Load Range: 31 – 55 LB (13.9 – 25.1 KG)
• Green Load Range: 56 – 95 LB (25.2 – 43.3 KG)
• Blue Load Range: 96 – 150 LB (43.4 – 68.0 KG)
