Connected Class A/B integrated amplifiers supply 150 watts per channel with an integrated DAC, network streamer, and Moving Magnet phono input. Featuring SoundEngine2 real time distortion cancellation and smart home automation compatibility, this unit anchors a premium sound system setup.
The Hegel H200 Integrated Amplifier delivers high-end audio performance, streaming flexibility, and structural control within a single component. Known as “The Connected”, this unit anchors modern audio systems by combining a powerful 150 watts per channel analog Class A/B amplifier with an internal digital-to-analog converter and an integrated network streamer. The system remains stable down to demanding 2ohm loads, allowing it to drive complex speaker configurations with absolute composure.
To retain signal purity, the unit utilizes patented SoundEngine2 technology that analyzes and cancels distortion in real time before it passes through the signal path. A remarkably high damping factor of more than 4000 provides tight authority over loudspeaker drivers, ensuring bass notes start and stop with accuracy. The internal digital architecture contains specialized shielding, separate circuit boards, and careful grounding to keep digital switching noise away from the sensitive analog stages. This digital suite accommodates network streaming via Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, Apple AirPlay, Google Cast, and Roon Ready. It also features a USB-A input that indexes up to 10,000 songs directly from connected drives.

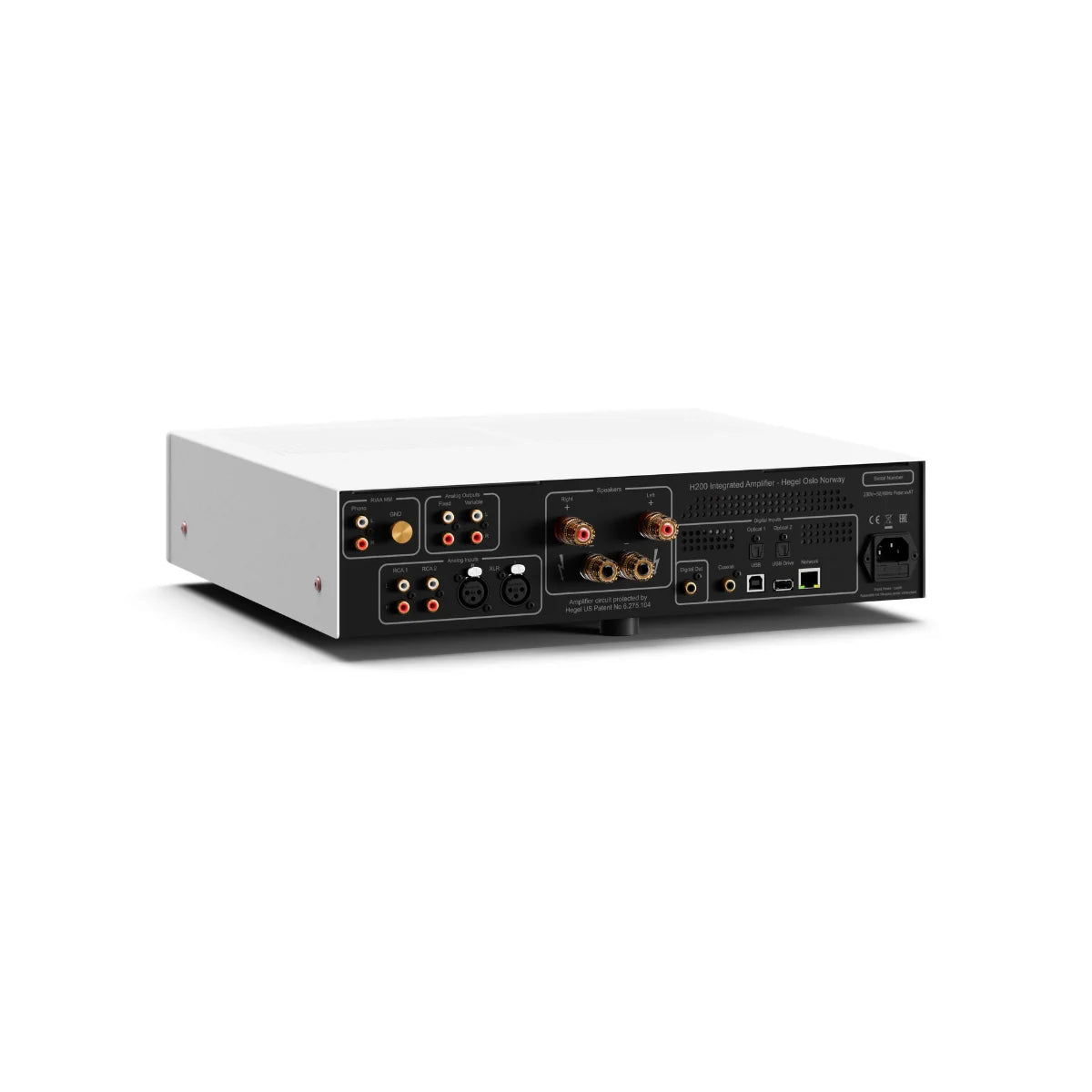

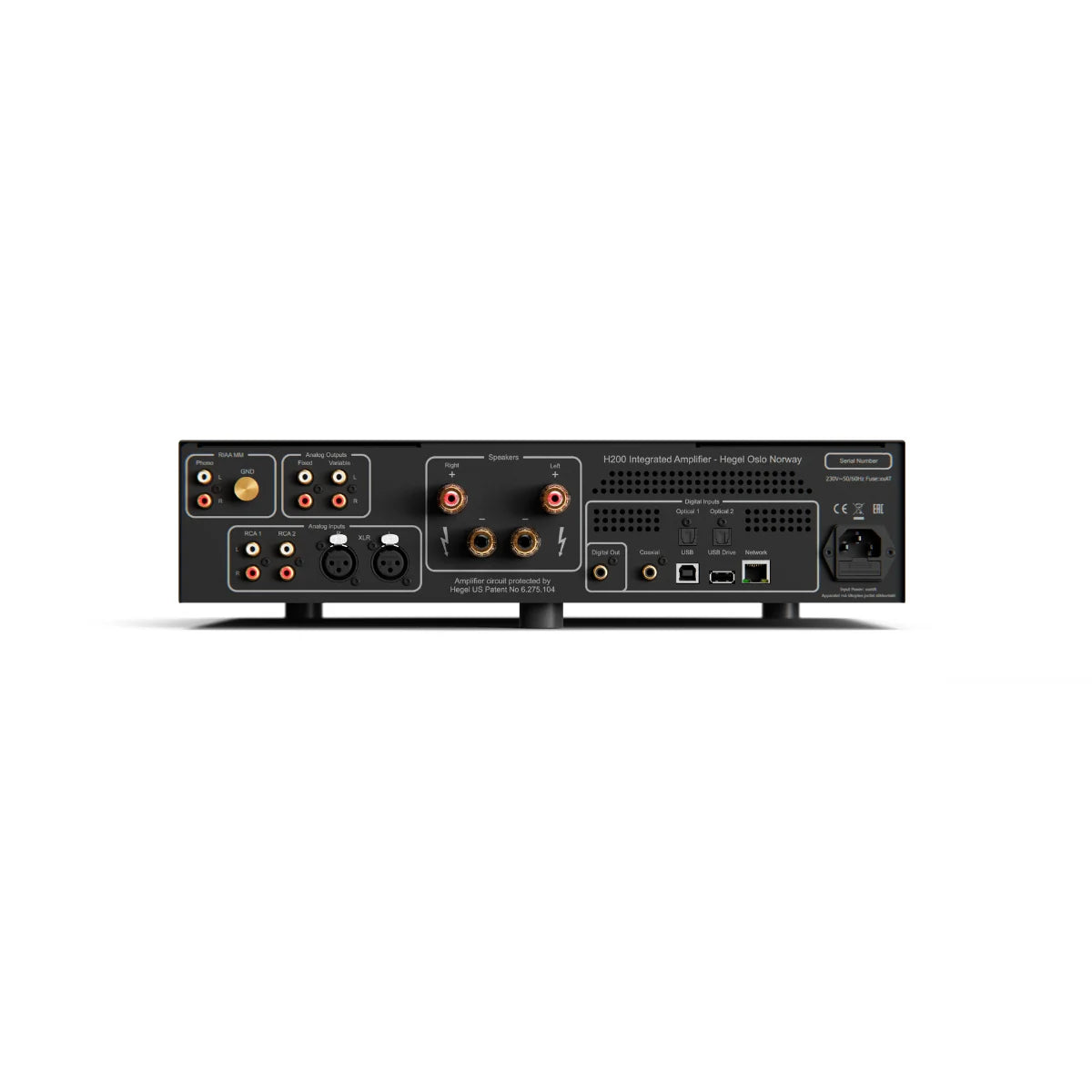

Its analog assets include a balanced XLR input, two unbalanced RCA inputs, and a premium Moving Magnet phono stage featuring hand-matched FET transistors. For custom integration, the device includes digital input sensing, customizable display dimming, and the ability to learn TV remote volume commands. It integrates into automated environments via Control4 and Crestron protocols, making it a highly capable hub for advanced smart home integration or residential sound system setup.
| Model | Hegel H200 |
|---|---|
| Power Output | 2 Ă— 150W into 8 Ohms @ 1kHz, 1% THD, 100/120/230V AC |
| Minimum Load | 2 Ohms |
| Analog Inputs | 1 Ă— Balanced (XLR), 2 Ă— Unbalanced (RCA) |
| Phono Input | 1 Ă— Unbalanced (RCA) for Moving Magnet (MM) |
| Digital Outputs | 1 Ă— Coaxial S/PDIF - 24/192 1 Ă— Coaxial (RCA) S/PDIF - 24/192 2 Ă— Optical S/PDIF - 24/96 1 Ă— USB B - 24/192 1 Ă— USB A 2.0 - USB Drives (10,000 songs) 1 Ă— Network - 24/192 |
| Line Level Outputs | 1 Ă— Unbalanced Variable (RCA) 1 Ă— Unbalanced Fixed (RCA) |
| Streaming Services | Spotify Connect (Lossless), TIDAL Connect, Qobuz Connect, Apple AirPlay, Google Cast, Roon Ready, Airable Internet Radio & Podcast, UPnP |
| Streaming Formats | MP3, WAV, FLAC, ALAC, AIFF, AAC, PCM, Ogg |
| Smart Home Compatibility | Control4, Crestron Home, Crestron SIMPL |
| Frequency Response | 5Hz–100kHz |
| Signal-to-Noise Ratio | More than 100dB |
| Crosstalk | Less than -100dB |
| Distortion | Less than 0.01% @ 50W, 8 Ohms, 1kHz |
| Intermodulation | Less than 0.01% (19kHz + 20kHz) |
| Damping Factor | More than 4000 (main power output stage) |
| Dimensions / Weight | 43 Ă— 41 Ă— 12 cm (W Ă— D Ă— H), 13.6 kg |
| Dimensions / Weight (US) | 17 Ă— 16.2 Ă— 4.7 in (W Ă— D Ă— H), 30 lbs |
| Finish | Black / White |
