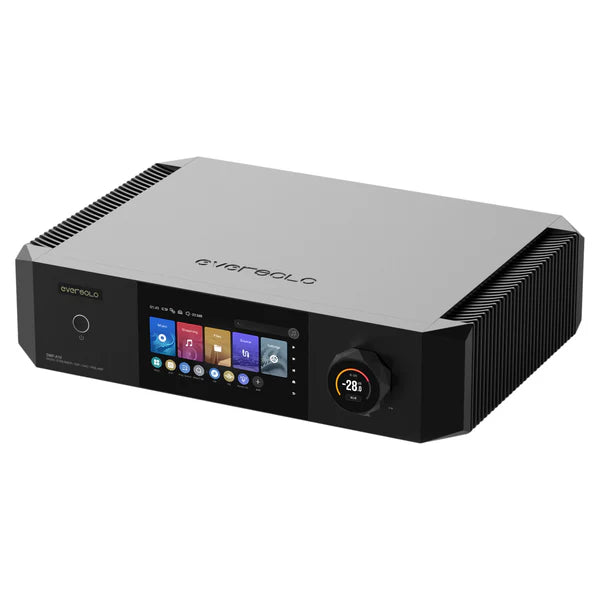

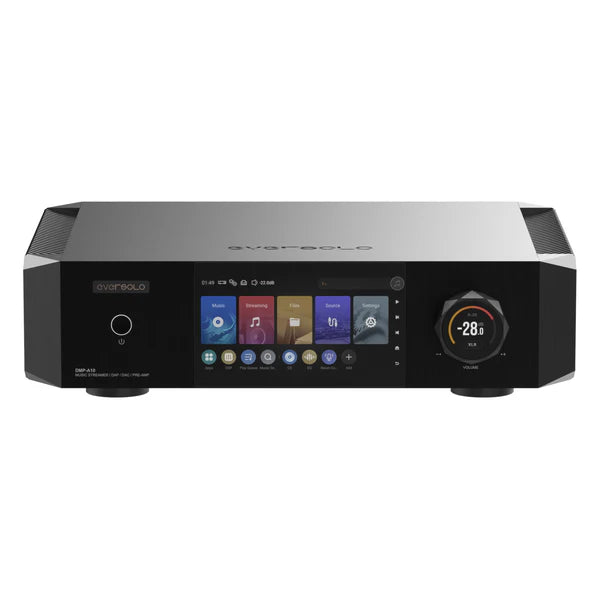

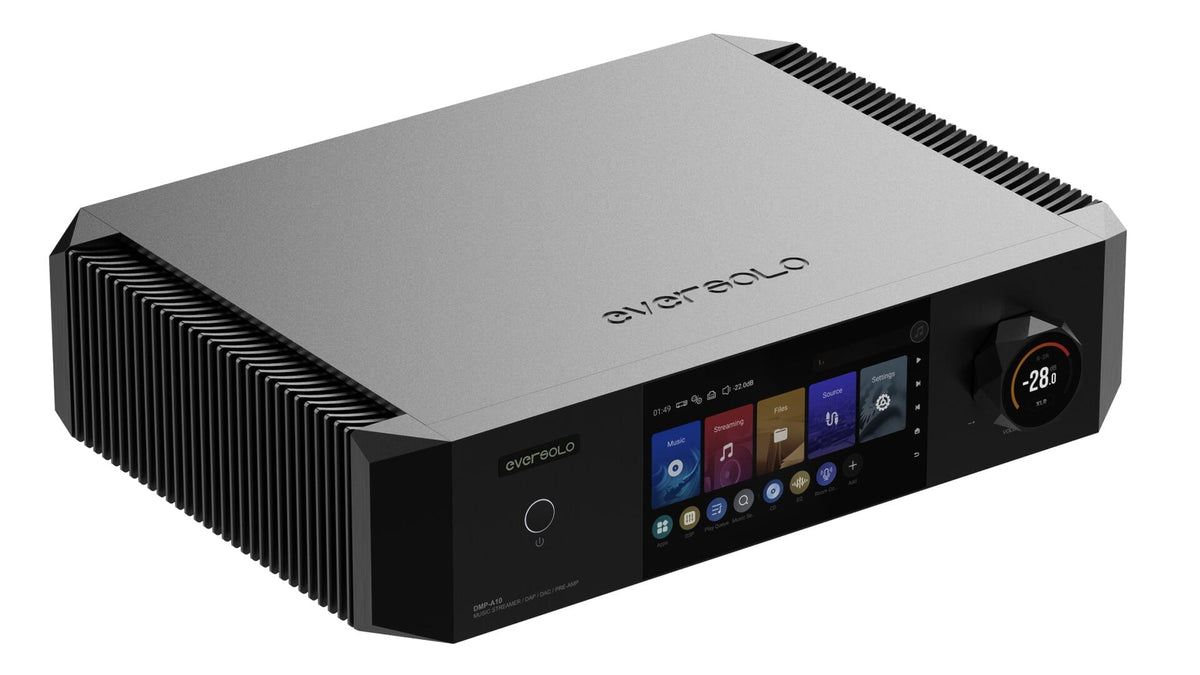

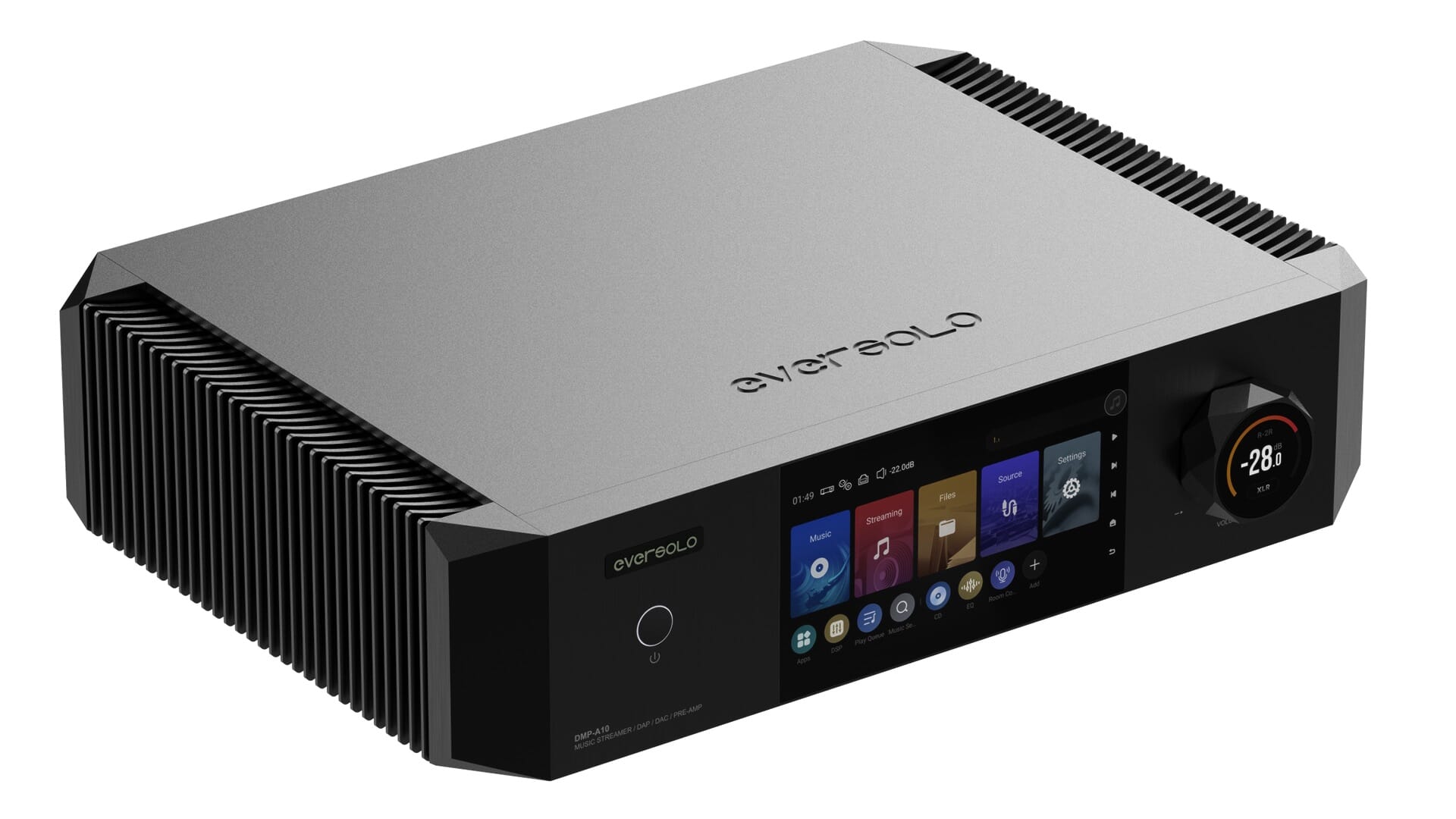

Eversolo DMP-A10 Flagship Streaming DAC, Preamp

With OCXO clock, isolated USB, double sub out, SFP fiber port, digital room correction, 6.5" touchscreen, and balanced analog preamp

The flagship streaming DAC from this new and acclaimed brand features a heavyweight CNC chassis and audiophile-grade components: WIMA capacitors from Germany, TI op-amps from the US, NICHICON capacitors and Murata SMT parts from Japan. A high-speed electrical isolation system that keeps all the circuit boards insulated from noise. An advanced isolation circuit offers a high-fidelity USB connection.

The DMP-A10 offers TIDAL, Qobuz, Amazon Music, Tuneln, IDAGIO, Radio Paradise, SoundCloud, Calm Radio, KKbox, Highresaudio, and more to come. In addition to two high-speed USB 3.0 ports and two sets of SSD slots, the DMP-A10 supports NFS, SMB, UPnP, and more sharing protocols, allowing you to stream media from NAS devices or network drives effortlessly. Even high-bitrate files like DSD512 master recordings can be played without stuttering. Additionally, it supports loading and playing music from WebDAV, Plex, Emby, and Jellyfin.

The Eversolo custom-developed temperature control technology for the OCXO clock system ensures that the audio crystal oscillators operate at a constant optimal temperature point, thus eliminating frequency fluctuations caused by temperature changes, and delivering extremely low phase noise. Each oscillator undergoes a strict testing process and offers jitter levels below 50 fs.

An SFP fiber port (SFP module not included) allows you to use fiber optic Ethernet to eliminate noise from copper cables.

DSP and DDC

With Eversolo Digital Room Correction, the DMP-A10 analyzes your listening environment with the high-precision microphone, adjusting sound frequencies through complex algorithms to eliminate acoustic issues. The result? A listening experience that feels more immersive and lifelike, tailored specifically to your space.

The DMP-A10 supports DDC (Digital to Digital Conversion). Digital signals from USB audio input, coaxial/optical input, and ARC input can be output as SPDIF signals or analog signals after various EQ adjustments. Additionally, analog signal input can be captured by the high-spec ADC (up to 192kHz), then output as SPDIF signals or analog signals after EQ adjustments.

Analog and Power Quality

The DMP-A10 is equipped with a high-performance fully balanced preamp circuit, supporting XLR/RCA analog inputs. It features a +10 dB analog gain and the R-2R analog volume control, ensuring ultra-low noise and distortion, providing better signal-to-noise ratio, dynamic range, and other performance metrics.

To further enhance sound purity, the DMP-A10 features dual power supplies with ultra-low background noise, providing stable power output for both the digital system and analog audio circuits. The ripple of the analog audio power supply can be reduced to below 30µVrms, creating a quiet and pure listening environment. Additionally, it incorporates a patented intelligent switching technology for the linear power supply voltage input, enabling compatibility with voltages worldwide without flipping switches.

A Bluetooth/IR remote is included.

Specifications

DAC Chip: ES9039 Pro

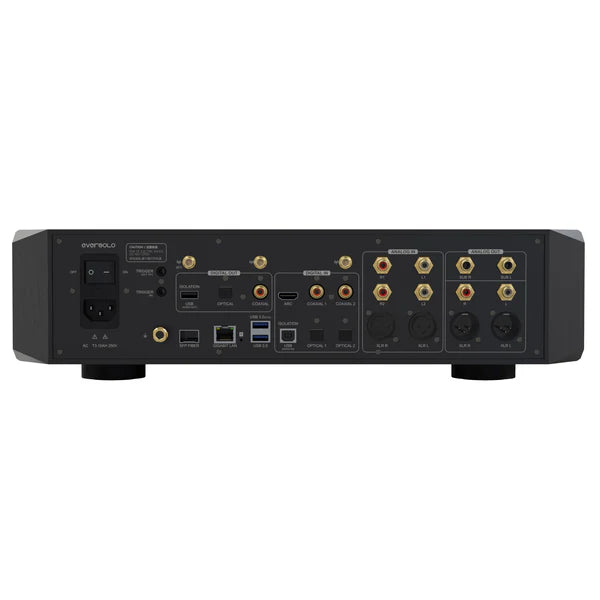

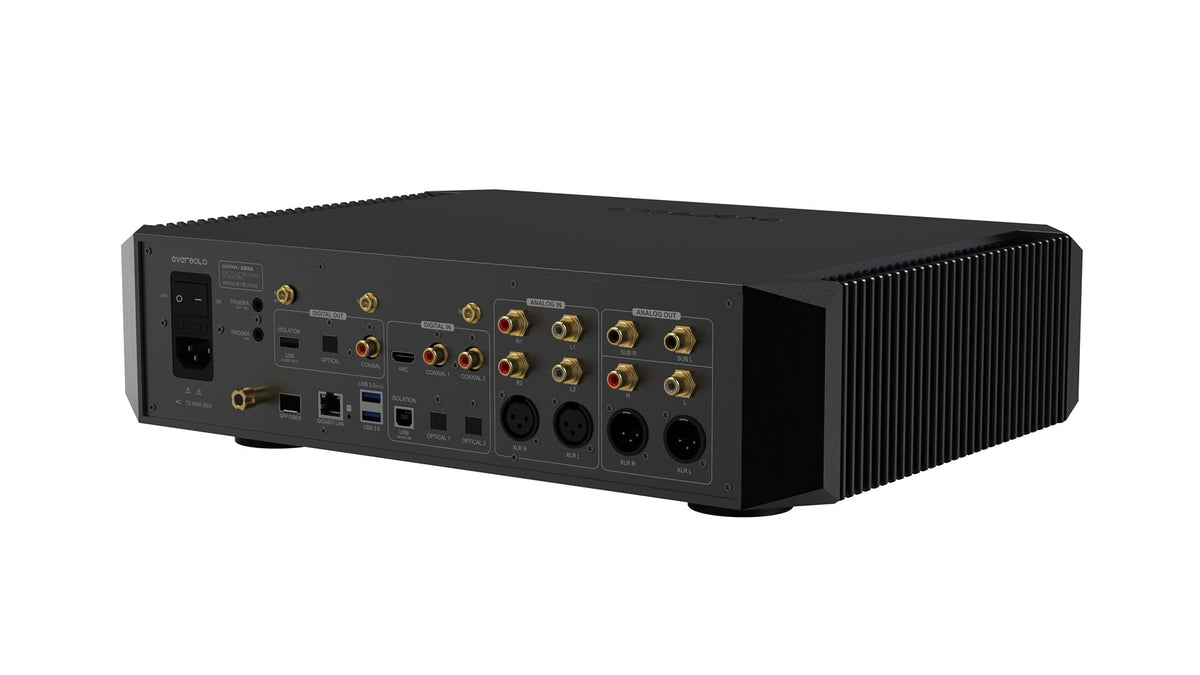

Inputs
Digital: 2 x coax, 2 x TOSLINK, 1 x USB-B, 1 x HDMI ARC
Analog: 2 x stereo RCA, 1 x stereo XLR

Outputs
Digital: 1 x coax, 1 x TOSLINK, 1 x USB Audio
Analog: 1 x stereo RCA, 2 x RCA sub, 1 x stereo XLR

Network: 1 x SFP Fiber, Ethernet, 2 x USB 3.0

Dimensions (WDH):  17" x 12" x 4.6" (430 x 310 x 117 mm)
