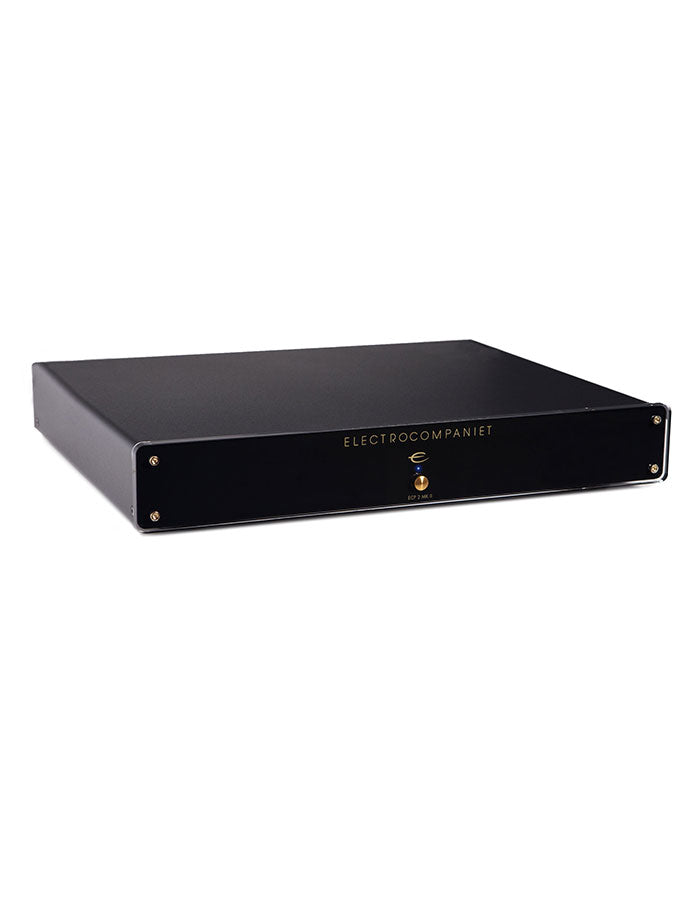

With renewed international enthusiasm for the vinyl format, a world-class phono preamplifier or RIAA stage is more important in a reference analog setup than ever before. Â Electrocompaniet's ECP2-MKII has become a new favorite of reviewers and enthusiasts alike. A true benchmark product in its price bracket, much like other EC components. Â
ECP2-MKII incorporates only state-of-the-art instrumentation, operational amplifiers (op-amps) along with the highest quality discrete components in the signal path. Of course it is all DC coupled.
ECP2-MKII introduces an all new chassis and front plate design, in line with other products in Electrocompaniet's Classic Line. Â It will make your vinyl records sing like no other phono preamplifier we know of, and it seems the industry agrees with us.
| Phono section | |
| Gain @ 1 kHz RCA | Adjustable 39,8 – 71,4 dB |
| Gain @ 1 kHz XLR | Adjustable 45,8 – 76,4 dB |
| Resistance loading (RL) | Adjustable 10 Ω – 47 kΩ |
| Capacitive loading (CL) | Adjustable 0 – 350 pF |
| Maximum output level: | 17.5 V rms (+ 25 dB V) |
| Overload margin | > 31 dB @ 1 kHz |
| Output impedance | 100 Ω single-ended, 200 Ω balanced |
| Frequency response | 20 – 20 kHz +/- 0.2 dB |
| RIAA Correction Accuracy | ± 0,1 dB |
| Subsonic filter | -3dB @ 11 Hz, 24 dB/octave |
| Channel separation | > 85 dB, 20 – 20 kHz |
| THD + Noise | < 0.003 % @ 1 kHz |
| S/N-R | 96 dB, 1 kHz, A-weighted, ref. 10 dB V output |
| S/N-R | 91 dB, 1 kHz, A-weighted, ref. 5 mV input |
| S/N-R | 67.4 dB, 1 kHz, A-weighted, ref. 500 μV input |
| Â | Â |
| Dimensions | Â |
| Width | 470 mm / 18.5 inches |
| Depth | 373 mm / 14.6 inches |
| Height | 78 mm / 3 inches |
| Weight |
9 kg. / 19.8 lbs. |
