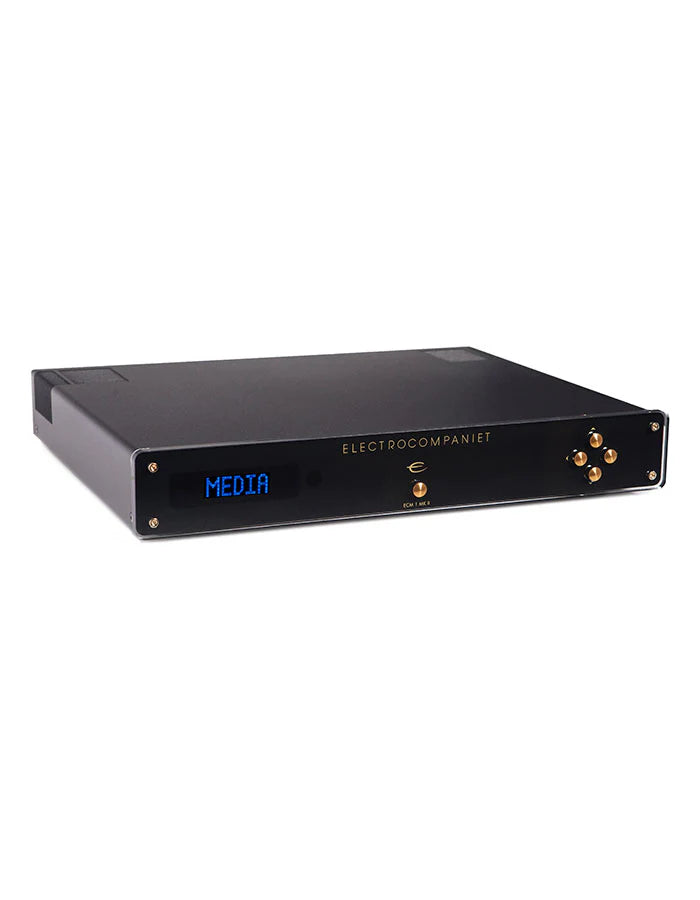

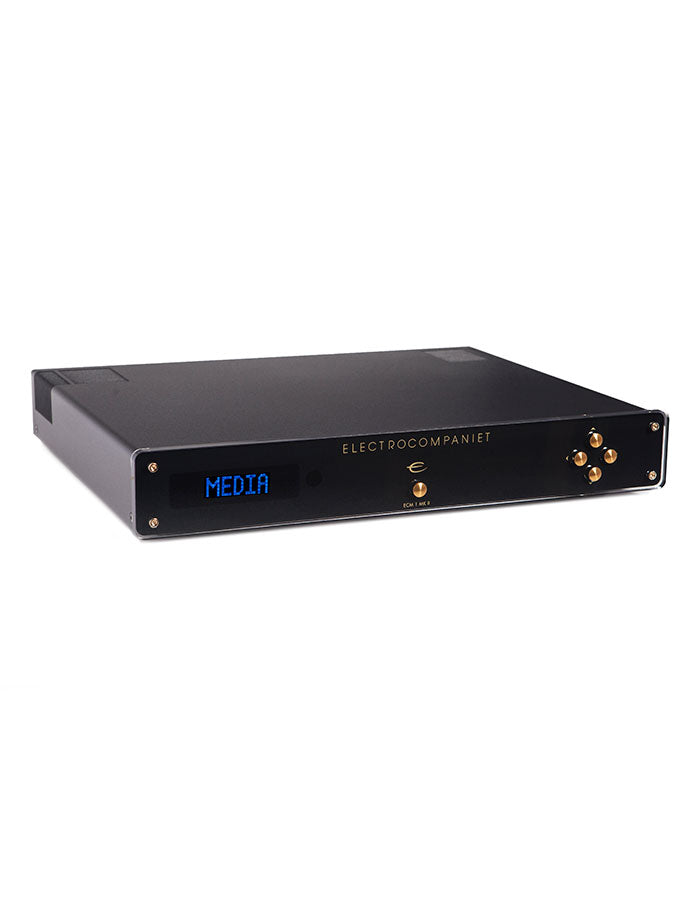

Electrocompaniet ECM 1 MKII High End DAC & Music Streamer
THE FUTURE OF LISTENING AND THE HERITAGE OF ELECTROCOMPANIET
The new ECM 1 MKII is a DAC and music streamer. With the brand new, in-house developed streaming software and app, it plays lossless, DSD and high-resolution digital content in a way that really makes you want to dig deeper into all the delightful music out there. The ECM 1 MKII has updated technical and sonic enhancements, as well as new mechanics and a design in line with the new MKII versions of their products.
EC Software Engine
The ECM 1 MKII uses the same app and interface as our EC Living line, enabling you to play all your music on all of the units.
You don´t have to choose between high-end and multi-room, or flexibility and audio quality. It's all there.
Even better Streaming
ECM 1 MKII's streamer is powerful, flexible and easy to use. It plays directly from Tidal, Spotify and Qobuz and can be fed through AirPlay, DLNA or Bluetooth.
Reference DAC
Two state of the art, natural sounding Cirrus Logic converters handle one channel each with 192 kHz at 24 bits, along with a completely symmetrical analog output stage.
Technical Data
|
| All measurements are made at 120V / 240V //50Hz / 60Hz |
| No. of channels |
2 |
| Output Impedance |
300 Ohms |
| Noise floor (20 - 20 kHz) |
< -145 dB |
| Frequency response |
0.5 - 48 kHz |
| THD+N |
< 0,0005 % |
| Upsampling rate |
192 kHz, 24 bit |
| Digital/Analog conversion |
192 kHz, 24 bit |
| |
|
| Input sampling rate: |
|
| 2 x SPDIF Coax |
192 kHz, 24 bit |
| 2 x SPDIF TOSLink |
192 kHz, 24 bit |
| |
|
| Network connection: |
Wi-Fi or LAN |
| |
|
| Internal drive: |
Docking, self installation. 3.5"/2.5" - unlimited capacity.
|
| |
|
| Supported audio formats: |
All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, AIFF, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz) |
| |
|
|
Supported control interfaces:
|
DLNA, UPnP, Android and iOS remote
Internal storage: docking, self installation
|
| |
|
|
Streaming services:
|
• AirPlay 2 ®
• Spotify ® Connect
• Qobuz ®
• Plays with Audirvāna
• TIDAL ® Connect
• Roon Ready
• DLNA
• Internet Radio
• Bluetooth streaming from any Bluetooth enabled device
|
| |
|
Power consumption
(no load or signal) |
50 W |
| standby |
0.5 W |
| |
|
| Dimensions |
|
| |
|
| Width |
470 mm / 18.5 inches |
| Depth |
381 mm / 14.99 inches |
| Height |
80 mm / 3.14 inches |
| Weight |
8.3 kg. / 18 lbs.
*(without internal drive)
|
