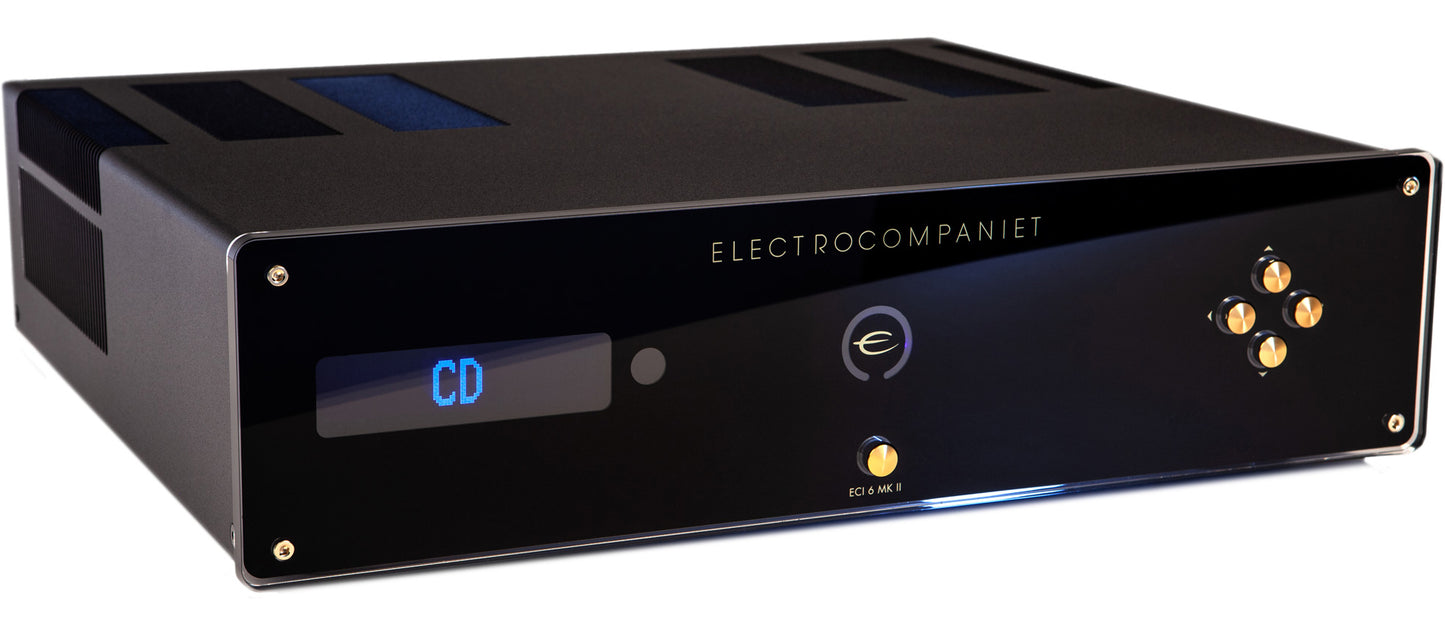

• Electrocompaniet ECi-6 DX MKII Integrated AMP/DAC/STREAMER

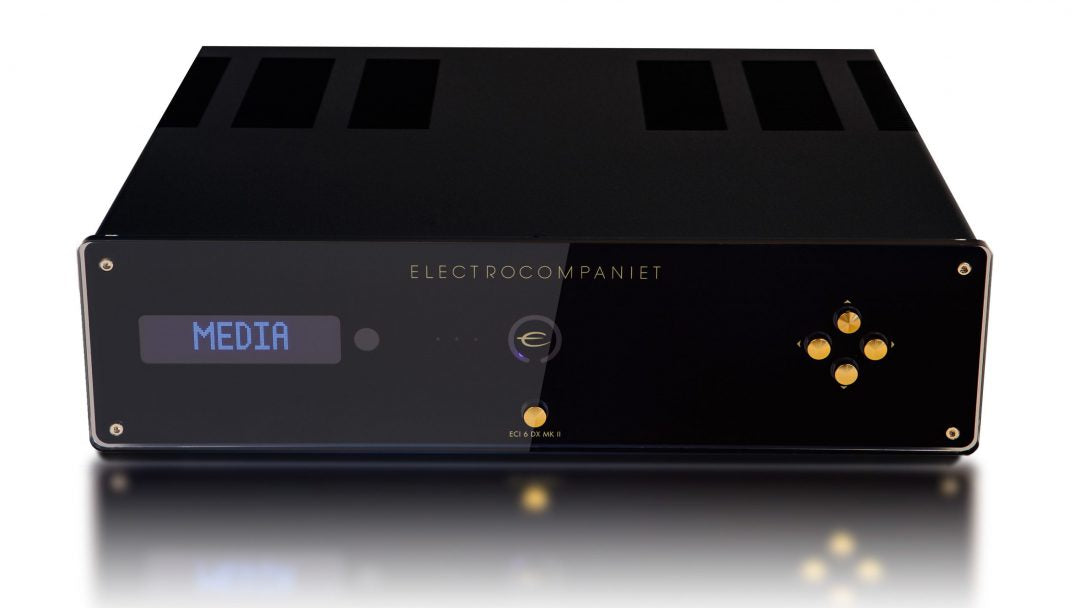

  • Electrocompaniet ECi-6 DX MKII Integrated AMP/DAC/STREAMER front view

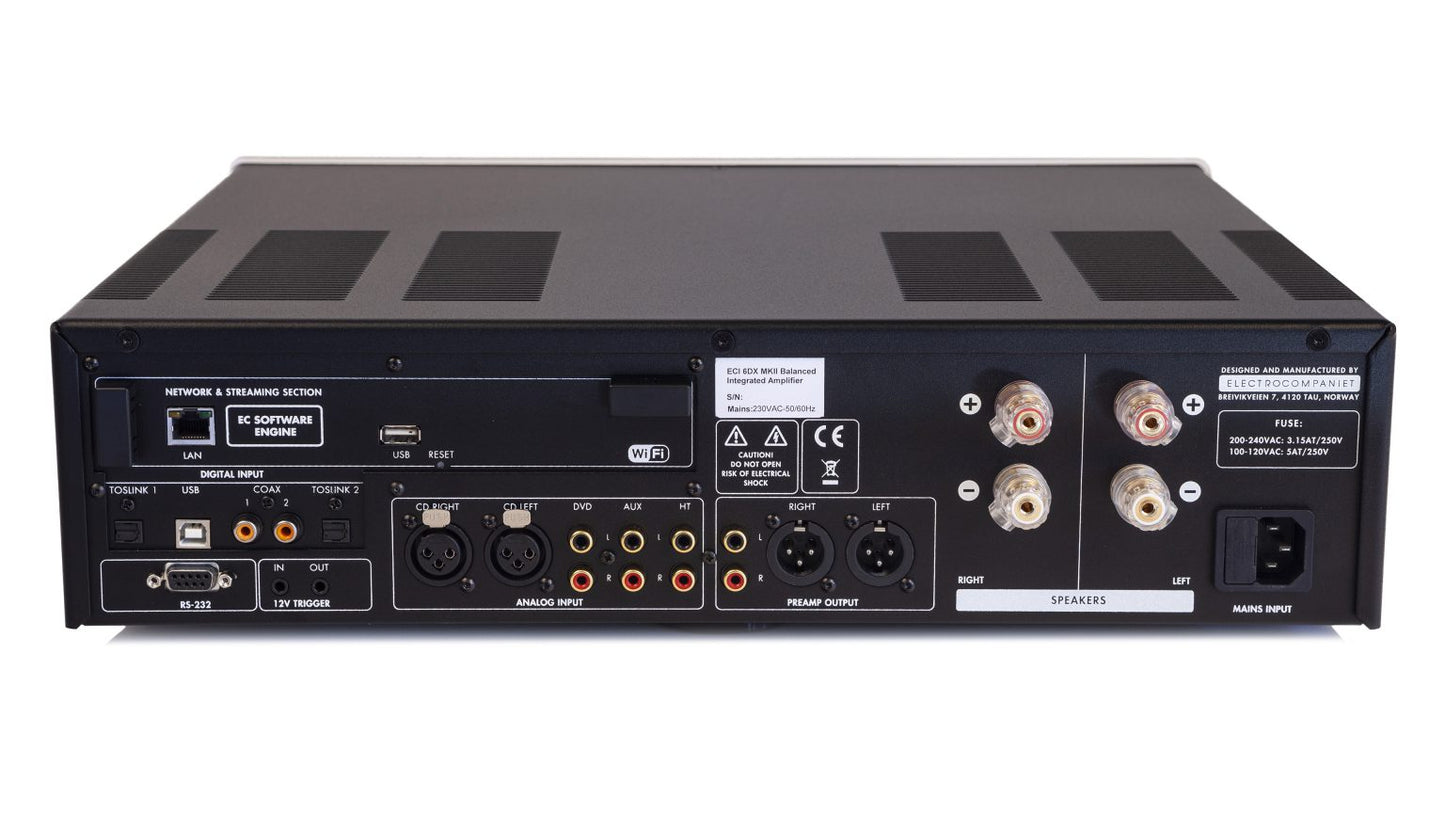

  • Electrocompaniet ECi-6 DX MKII Integrated AMP/DAC/STREAMER- rear view

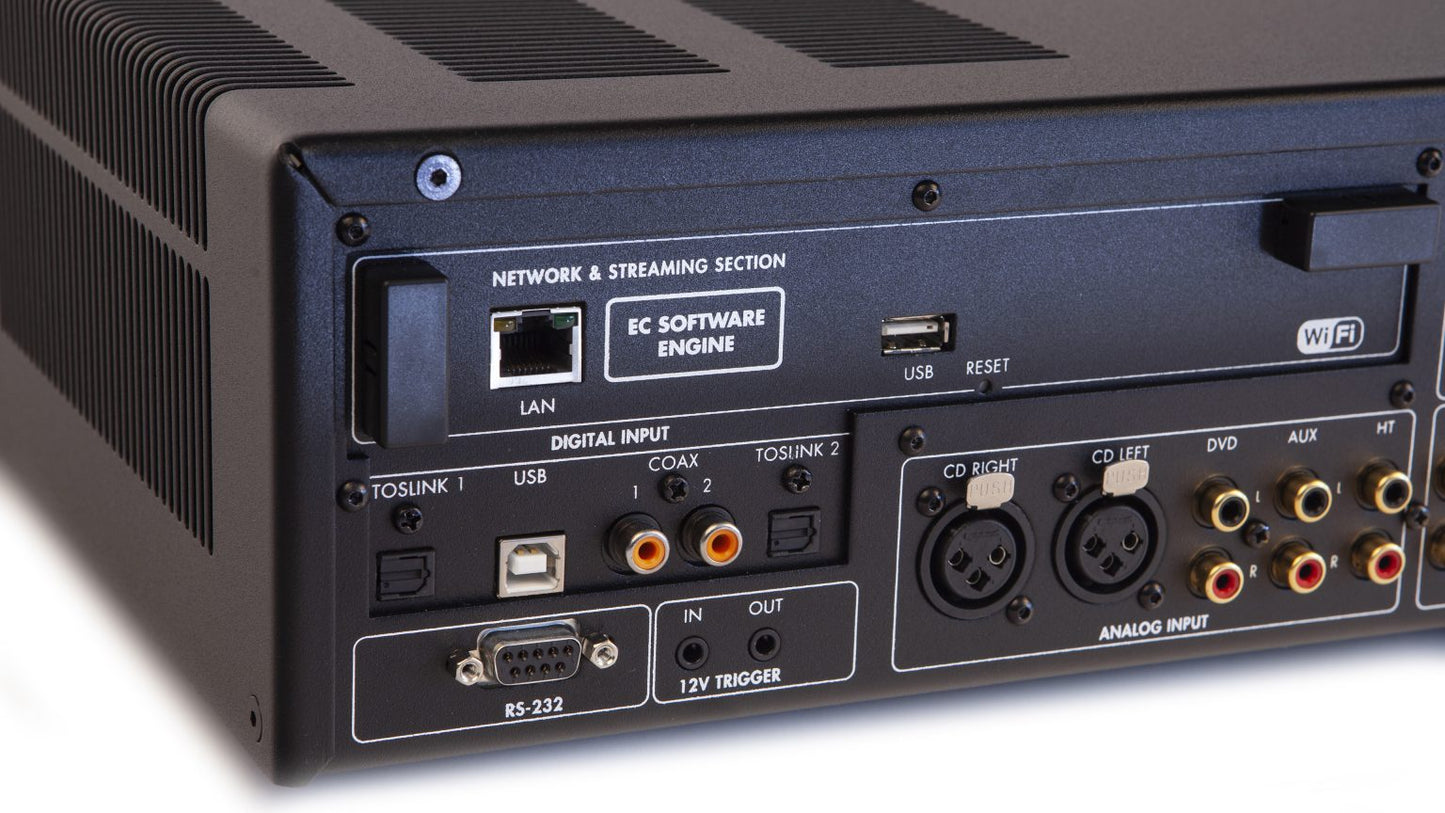

  • Electrocompaniet ECi-6 DX MKII Integrated AMP/DAC/STREAMER- rear close-up
1 5

Electrocompaniet ECi-6 DX MKII Integrated AMP/DAC/STREAMER

PRICE:
$7,500.00 USD
$7,500.00 USD $7,500.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

description

 The new ECI 6 DX MKII combines a best-in-class feature set with cutting edge audio technology and true Electrocompaniet sound.
This single unit is able to play whichever, wherever and whatever audio source you may have, and makes it sound like music was meant to be sounding.

ROON READY

With Roon, you’ll rediscover old favorites and find new music you love. Explore the world of music as you listen, precisely tailored to your tastes.


TIDAL CONNECT

TIDAL Connect allows you to stream your favorite music seamlessly from the cloud straight to your connected devices. TIDAL Connect makes it possible for us to deliver the music you want to hear, uninterrupted and without any loss in quality.

BLUETOOTH-ENABLED

The ECI6 DX MKII introduces Bluetooth support in the ECI 6 DX family, enabling you to stream from any phone or tablet to your ECI6 DX MKII.

IMPROVED
EC SOFTWARE ENGINE STREAMER

Like it’s predecessor, it has an extremely powerful built-in streamer, flexible and easy to use. It can play directly from music services such as Tidal, Qobuz and Spotify, can be fed music through AirPlay or DLNA, and it can even index and play from your own music collection stored on your network.

IMPROVED
CONSTRUCTION

The ECI 6 DX MKII also features the design upgrades introduced with the MKII series, including new front plate design and updated, more rigid chassis.

EC SOFTWARE ENGINE
EC PLAY APP CONTROL

The ECI 6 DX MKII can be operated by the intuitive iOS or Android application, the universal webinterface, or with the straight forward IR remote control.





All measurements are made at 120V / 240V  //50Hz / 60Hz

Digital section:



D/A converter

24 bit/192 kHz

Sample rate converter

24bit / 192kHz

Inputs

SPDIF, 2x Toslink, 1x USB

USB:

asynchronous  up to 24bit/ 192kHz supported

SPDIF:

24bit/ 192kHz

Toslink:

24bit/ 96kHz



Streamer section
• Advanced 802.11 AC WiFi with MIMO
• 1x Gigabit Ethernet (1000Mbps)
• 1x USB for external storage
• iOS, Android and web app

Streaming services

• AirPlay ®
• AirPlay 2 ®*
• Spotify ® Connect
• Qobuz ®
• TIDAL ®
• TIDAL ® Connect
• Roon Ready
• DLNA
• Internet Radio
• Bluetooth streaming from any Bluetooth enabled device

* Future software update.





 Supported formats:
• All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)

Preamplifier section



Input impedance

( Balanced input )

47Kohm

Maximum input level

10 Volt RMS

Noise floor

( 1Vrms, 20 - 20 kHz, balanced)

-135 dB

THD + N

(1Vrms, 20 - 20 kHz, balanced)

<0.004%

Gain (Balanced)

0 dB





Amplifier section



Output Impedance

< 0,02 Ohm

Frequency response

1 – 150 kHz

Channel separation

> 120 dB

THD ( 20 - 20 kHz)

< 0.004%

Maximum peak current

>100A

Damping factor  8 ohm load

>350

I Input sensitivity  120W output

1.3Vrms

Input sensitivity HT  120W output

1Vrms

Gain HT Input

x36 (31 dB)

Rated output power



8 ohms

2 x 125 W

4 ohms

2 x 200 W

2 ohms

2 x 370 W

Power consumption

110 W

Standby

1W

(no load or signal)







Dimensions



Width

470 mm / 18.3 inches

Depth ( with a speaker terminals)

430 mm / 16.9 inches

Height

128 mm / 5 inches

Weight

20,5 Kg / 45 lbs.
