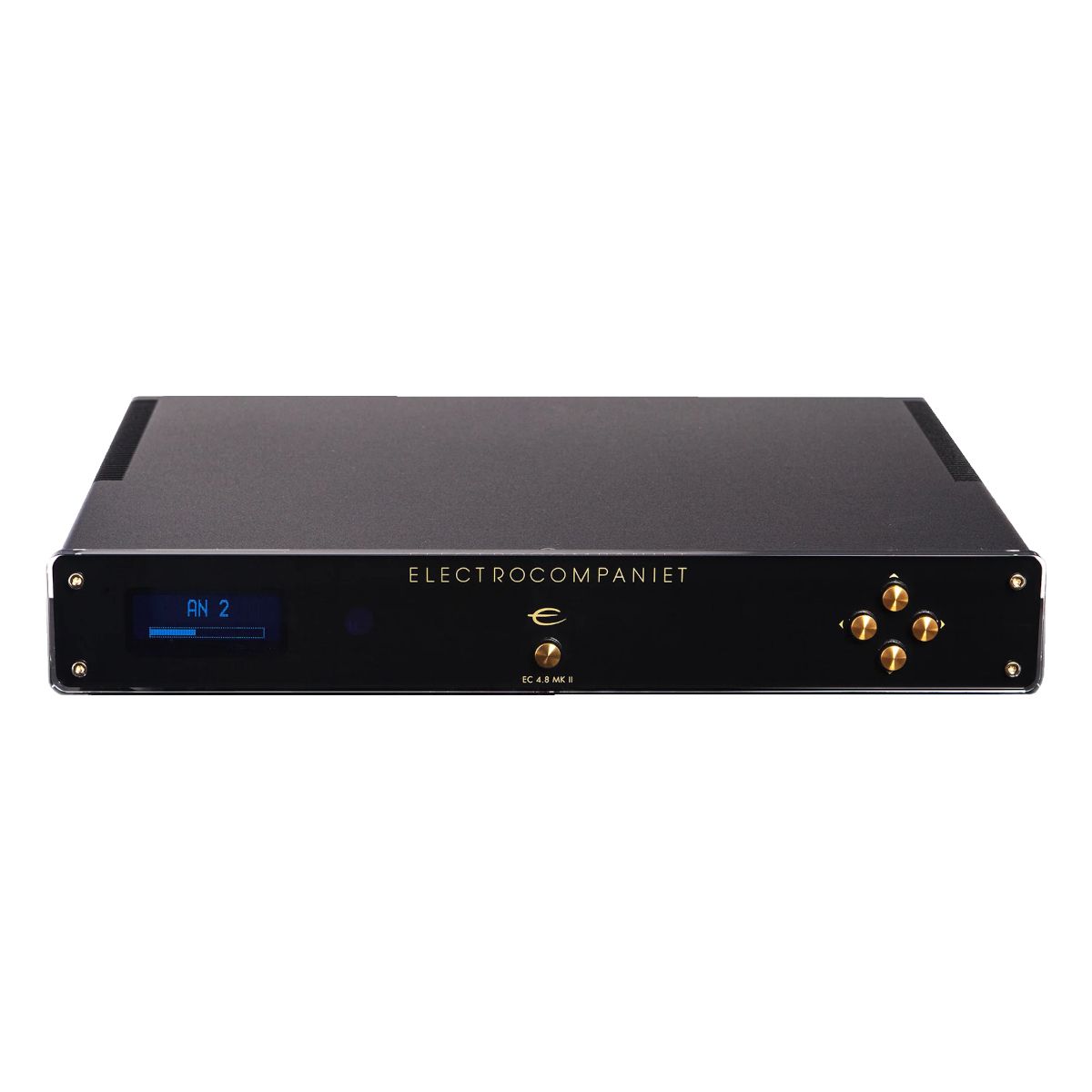

Electrocompaniet - EC 4.8 MKII - Reference Pre-Amplifier
Upgrade your audio system with the Electrocompaniet EC 4.8 MKII Reference Pre-Amplifier. Perfect for audiophiles seeking superior sound quality and performance, this pre-amplifier is an essential component for any high-end audio setup.
The EC 4.8 MKII is designed to deliver exceptional audio clarity and precision. It features advanced circuitry that minimizes distortion and maximizes signal purity, ensuring a rich and immersive listening experience. The pre-amplifier's robust construction and elegant design make it a stylish addition to any audio system. With versatile connectivity options, it seamlessly integrates with your existing components, enhancing overall sound quality.
Experience the outstanding performance of the Electrocompaniet EC 4.8 MKII Reference Pre-Amplifier. Enhance your audio setup with this powerful and precise pre-amplifier, transforming your listening experience and enjoying your favorite music with unmatched clarity and depth.
Specifications
| All measurements are made at 120V / 240V //50Hz / 60Hz | |
| Input impedance | 47 Kohm |
| Output impedance | 100 ohm |
| Max input | +-15 Vp-p ( +- 30Vp-p Bal) |
| Max output | +-30 Vp-p ( +- 30Vp-p Bal) |
| Minimum gain | -111dB |
| Maximum gain | 6dB |
| Noise Floor(0 dB gain) | < -130 dB |
| Frequency responce | 1 – 200 kHz |
| Channel Seperation | > 120dB |
| THD (1V in, 1V out) | <0.002% |
| Power consumption (no load or signal) | 30 W |
| Dimensions and Waight | |
| Width | 470 mm – 18.5 inches |
| Depth | 372 mm – 14.64 inches |
| Height | 80 mm – 3.14 inches |
| Weight | 11.3 kg – 24.9 lbs |

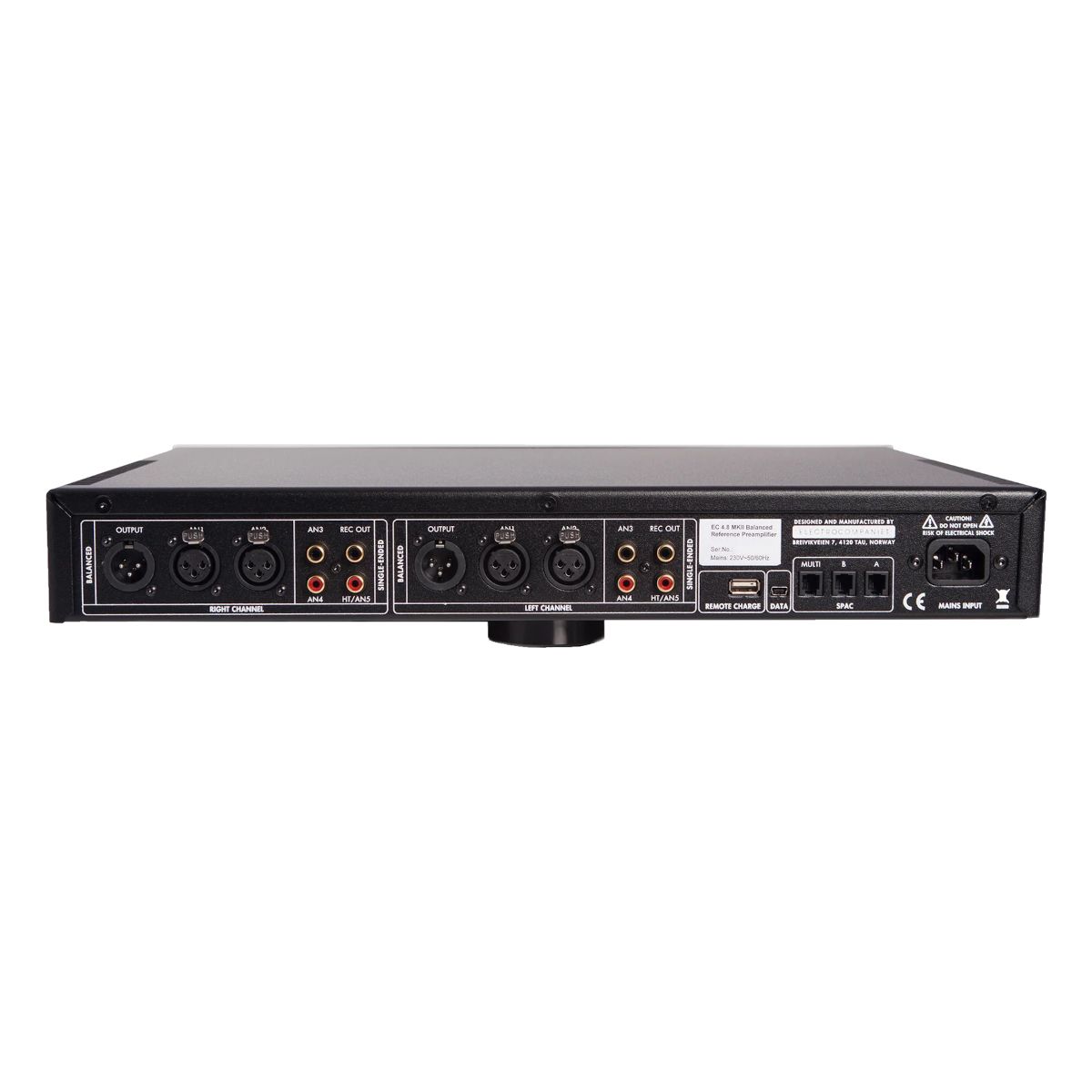

| Inputs | |
| Balanced | 2 x 2 channel |
| Single ended | 3 x 2 channel |
| Control Ports | |
| Nettwork | 3 x SPAC |
| Programming | 1 x USB |
| Outputs | |
| Balanced | 1 x 2 channel |
| Single ended | Record Out |
