EAT C-Dur Turntable

PRICE:
Regular price $3,799.00 USD
Regular price Sale price $3,799.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

Color
Option

description

EAT C-Dur Turntable

Belt-driven with a 10" carbon tonearm, aluminum headshell, and adjustable VTA. Handmade in Europe.

The C-Dur turntable was created to satisfy two customer demands. It has an internal speed control for ease of use and a smaller footprint. It is finished in wood to give the luxury appeal of the Reference tables in a more accessible package.

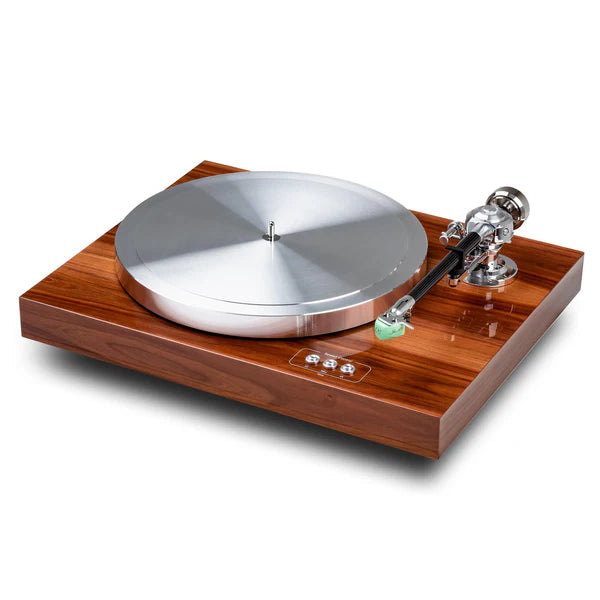

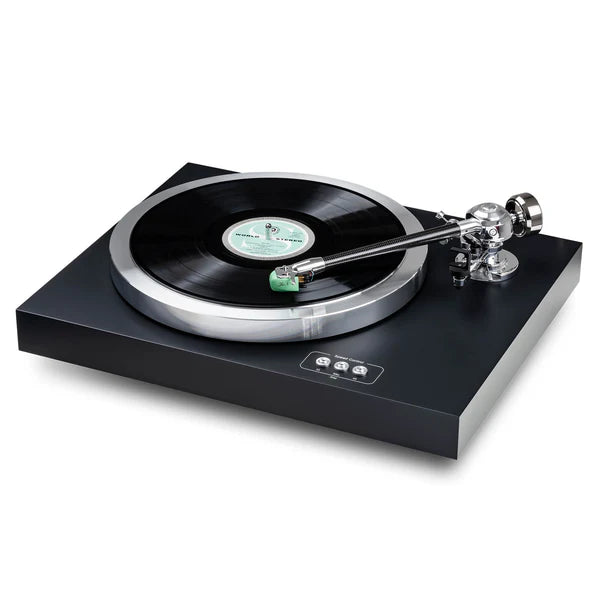

Available in Satin Black and High Gloss Plum Wood finishes, the C-Dur is a step up from the C-Major and C-Sharp. It comes with conical damped aluminum feet, a mass-loaded 11.5 lb aluminum platter, and of course that onboard speed control.

The platter sits on a full aluminum 1.9 lb resonance-free sub-platter. A massive inverted main bearing guarantees silent playback and accurate speeds. The mass-loaded nearly 4 lb bearing block uses a polished stainless-steel spindle with a ceramic ball on the top. This, in combination with a Teflon plate as a bearing mirror offers good damping as well as low friction.

The Tonearm

The 10“ carbon EAT C-Note tonearm combines all advantages of an unipivot arm with a Cardan joint. The uni-pivot in the middle lessens the load on the bearing, and the Cardan bearing ensures high stability and ease of use with very low friction. Inside the arm is a special silicon-based grease to damp resonance by more than 50%.

The carbon tube offers stiffness, the aluminum headshell offers damping. It's a perfect match. A semi-balanced 5P DIN to RCA cable is included. Simply upgrade to a balanced phono cable for the benefit of fully balanced signal transmission.

The Motor

An ultra-low-noise motor is isolated and placed into a steel ring which is then mounted in the chassis. An external DC power supply unit with an AC generator creates a completely clean power for the motor. A special anti-static polished
rubber belt connects the motor with the sub-platter.

The Feet

Three height adjustable damped aluminum feet guarantee perfect stability and  massively reduce risk of acoustical feedback. TPE (Termoplastic Elastomers) inserts greatly help with damping and isolation, making the C-Dur easy to place.

Features

  • 10“ carbon tonearm
  • Special lightweight aluminum headshell
  • Fully adjustable VTA
  • 1.9 lb resonance-free aluminium sub-platter
  • 11.4 lb aluminum platter
  • 3.9 lb mass-loaded bearing block
  • Inverted main bearing with ceramic ball
  • Massive 50 mm MDF plinth
  • Conical damped aluminum feet
  • Isolated motor
  • Motor control for perfect speed stability
  • Electronic speed change 33/45 RPM
  • Dustcover included
  • Audiophile 5P to RCA tonearm cable included
  • Handmade in Europe

Specifications

Speeds: 33/45 RPM

Speed Variance (33 RPM, 45 RPM): ± < 0.08%, ± < 0.09%

Wow and Flutter (33 RPM, 45 RPM): ± < 0.01%, ± < 0.01%

Signal to Noise: -70 dB

Downforce Range: 0 - 30 mN

Supplied Counterweights: 5-13g cartridges

Effective Tonearm Mass: 16.5 g

Effective Tonearm Length: 254 mm

Overhang: 16 mm

Power Consumption (Max, Standby): 8.5 W, 0.5W

Dimensions (WHD): 19.5" x 6.7" x 15.6" (496 x 170 x 396 mm)

Height with Lid Open: 18.7" (475 mm)

Weight: 34.4 lb (15.6kg)
