Bryston B135 Cubed Integrated Amplifier

PRICE:
Regular price $6,995.00 USD
Regular price $6,695.00 USD Sale price $6,995.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: Bryston B135 Cubed Integrated Amplifier

Color
No reviews

description

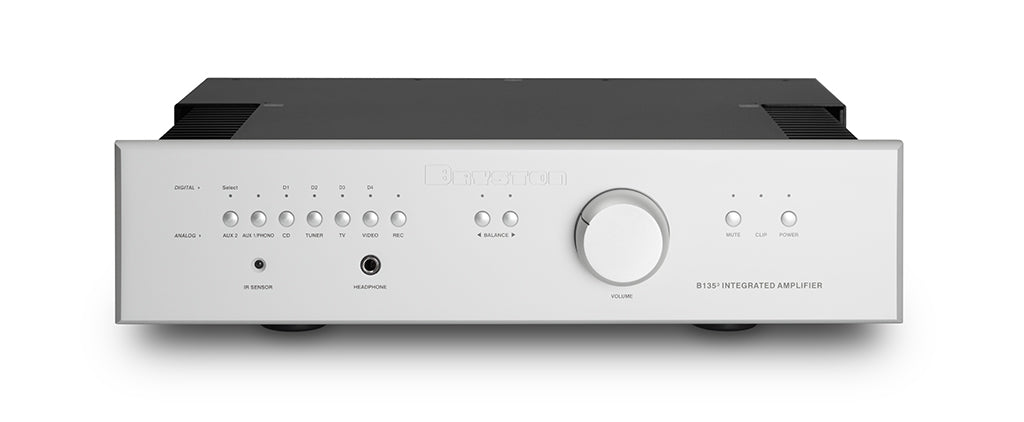

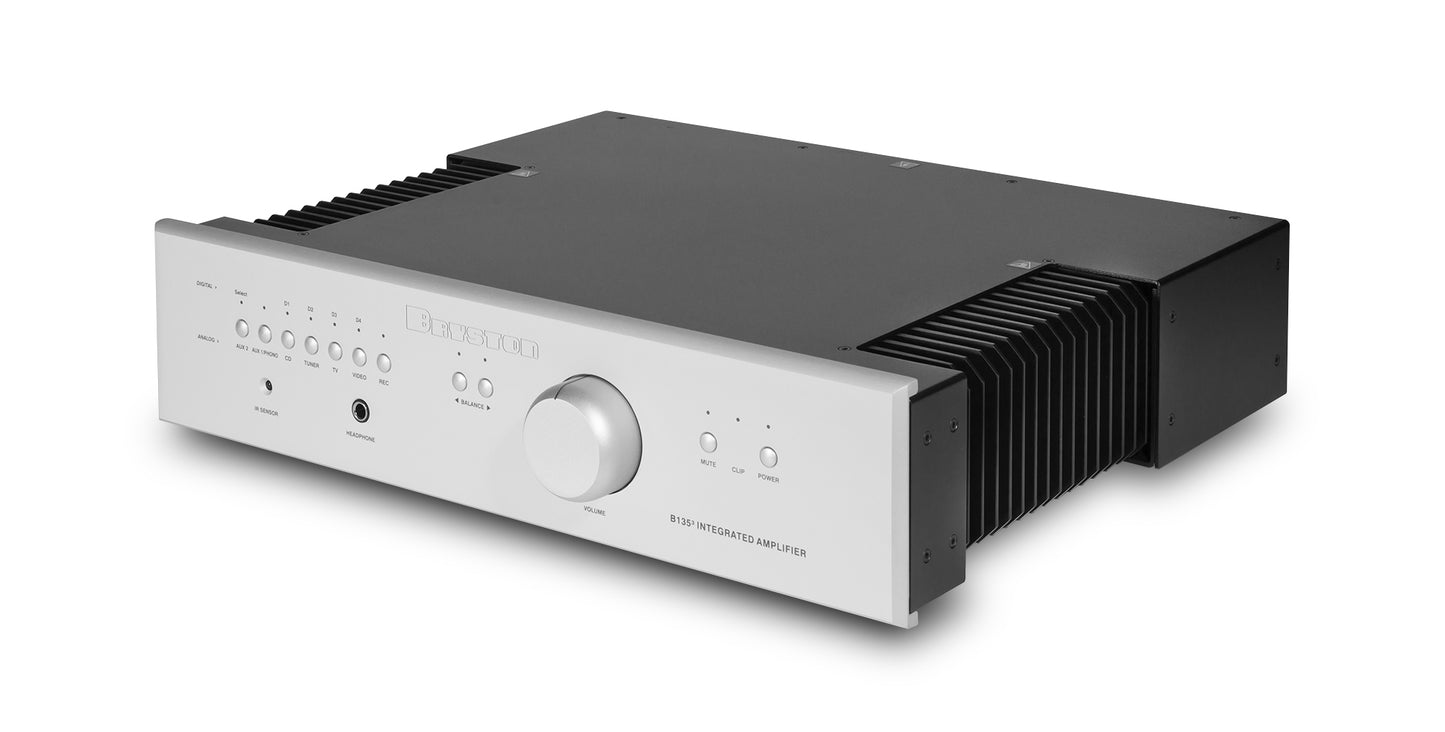

Bryston proves that integrated amplifiers give no ground to their separate counterparts. The B135 is literally constructed of the BP-17 preamplifier and 2.5B Cubed amplifier into a single chassis offering the best of both products without occupying extra space and costly interconnects. For those who wish to save money and space yet refuse to yield sound quality, the B135 Cubed Integrated Amplifier is a top choice.

  • 135W into 8 Ohms (180W into 4 Ohms)
  • Over 30,000 MFD of filter capacitance per channel
  • Three ultra-low-noise power transformers
  • Separate ground paths for Digital and Analog
  • Gold plated switch, contacts, and connectors
  • Pre-out/main in connectors
  • Convection cooled and housed in a fully aluminum chassis
  • RS-232 serial data port for remote control via Crestron, AMX or similar control systems

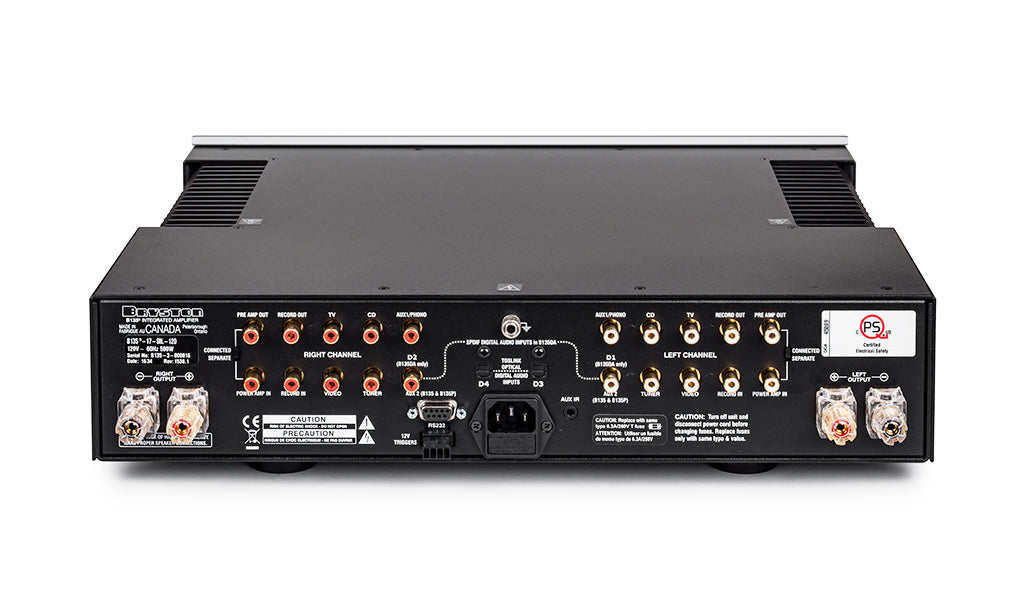

Inputs: 6x RCA Single Ended Pairs, 2x RCA Single Ended Pairs (Record In, Power Amp In), 2x Optical (TOSLINK)*, 2x SPDIF (RCA)*
Outputs: 2x RCA Single Ended Pairs (Record Out, Preamp Out), Speaker Terminals, ¼” Headphone Jack
Control: RS-232 (DB9), AUX IR, 2x 12V Output Triggers

Options:

  • Available with silver or black faceplate
  • 17” or 19” faceplate available (non-rack mountable)
  • Optional internal DAC or internal MM phono (see Accessories in Other Products)
  • BR2 remote control available (see Accessories in Other Products)

Specifications

Dimensions Inches: 17 or 19 W x 4.5 H x 15 D
Weight 27 lbs | 12 kg
Frequency Response: <1hz - 100khz: -3db
THD+N (20Hz-20kHz @ Rated Power, 8Ω): <0.005%
Power Output (per channel): 135W @ 8Ω | 180W @ 4Ω
Noise: RCA: <-109db
Input Impedance: Unbalanced 30kΩ
Inputs: 6 Analog Source Inputs (Optional MM replaces 1 analog input pair)
1 Tape Loop Input
Power Amp Inputs (accessible by flipping rear panel connected/separate switches)
Optional Digital Inputs: 2 ea. Toslink & 2 ea. RCA (combo with analog input pair)
Outputs: Left / Right 5 way binding post pair
Preamp Outputs and fixed level Tape Outputs
Headphone Output
