Alternating Current (AC), is a far-from-perfect power source. AC power technology is well over a century old and was never designed to meet the exacting standards of today’s high resolution audio-video components. AC noise is present at the utility source, and is then exacerbated by radio frequency noise that is induced (picked up by the AC power cord) and coupled to the component power supplies and to circuit ground. This creates distortion and low-level signal losses via the “masking effect.” Further, power amplifiers can require immense reserves of transient current for their power supplies to react to and then stabilize during dynamic audio passages. Most AC power cords and power conditioner-regenerators, though helpful to a point, are simply not up to the task.
Power amplifiers present a real challenge for any AC power source, as the transient current requirements (though short in duration) can be many times that of the average (RMS) current consumption. Power amplifiers are also unique from all other components in that the current draw is dynamic, not constant, and it changes with volume and audio signal content. Though many AC power cords may feature low DC resistance to allow for some of this requirement, the characteristic impedance of the AC cable is equally responsible for assuring uncompromised performance. Many premium AC cords constrict or compress the audio transient as their characteristic impedance restricts the transient current.
High-Purity Conductors: A carefully finessed combination of solid Perfect-Surface Silver (PSS) and solid Perfect-Surface Copper + (PSC+) conductors prevent strand interaction, a major source of ear fatiguing transient intermodulation distortion. The astonishingly smooth and pure Perfect-Surface Copper+ eliminates harshness and greatly increases clarity compared to OFHC, OCC, 8N and other premium coppers. Extremely high-purity Perfect-Surface Silver further minimizes distortion caused by grain boundaries, which exist within any metal conductor.
The astonishingly smooth and pure Perfect-Surface Copper further eliminates harshness and greatly increases clarity compared to OFHC, OCC, 8N and other premium coppers.

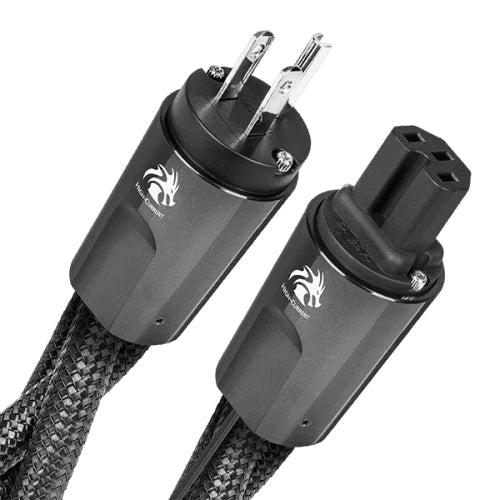

Uncompressed High-Current Transfer: With current capacity of 20 amps RMS @ 125VAC 50/60Hz (16 amps RMS @ 220-240VA 50/60Hz), Dragon/High-Current can withstand current transient peaks many times its continuous (average) RMS rating. This makes Dragon/High-Current ideally suited for a wide assortment of AC power conditioners, power regenerators, AC isolation transformers, and AC battery back-up devices, as well as any power amplifier, powered subwoofer, powered loudspeaker, powered receiver, or integrated amplifier.
Ground Noise-Dissipation Technology: AC Ground wires provide protection from current-wiring faults, but they also act as antennas. Thus, they are subject to induced radio frequency (RF) noise. This RF noise bypasses component power supplies and is typically coupled directly into a system’s most sensitive audio-video circuits. AudioQuest’s patented Ground-Noise Dissipation greatly reduces this distortion, yielding unprecedented levels of noise dissipation across the widest bandwidth (range) of radio frequencies possible. Our unique circuit-topology utilizes a common-mode phase-cancelling array, in concert with proprietary dielectric materials which provide additional differential linear filtering.
Dielectric-Bias System (DBS; US Pat #7,126,055): By creating a constant dielectric field for the cable’s primary capacitance field or dielectric, DBS assures extended bandwidth and more evenly filtered noise dissipation, eliminating the distortions and ringing that plague other cables even after years of use and so called “run-in time.” In addition, DBS assures that the RF Noise-Dissipation System works as linearly as possible.
Controlled for Correct Directionality: All drawn metal strands or conductors have a non-symmetrical, and therefore directional, grain structure. AudioQuest controls the resulting RF impedance variation so that noise is drained away from where it will cause distortion.
Note: Dragon/High-Current AC power cable is also well suited for audio/video source components and computer peripherals that consume low to moderate current. However, source components can be further optimized with the use of AudioQuest’s Dragon/Source AC power cables. Dragon/Source’s smaller conductors, profile, and enhanced Noise-Dissipation topology were designed to yield even greater levels of performance from source audio/video components.
Some gear might say they are 20 amp, but still use the 15-amp IEC connector. To determine which one you need for your application, take a look at this drawing of the two types of IEC connectors. Pick the one that matches the IEC socket on your gear.
