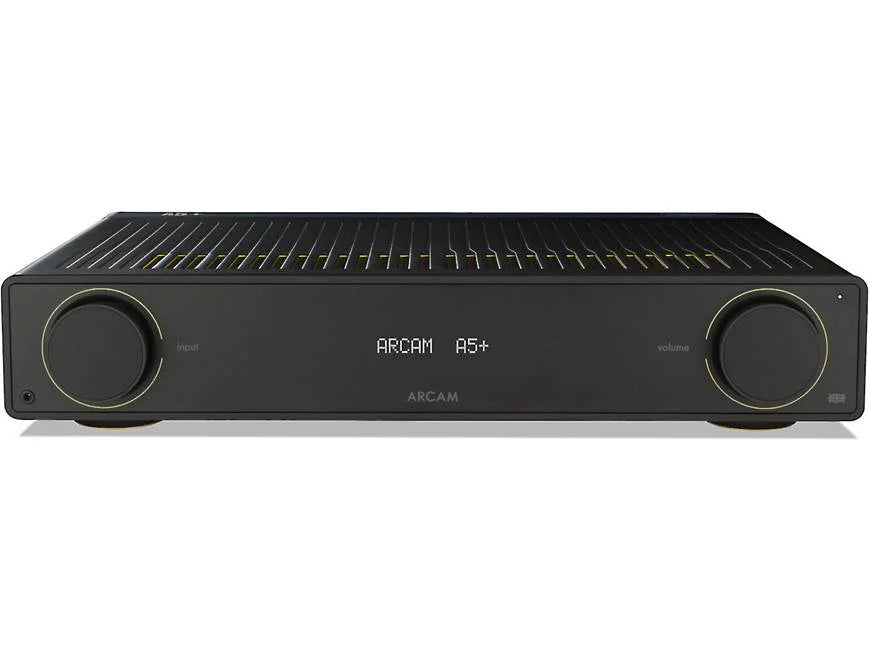

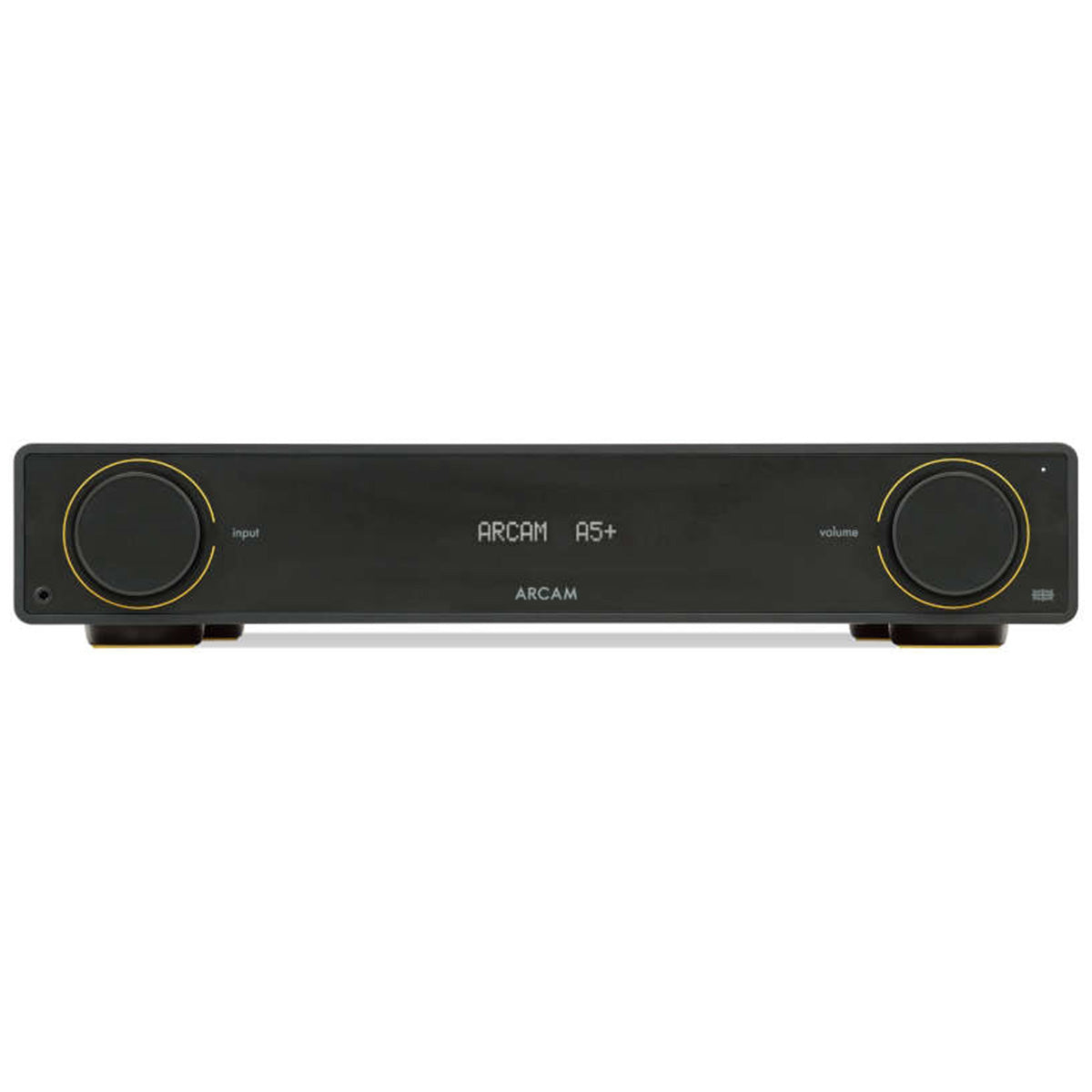

• Arcam A5+ Stereo integrated amplifier with built-in DAC, Bluetooth®, and Auracast-front view

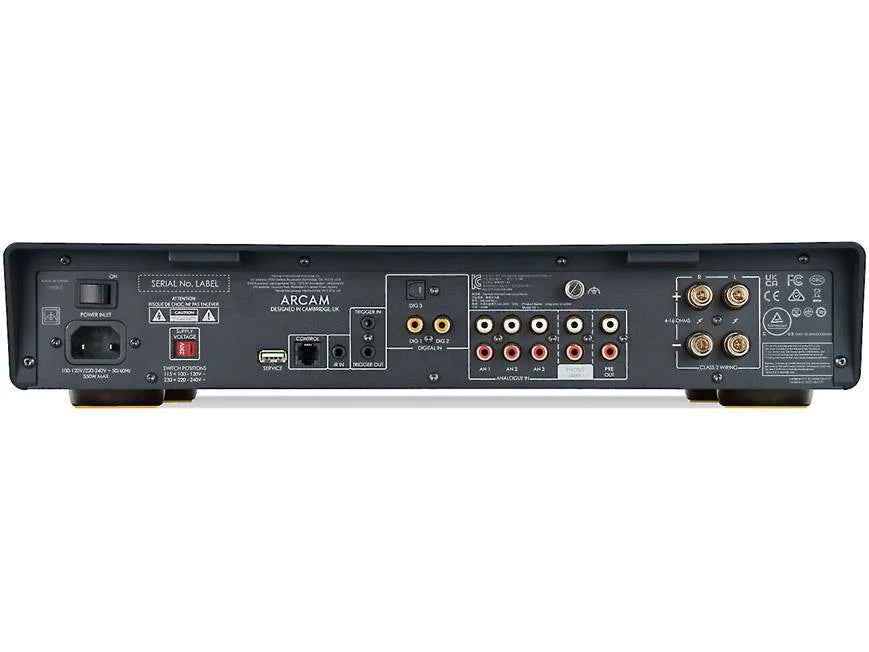

  • Arcam A5+ Stereo integrated amplifier with built-in DAC, Bluetooth®, and Auracast-rear view

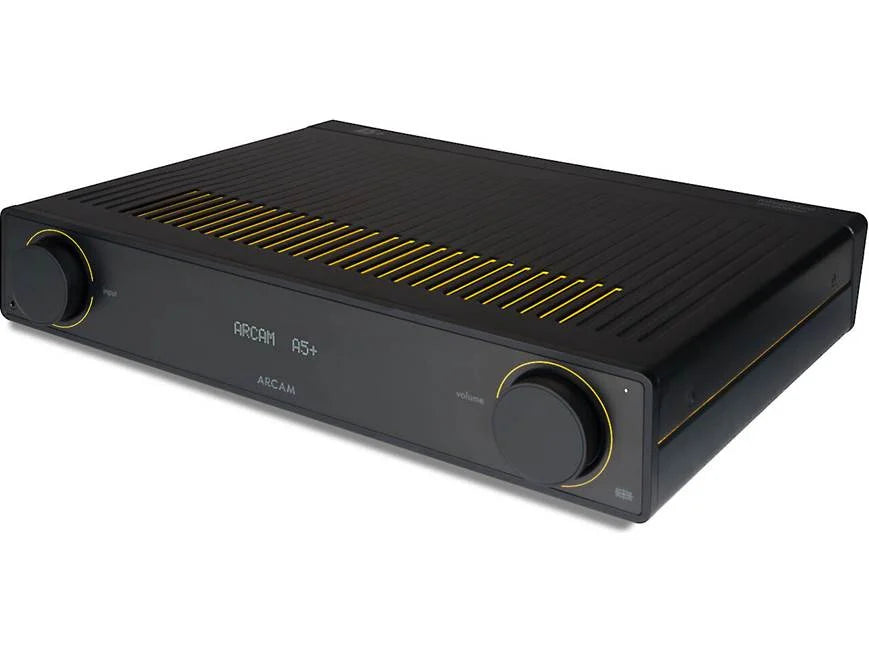

  • Arcam A5+ Stereo integrated amplifier with built-in DAC, Bluetooth®, and Auracast- angled front view

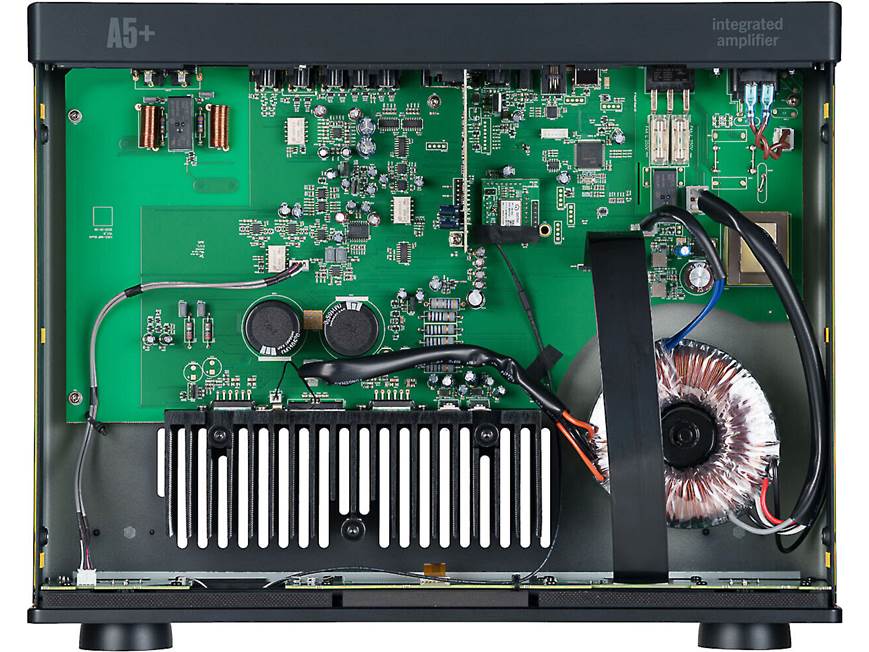

  • Arcam A5+ Stereo integrated amplifier-internal view
1 5

Arcam A5+ Stereo integrated amplifier with built-in DAC, Bluetooth®, and Auracast

PRICE:
$1,199.00 USD
$1,199.00 USD $1,199.00 USD
Sale Sold out

Shipping calculated at checkout.

CONDITION: New

description

Arcam A5+

The "A" in ARCAM stands for amplification, where ARCAM's expertise lies. The A5+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to their first product in 1976 — the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A5, ARCAM hasn't rested. Their engineering team pushed further to create the ARCAM A5+, an even better sounding and more versatile integrated amplifier.

The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.

With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.

  • ARCAM Class AB Amplification - provides brilliant musicality
  • 2x 50W Power Output - powers loudspeakers with ease
  • Wireless audio with Snapdragon Sound and Auracast built-in - for the best sound with the most convenience
  • Wired or Wireless Headphones - connect your headphones for quiet listening with, or without wires
  • Fine-tuned phono stage - ensures your records sound as detailed and engaging as possible
  • Plastic Free Packaging - for easy disposal of natural materials

Specifications

Model Arcam Radia A5+
Continuous power output (0.5% THD), per channel 2 channels driven, 20Hz - 20kHz, 8Ω 50W
2 channels driven, 1kHz, 4Ω 75W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.003%
Analogue Inputs Number of inputs 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
Frequency response 20Hz—20kHz ± 0.2dB
Phono (MM) Input Input impedance 47kΩ + 100pF
Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
Digital Inputs Supported Sample Rates (kHz): 192, 176.4, 96, 88.2, 48, 44.1
Bit depths (bit): 24, 16
Frequency response (filter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
Headphone Output Maximum output level (RMS) into 32Ω/300Ω: 2.5V/5V
Load range 16Ω - 2kΩ
Wireless Specifications Bluetooth Version - 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD and aptX Lossless, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power - 2,400 MHz to 2,483.5 MHz: <20dBm
General Mains voltage 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 350W
Power consumption (standby) <0.5W
Dimensions (W x D x H): 17 in. x 13.5 in. x 3.25 in. (431 x 344 x 83mm)
Weight (net): 17.6 lbs. (8kg)
Weight (packed): 24.3 lbs. (11kg)
Supplied Accessories Mains lead(s)
Remote control with 2 x AAA batteries
Quick Start Guide
Important Safety Instructions
