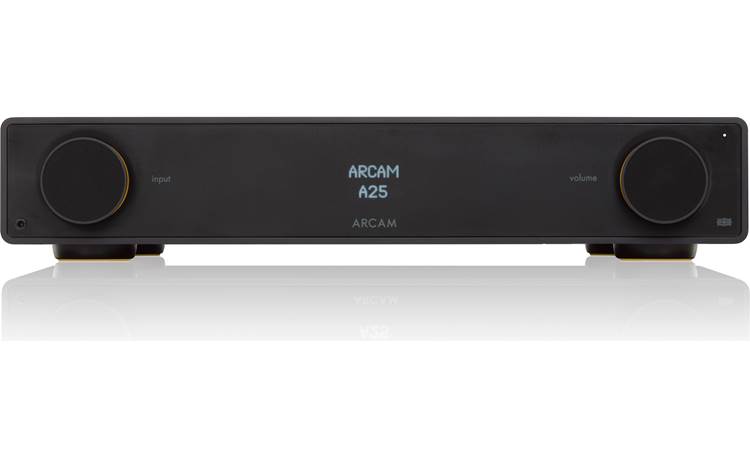

ARCAM A25

Sleek new look with powerful sound

Arcam components are known for their clear, spacious sound, so we're excited to try out the A25 integrated amplifier. It's the most feature-rich of the company's new line of Radia integrated amps, which sport a luxurious new visual style. It's got a solid build, too, with an aluminum chassis and chunky aluminum dials backlit in eye-catching yellow. But the real story is the hi-fi goodness that lies within.

Class G amplification and a superior DAC

Class G amplification provides super-clean Class A performance at low levels, and it uses efficient "rail-switching" technology to bring in a higher power supply with low distortion when necessary for more demanding dynamic peaks. It's a technology that gets high marks from our customers for its clean musicality. Your digital sources get audiophile-level treatment from the built-in high-performance ESS PRO DAC.

Convenient connections

The A25 gives you plenty of options for connecting music sources. There are multiple digital inputs, including Toslink optical, coaxial, and even a USB-C connection for playing high-res files from your computer. Three line-level stereo RCA inputs are available for your analog audio components or a separate DAC. For vinyl enthusiasts, there's a moving magnet phono input.

The A25 has built-in Bluetooth with high-res aptX™ Adaptive technology for streaming music via online services from compatible devices. Two-way directionality allows you to stream from the amp to compatible headphones or powered speakers.

For robust Wi-Fi streaming, you can add Arcam's matching ST5 network music player. Or use one of the digital connections to connect Arcam's matching CD player or your TV.

A stereo line-level preamp output lets you add a powered subwoofer or connect a separate amplifier.

Product highlights:

• 100 watts x 2 channels into 8 ohms (20-20,000 Hz) at .5% THD
• 165 watts x 2 channels into 4 ohms (1 kHz) at .5% THD
• efficient high-voltage Class G amplifier
• THD: 0.002% (80% power, 8 ohms at 1kHz)
• signal-to-noise ratio: RCA inputs 106dB, digital inputs 110dB
• frequency response: 20-20,000 Hz
• built-in ESS Sabre DAC (ES9280A PRO)
• plays high-resolution audio up to 32-bit/384 kHz or DSD up to DSD1024
• selectable voltage input
• remote control included

Inputs:

• Bluetooth (Version 5.2) input with high-res aptX Adaptive technology and AAC
  • two-way Bluetooth lets you stream music from compatible sources, and to compatible speakers or headphones
• 1 optical and 2 coaxial digital audio inputs (up to 192 kHz resolution)
• USB Type-C input for streaming from a compatible PC, Mac®, or Raspberry Pi
• 3 analog RCA line-level stereo inputs
• dedicated RCA phono input for moving magnet cartridges
• IR input for use with external controllers
• 12-volt trigger input and output
• USB Type-A input for software updates only

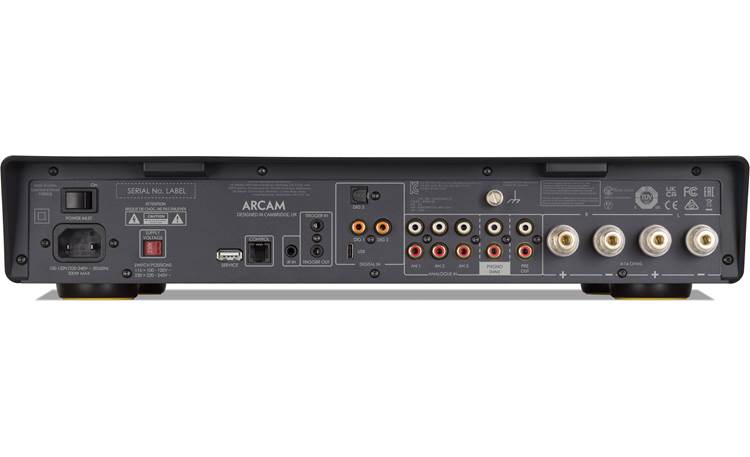

Outputs:

• 1 stereo RCA preamp output
• L/R speaker outputs with binding-post connectors
• front-panel 3.5mm headphone output
• comm port for integrated control with other Arcam components (sold separately)

Dimensions and warranty:

• 17-1/16"W x 3-5/16"H x 14-5/16"D
• weight: 19.84 lbs.
• warranty: 5 years
