description

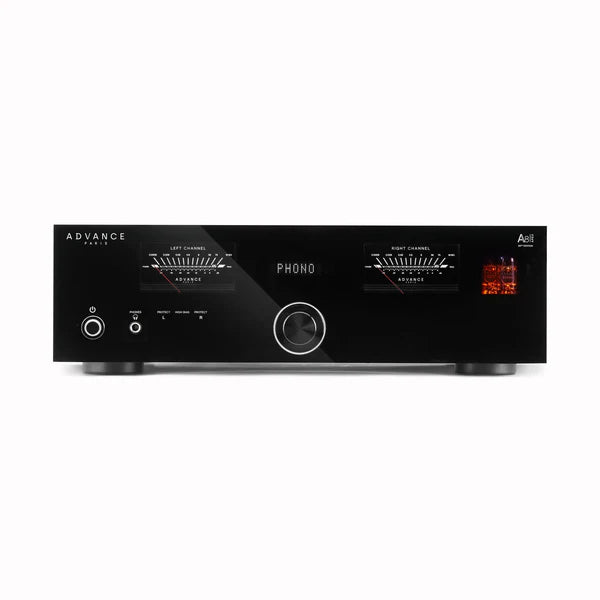

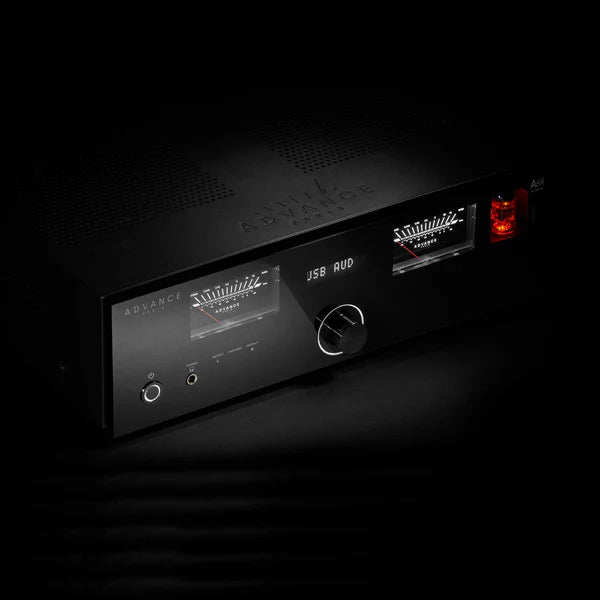

Advance Paris A8 APEX Integrated Amplifier

The APEX range is the result of the Advance Paris engineering team’s efforts to push the boundaries of our Classic range in terms of performance and functionality.

The A8 APEX features the hybrid design of our flagship integrated amplifiers in a more compact format, but still delivers high power (76W in Class A/B under 8 Ω) and the same
musicality that is recognized worldwide.

To celebrate the brand’s 30th anniversary, we are presenting a special limited edition 30TH EDITION with a black finish and white VU meters.

The A8 APEX combines timeless design with modern technology to deliver power, musicality and ease of use.

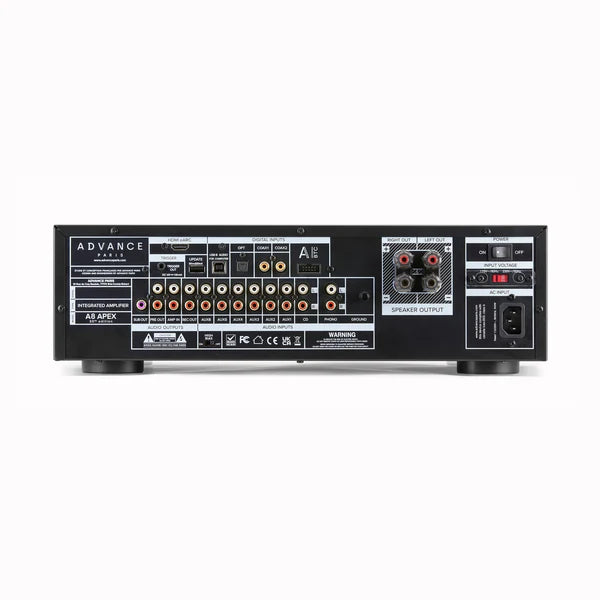

Connections & sources

• 8 analogue RCA inputs, including 1 MM phono
• 4 digital inputs: 1 optical, 2 coaxial, 1 USB for computer
• Bluetooth aptX AD - LL option (optional A-BTC module)
• 1 HDMI eARC socket with A8 APEX start-up when the TV is switched on and volume control is engaged.


Functions & settings

• Settings: loudness, bass, treble, balance
• Automatic standby adjustable from 5 to 60 minutes
• Trigger OUT to synchronize the switching on/off of a separate power amplifier•
• Connection possible for 1 subwoofer + separate PRE-OUT output and AMP-IN input
• Fixed REC-OUT output for recorder (cassette, MD, etc.)


Advanced options

• High-Bias switch: activates double Class A bias to enjoy Class A at higher power levels

Key features

• Preamplifier with 2 ECC81/12AT7 tubes offering warm sound and great musicality.
• 2x76W Class A/B amplifier combining power and listening refinement.
• High-Bias function activating double Class A bias to enjoy Class A at higher power.
• Bluetooth aptX AD - LL option (A-BTC module): allows you to send music from your smartphone/tablet/computer to the A8 APEX

TECHNICAL SPECIFICATIONS

• Output power 8Ω 76W (THD+N 1%, 1kHz, 2 channels driven)
• Output power 8Ω (20Hz - 20kHz, THD+N inf. to 0.07% 70W (2 channels driven)
• Output power 4 Ω 110W (THD+N 1%, 1kHz, 2 channels driven)
• Output power 4Ω (20Hz - 20kHz, THD+N inf. to 0.07% 100W (2 channels driven)
• Frequency response (+/-1dB) 20 Hz > 80 kHz (16W, 8 Ω)
• Distortion 0.03% (1 kHz, 52W, 8 Ω)
• Signal-to-noise ratio 100dB (1 kHz, 52W, 8 Ω)
• Transformer type/power Toroïdal / 240VA
• DAC ESS9018
• Digital inputs Optical: 24-bit - 192 kHz PCM
  • Coaxial: 24-bit - 192 kHz PCM
  • USB audio: 24-bit/192 kHz PCM - DSD64 - DSD128
  • HDMI eARC: PCM Stereo
  • A-BTC input For A-BTC Bluetooth receiver (optional)
• Analogue inputs RCA LINE level (7x) - MM PHONO level (1x) + GROUND
• Analogue outputs RCA: REC-OUT (x1), PRE-OUT (x1), SUB-OUT (x1)
• Headphone jack 6.35mm jack
• High Bias ON/OFF switch
• Update Via USB key on ‘UPDATE’ port
• Speaker terminals Screw terminals compatible with bare cable, spade and banana plugs
• Remote control Infrared, REM-19, compatible with A8 APEX, A10 APEN, A12 APEX, and ACD APEX
• Trigger jack (1x) Output, 12V
• Product dimensions (WxHxD in cm) 43x13.2x36.3
• Packaging dimensions (WxHxD in cm) 54,5x26,5x46
• Gross weight (kg) / Net weight (kg) 12,5 / 9,4
