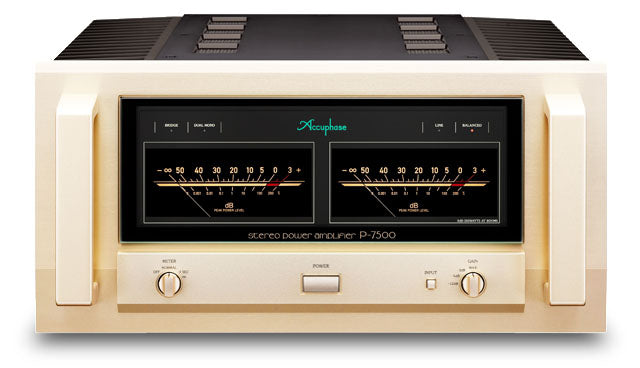

Accuphase P-7500 Class AB Stereo Power Amplifier

The P-7500 is our flagship model Class AB stereo power amplifier that provides supreme driving performance. The power amplification stage uses a 10-parallel push-pull power transistor architecture, providing a rated output power of 300 W / 8 ohms that vastly exceeds that of conventional models. Boasting an impressive signal-to-noise ratio of 130 dB and a damping factor of 1,000, it can effortlessly drive massive speakers and create musical recreations overflowing with energy. The P-7500 brings out the best of any speaker, allowing you to enjoy never-before experienced soundscapes.

• Large output 300 W / 8 ohms, 600 W / 4 ohms, 900 W / 2 ohms
• 10-parallel push-pull output stage power transistors
• Instrumentation amplifier principle
• Current feedback amplification circuits
• Balanced Remote Sensing
• MCS+ circuit and current feedback topology in amplification stage
• High damping factor of 1,000
• Speaker output protection
• Highly responsive large-scale power meters
• Support for bi-amping and bridged mode connection

Continuous Average Output Power: 300 watts/ch (8 ohms), 600 watts/ch (4 ohms), 900 watts/ch (2 ohms, music signal) / Bridged Operation: 1,200 watts (8 ohms), 1,800 watts (4 ohms, music signal)
Frequency Response: 0.5 Hz – 160 kHz +0 dB, –3.0 dB
Intermodulation Distortion: 0.01% or less
Damping Factor: 1,000 or more (JEITA, 8-ohm load, 50 Hz)
S/N Ratio: 130 dB (GAIN: MAX), 135 dB (GAIN: –12 dB) (A-weighted)
Rated Input: 1.95
