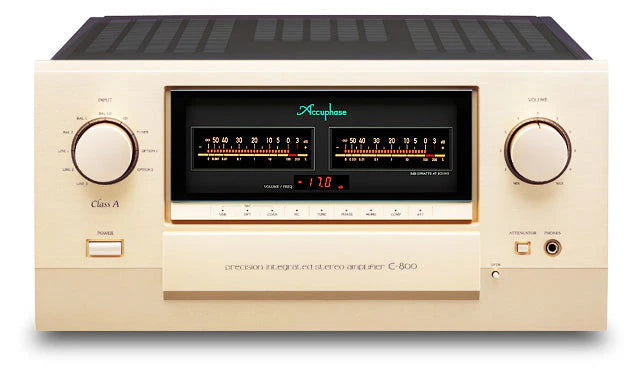

Accuphase E-800S Integrated Amplifier

Class-A PRECISION INTEGRATED STEREO AMPLIFIER

The E-800S is our flagship model that incorporates the full breadth of Accuphase's accumulated knowledge on integrated amplifiers. The preamplifier section incorporates a Balanced AAVA type volume control, while the power amp stage relies on an instrumentation amplifier principle and six-fold parallel push-pull configuration using power MOS-FETs driven in Class A, driving any loudspeakers to higher dimensions of sound. Enjoy the blissful acoustic space provided during playback with the E-800S.

• Integrated amplifier with fully balanced configuration extending from input to output

• Balanced AAVA type volume control
• High-accuracy, high-rigidity volume sensor construction
• Power amplification stage configured as instrumentation amplifier
• Six-fold parallel push-pull configuration of power MOS-FETs driven in Class A
• Linear power progression of 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms
• 300 W output into 1-ohm load (music signals)
• High damping factor of 1000

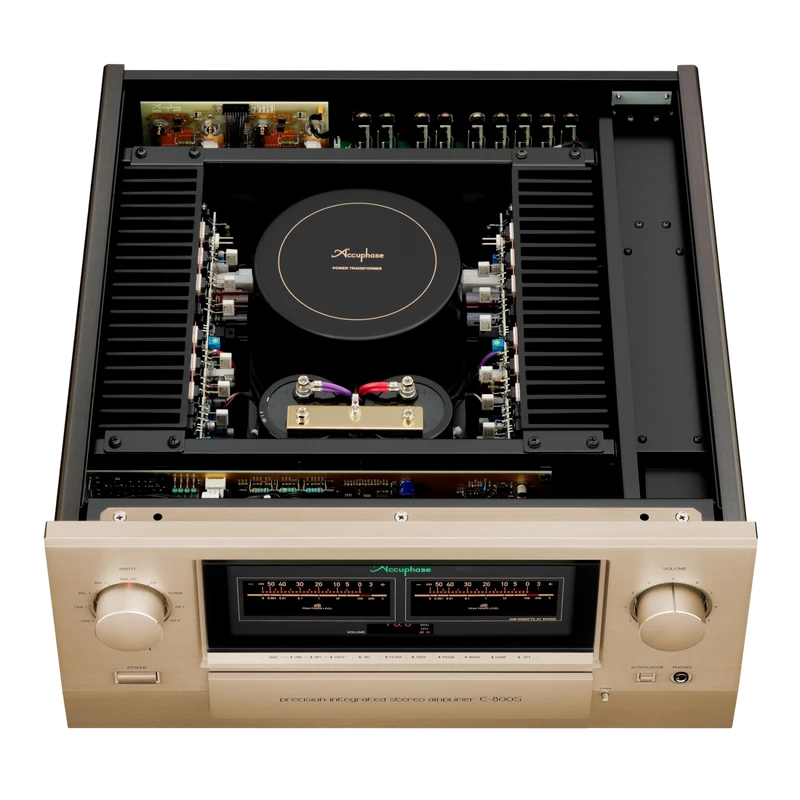

• Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
• Protection circuitry using MOS-FET switches

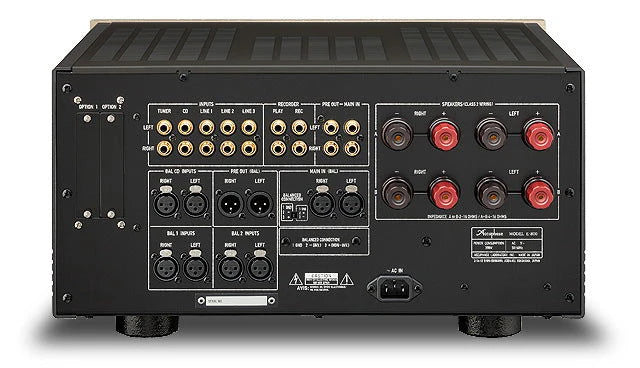

• Three sets of balanced inputs
• Dedicated, high-quality headphone amplifier with discrete circuitry
• Speaker output protection circuit guards against short-circuiting
• High-carbon cast iron insulators for superior vibration damping
• Two expansion slots for option boards
