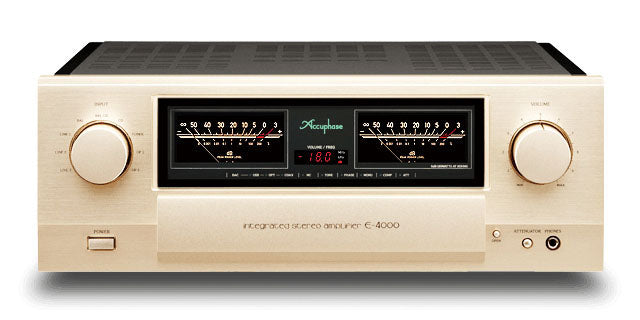

Accuphase E-4000 Class AB Integrated Stereo Amplifier

The E-4000 integrated amplifier has emerged from separate amplifier technologies. The preamplifier section features AAVA using ANCC to allow for volume adjustments that maintain high levels of vibrancy. The power amp section employs balanced transmission utilizing the instrumentation amplifier principle to drive noise suppression to its limit. The E-4000 is equipped with a four-fold parallel push-pull configuration of power transistors driven in Class AB in the output stage to extract every last ounce of potential from the speakers and create soundscapes filled with subtlety.

• Revolutionary AAVA volume control
• Four-fold parallel push-pull configuration of power transistors driven in Class AB
• High power output of 180 watts into 8 ohms / 260 watts into 4 ohms
• Power amplification stage configured as instrumentation amplifier
• High damping factor of 800
• Strong power supply with massive high-efficiency toroidal transformer
• High-voltage, large filtering capacitors
• Protection circuitry using MOS-FET switches

Specifications

Rated Output Power: 180 W/ch (8 ohms, both channels driven, 20 – 20,000 Hz, THD 0.05%)

Frequency Response (1 W output): 3 Hz – 150 kHz +0 dB, –3 dB

Damping Factor: 800 (JEITA, 8-ohm load, 50 Hz)

Input Sensitivity: 190 mV (BALANCED, LINE), 1.51 V (MAIN IN), 0.126 mV (AD MC), 2.5 mV (AD MM)

S/N Ratio: 102 dB (BALANCED), 109 dB (LINE), 125 dB (MAIN IN
