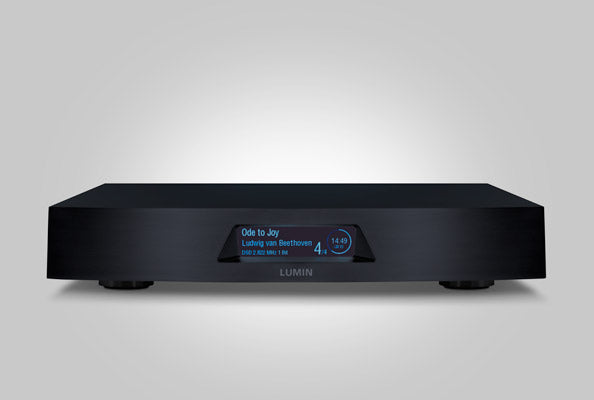

After years of requests from existing high-end DAC owners, the LUMIN team have taken the finest components from it's flagship model and developed them specifically for digital processing and output. Using a new dedicated LUMIN U1 processor adds upsampling and downsampling for every supported format – all the way from 44.1kHz to DSD128 and DXD – providing maximum DAC compatibility and optimization.

Features

• Transport-only unit based on the award-winning LUMIN S1
• 5 types of digital audio output including new USB
• DSD128 5.6MHz PCM 44.1–384kHz 16–32bit
• Native Tidal & Qobuz support

Specification

• DSD Support: Up to DSD128 5.6MHz, 1-bit
• Upsampling and downsampling rates & bit depths: Upsampling and downsampling to and from any supported rate including DSD128 and 384kHz PCM
• DIGITAL Outputs:
  • 2x USB: DSD128, 5.6MHz, 1bit, Stereo or PCM 44.1khz–384kHz, 16–32bit
  • Optical, Coaxial RCA, Coaxial BNC & AES/EBU: DSD (DoP, DSD over PCM) 2.8MHz, 1bit or PCM 44.1kHz–192kHz, 16–24bit
• Power Supply:
  • External dual-toroidal
  • Available in 240V and 110V versions

• Lumin (solid aluminium chassis):
• 350mm (W), 345mm (D), 60mm (H), 8kg

• Dual-toroidal PSU: 100mm (W), 315mm (D), 55mm (H), 2kg

SPECIFICATIONS

• Streaming Protocol:

  • UPnP AV protocol with audio streaming extension
  • Gapless Playback
  • On-Device Playlist

• Supported Audio File Formats:

  • DSD Lossless:

    • DSF (DSD), DIFF (DSD), DoP (DSD)

  • PCM Lossless:

    • FLAC, Apple Lossless (ALAC), WAV, AIFF

  • Compressed (lossy) Audio:

    • MP3, AAC (in M4A container)

• Supported Audio Sample Rates, Bit Depths, Number of Channels:

  • PCM, 44.1kHz - 384kHz, 16 - 32bit, Stereo
  • DSD, 2.8MHz, 1bit, Stereo

• Upsampling rates & bit depths:

  • DSD upsampling option for all files up to 96kHz

• Supported Control Devices:

  • All models of Apple iPad (v2 or later). iOS 5.0 or later required. Full Retina Display support.

• App Features:

  • High-resolution artwork. Artwork caching. AirPlay compatibility. Multiple-tag handling. ‘Composer’ tag support. Find & Filter. Tag browsing.

• Input:

  • Ethernet Network 100Base-T
  • USB storage, flash drive, USB hard disk (Single-partition FAT32, NTFS and EXT2/3 only)

• Outputs:

  • Analog Audio:

    • XLR balanced, 4Vrms, pin 2 Hot
    • RCA unbalanced, 2Vrms

  • Digital Audio:

    • BNC SPDIF:

      • PCM 44.1kHz-192kHz, 16-24bit
      • DSD (DoP, DSD over PCM) 2.8MHz, 1bit

• Finish:

  • • Raw brushed aluminium
